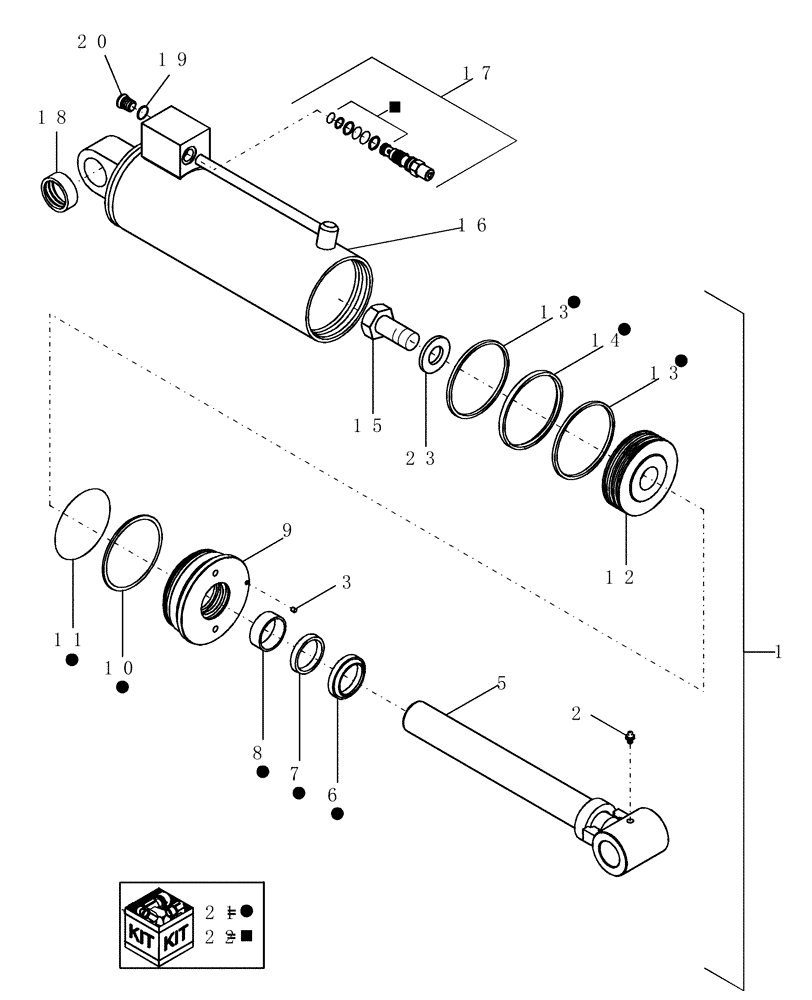

Запчасти Case IH 1200PT (A.10.A[14]) - HYDRAULIC CYLINDER - 87463263 A - Distribution Systems

1

87463263

HYDRAULIC CYLINDER

5 1/2" x 12"

1шт.

1

84227100R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER (11/01-7/08), Reman for New PN 87463263

1шт.

1

84227100C

CORE-HYD CYLINDER

Return Number

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

3

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1шт.

5

87463264

PISTON ROD

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON

1шт.

Included in repair kit 87463312

1шт.

7

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 87463312

1шт.

8

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87463312

1шт.

9

87418435

HEAD

cylinder front

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER BACKUP

1шт.

Included in repair kit 87463312

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87463312

1шт.

12

87463265

PISTON

5 1/2" dia cyl

1шт.

13

NSS

NOT SOLD SEPARAT

5 1/2 DIA CYL

2шт.

Included in repair kit 87463312

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, PISTON

1шт.

Included in repair kit 87463312

1шт.

15

87384582

BOLT

1 1/8"-12 x 3" GR8

1шт.

16

NSS

NOT SOLD SEPARAT

TUBE, HYD CYLINDER W/CLEVIS

1шт.

17

384836A1

BALANCE VALVE

assembly counterbalance

1шт.

18

87437043

BUSHING

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

Includes O-Ring

1шт.

21

87463312

SEAL KIT

lift cylinder

1шт.

22

384837A1

SEAL KIT

counterbalance valve for use with sun

1шт.

23

87387718

WASHER,1.25" ID x 2.25" OD x 0.16" Thk

1 1/4"id 2 1/4" .136" HTS

1шт.
