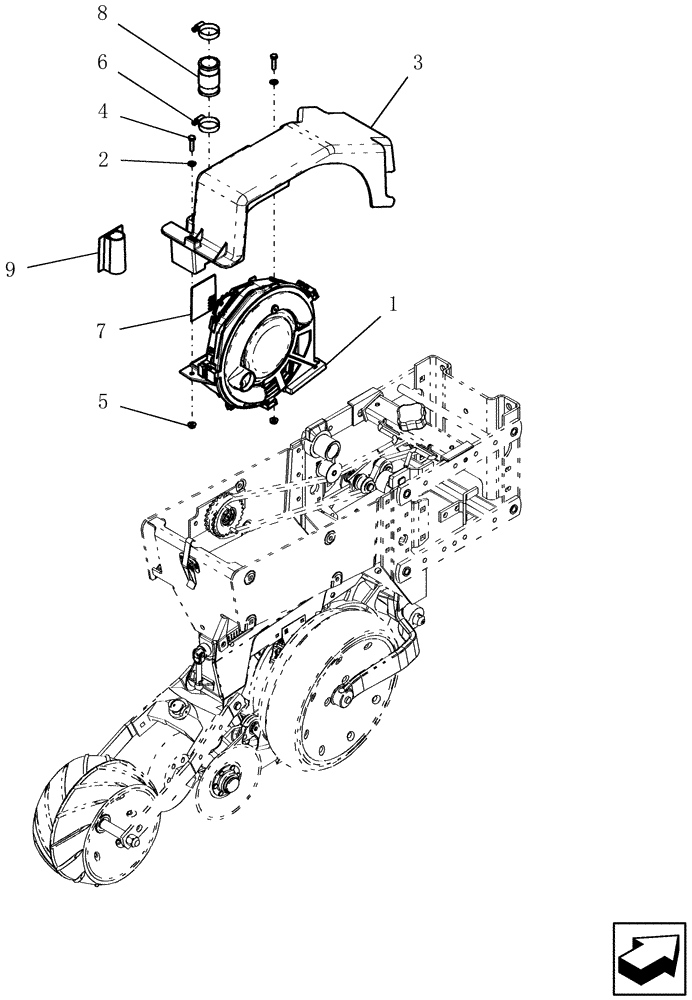

Запчасти Case IH 1200PT (L.10.E[01]) - BULK FILL - MINI HOPPER ON ROW UNIT L - Field Processing

1

NSS

NOT SOLD SEPARAT

SEED METER ASSY.

1шт.

2

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

3

411435A1

MANIFOLD

hopper bulk fill mini

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

7

443746A1

SCREEN

mini-hopper

1шт.

8

449129A1

COUPLING

seed hose

1шт.

Used on 12/23 row 23 and 16/31 row 31 Only

1шт.

8

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od, Start Serial: CBJ022252

1шт.

Not used on 12/23 row 23 and 16/31 row 31 only

1шт.

8

449129A1

COUPLING

seed hose, Serial Range: -CBJ022251

1шт.

9

87744280

ADAPTER

mini hopper overflow

1шт.

Use as required

1шт.
