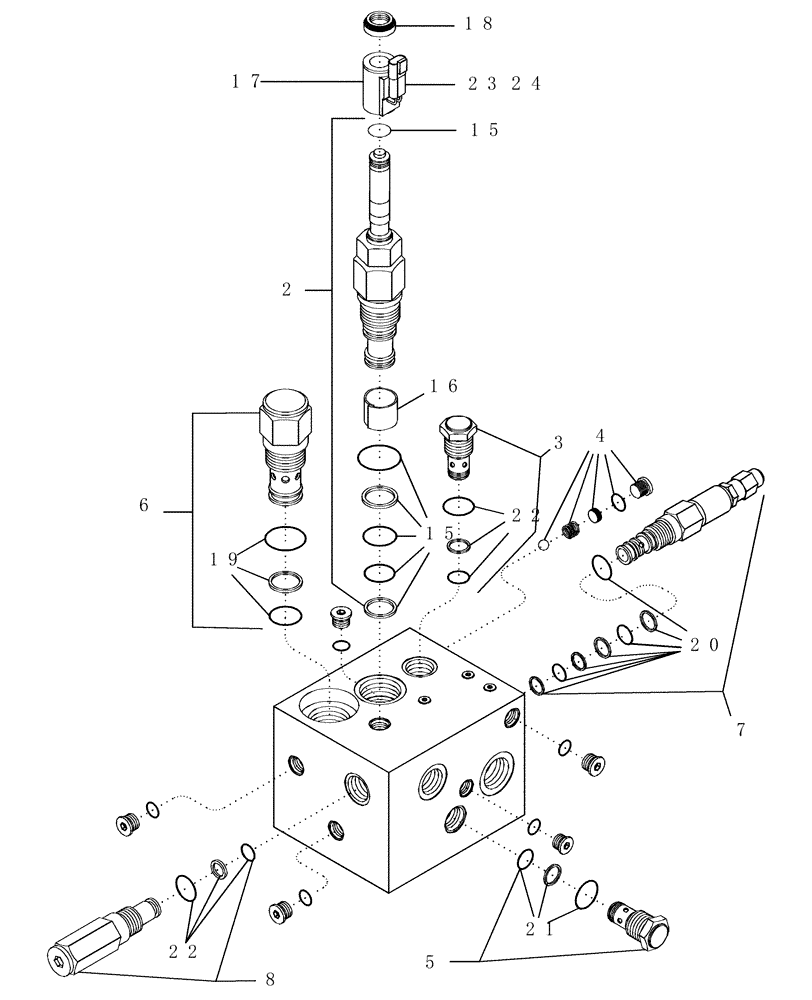

Запчасти Case IH 1200PT (L.10.D[14]) - BULK FILL - 36 GAL PTO PUMP - VALVE ASSEMBLY L - Field Processing

0

431468A1

VALVE

assembly bulk fill

1шт.

2

304495A3

VALVE

cartridge, flow control

1шт.

304495A3R

REMAN-HYD VALVE

1200PT (11/01-7/08)

1шт.

304495A3C

CORE-VALVE HYD

Return Number

1шт.

84537688R

REMAN-HYD VALVE

1200PT (11/01-7/08), Reman For New P/N 304495A3

1шт.

84537688C

CORE-VALVE HYD

Return Number

1шт.

3

86511474

CHECK VALVE

Coast

1шт.

4

1341811C1

SPRING-CHECK

REPAIR KIT sense check

1шт.

5

304421A1

VALVE

flow regulator

1шт.

6

335894A1

VALVE

flow limiter

1шт.

7

304420A1

VALVE

assembly unloading differential pressure sensing

1шт.

Used for the 36 gpm pump kit

1шт.

8

304419A1

VALVE PRESSURE RELIE

assembly

1шт.

Used for the 36 gpm pump kit

1шт.

15

304499A1

SEAL KIT

seal, flow control cartridge

1шт.

16

324489A1

SCREEN

proportional valve

1шт.

17

188105A1

SOLENOID

coil

1шт.

18

188106A1

NUT

retaining, Serial Range: coil-stem

1шт.

19

1288954C1

SEAL KIT

1шт.

20

S301087

SEAL KIT

differential pressure compensator

1шт.

21

304418A1

SEAL KIT

seal, flow regulator

1шт.

22

86508168

SEAL KIT

Relief Valve

2шт.

23

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

24

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.
