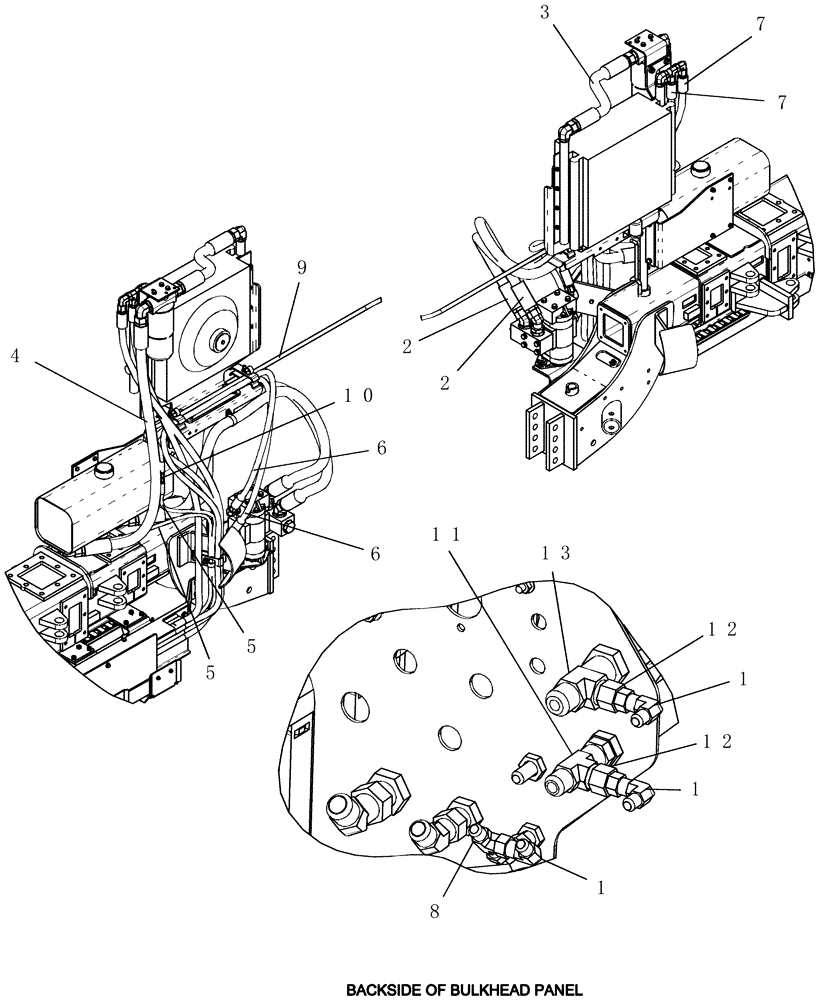

Запчасти Case IH 1200PT (L.10.D[13]) - BULK FILL - 36 GAL PTO PUMP HOSE DETAILS L - Field Processing

1

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

3шт.

2

426727A1

HYDRAULIC HOSE,31.5mm ID x 1880mm L, SAE 100R4

1 1/4" x 74" fl

2шт.

3

294178A1

HYDRAULIC HOSE

1 1/4" x 25.8" fl

1шт.

4

87438126

HYDRAULIC HOSE,31.50 mm ID x 1350.00 mm, SAE 100R4 Class 4

1 1/4" x 53" fl

1шт.

5

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

2шт.

6

426942A1

HYDRAULIC HOSE

5/8" x 354" fl

2шт.

12/23 row planter

1шт.

6

426728A1

HYDRAULIC HOSE,16mm ID x 10300mm L

5/8" x 405" fl

2шт.

16/31 row planter

1шт.

7

426943A1

HYDRAULIC HOSE,19mm ID x 8150mm L

3/4" x 320" fl

2шт.

12/23 row planter

1шт.

7

426732A1

HYDRAULIC HOSE,19mm ID x 9400mm L

3/4" x 370" fl

2шт.

16/31 row planter

1шт.

8

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

9

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

10

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

11

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

12

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

13

86632548

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.
