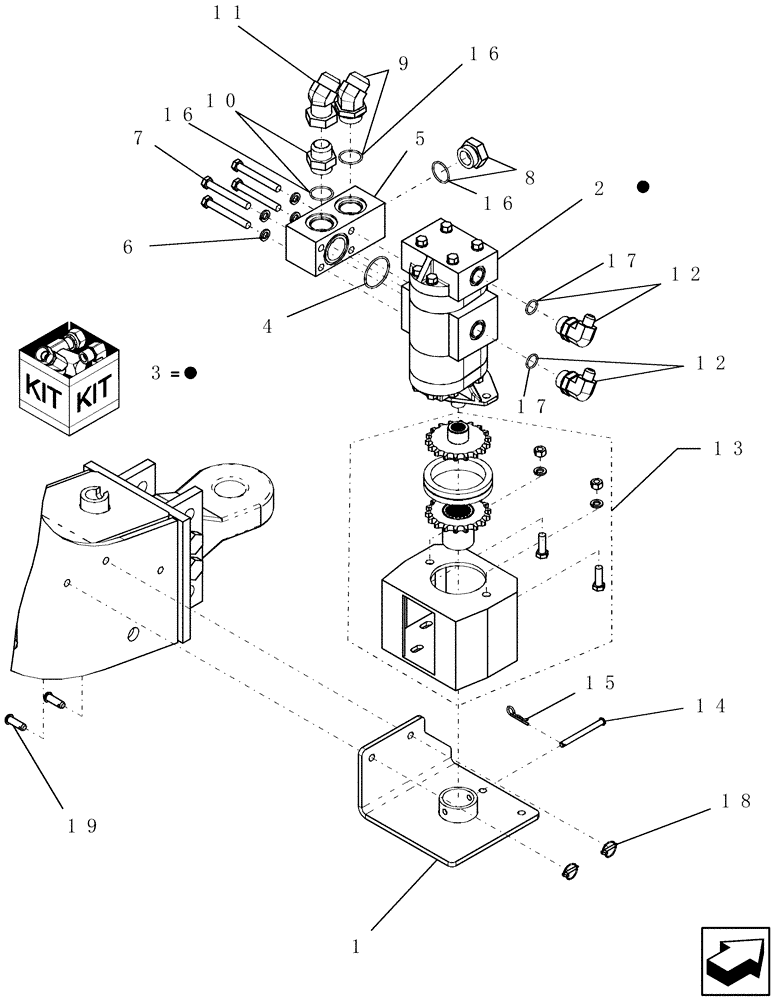

Запчасти Case IH 1200PT (L.10.D[12]) - BULK FILL - 36 GAL PTO PUMP HIGH FLOW PTO PUMP AND STORAGE BRACKET L - Field Processing

1

87442001

BRACKET

PTO pump storage

1шт.

2

87432748

PUMP

2 section

1шт.

87432748R

REMAN-HYD PUMP

1200PT Pivot Transport ASM

1шт.

87432748C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

310572A1

SEAL KIT

shaft pto pump

1шт.

4

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

5

303848A1

MANIFOLD

pump inlet

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

8

86624101

PLUG,Hex Hd, 1 5/8"-12 ORB

1шт.

Includes O-Ring

1шт.

9

218-5141

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

1шт.

Includes O-Ring

1шт.

10

570180

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

1шт.

Includes O-Ring

1шт.

11

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

1шт.

12

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

2шт.

Includes O-Ring

1шт.

13

PL

PROCURE LOCALLY

PUMP DOCTOR KIT SUPPLIED FROM ROWE MFG

1шт.

14

439-5666

HEADED PIN,9.53mm OD x 104.78mm L

1шт.

15

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

1шт.

16

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

3шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

18

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

2шт.

19

86624070

HEADED PIN,12.7mm OD x 38.1mm L

2шт.
