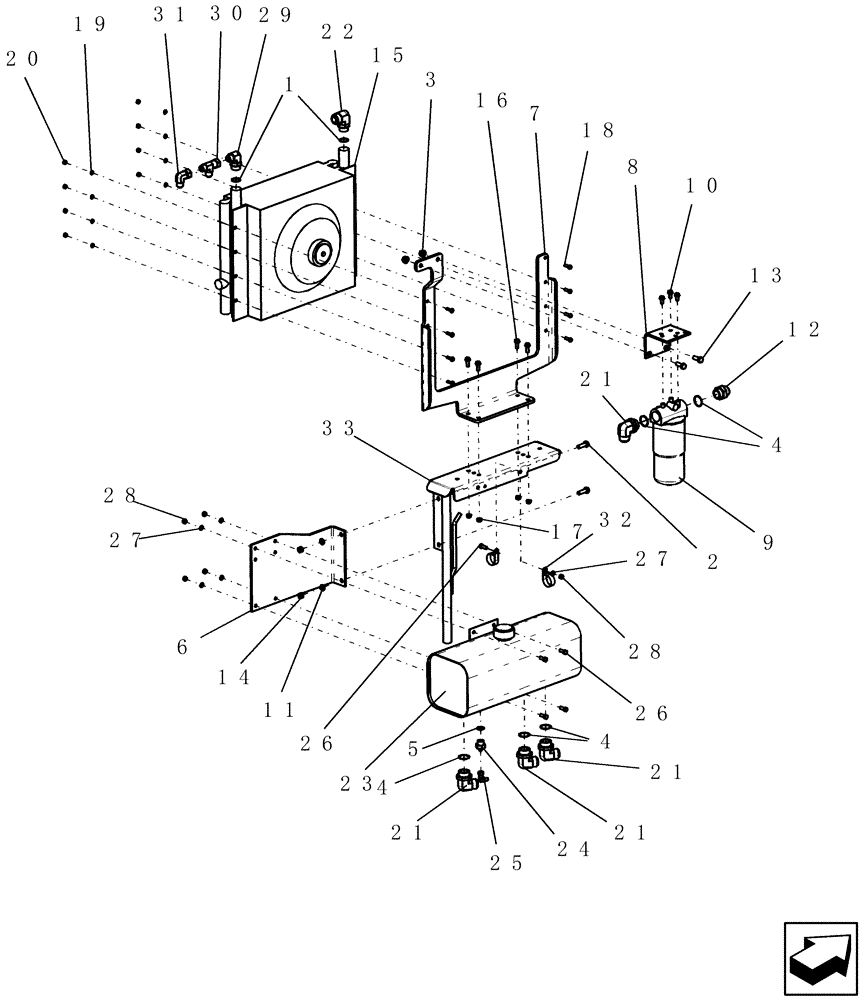

Запчасти Case IH 1200PT (L.10.D[11]) - BULK FILL - 36 GAL PTO PUMP RESERVOIR & COOLER DETAIL L - Field Processing

1

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

3

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

4

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

5шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

87432175

BRACKET

support reservoir

1шт.

7

87432886

BRACKET

PTO cooler mounted

1шт.

8

127715A5

SUPPORT

filter assembly

1шт.

9

87432158

FILTER ASSY

filter and head

1шт.

Includes filter element

1шт.

9

87432159

ELEMENT

filter

1шт.

10

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

3шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

570180

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

1шт.

Includes O-Ring

1шт.

13

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

14

280431

NUT,1/2"-13, G5

2шт.

15

87432160

OIL COOLER

PTO

1шт.

15

355955A1

HARNESS

cyclo cooling

1шт.

Not Shown

1шт.

16

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

17

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

18

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

19

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

21

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

4шт.

Includes O-Ring

1шт.

22

87010672

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

Includes O-Ring

1шт.

23

87432193

RESERVOIR

6.5 gallon

1шт.

Includes cap and screeen

1шт.

23

129575A1

CAP

breather with dipstick

1шт.

Not Shown

1шт.

23

87435908

SCREEN

reservoir

1шт.

Not Shown

1шт.

24

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

Includes O-Ring

1шт.

25

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

28

9628503

NUT,3/8"-16, G5

5шт.

29

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

Includes O-Ring

1шт.

30

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

31

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

32

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

33

427941A4

SUPPORT

hose holder

1шт.
