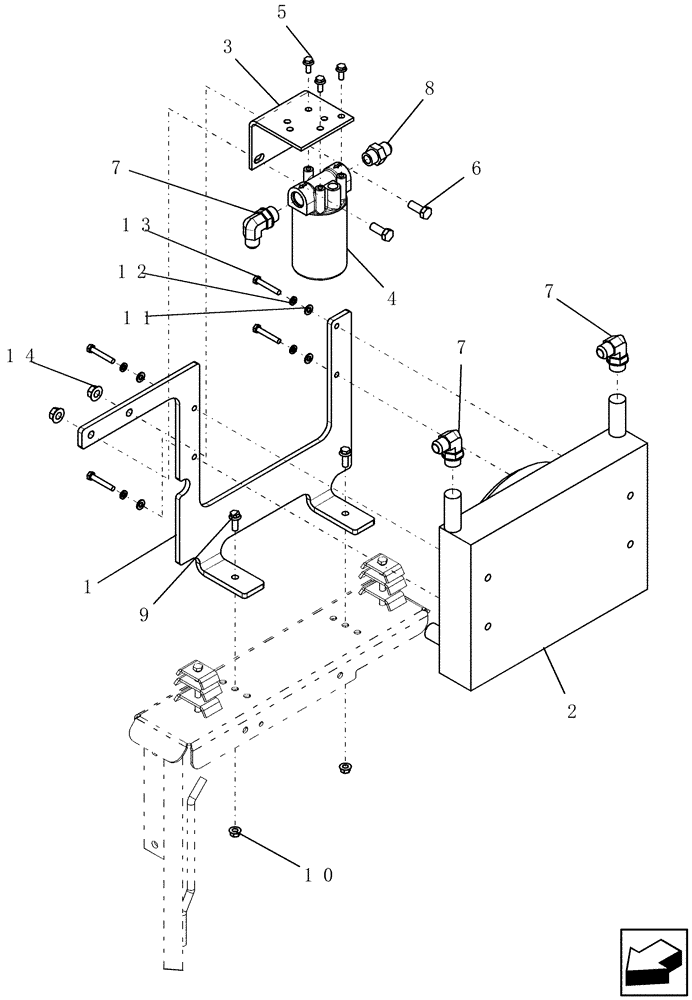

Запчасти Case IH 1200PT (L.10.D[10]) - BULK FILL - PTO 12 ROW & 16 ROW - COOLER DETAIL (BSN CBJ022057) L - Field Processing

1

441814A1

BRACKET

PTO cooler

1шт.

2

409312A1

OIL COOLER

2 pass with electric fan

1шт.

3

127715A5

SUPPORT

filter assembly

1шт.

4

87404509

FILTER ASSY

includes head

1шт.

4

87404510

FILTER

spin on element

1шт.

5

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

6

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

6шт.

Includes O-Ring

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

9

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

2шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

11

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

4шт.

12

80681

LOCK WASHER,5/16"

4шт.

13

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

4шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

6шт.
