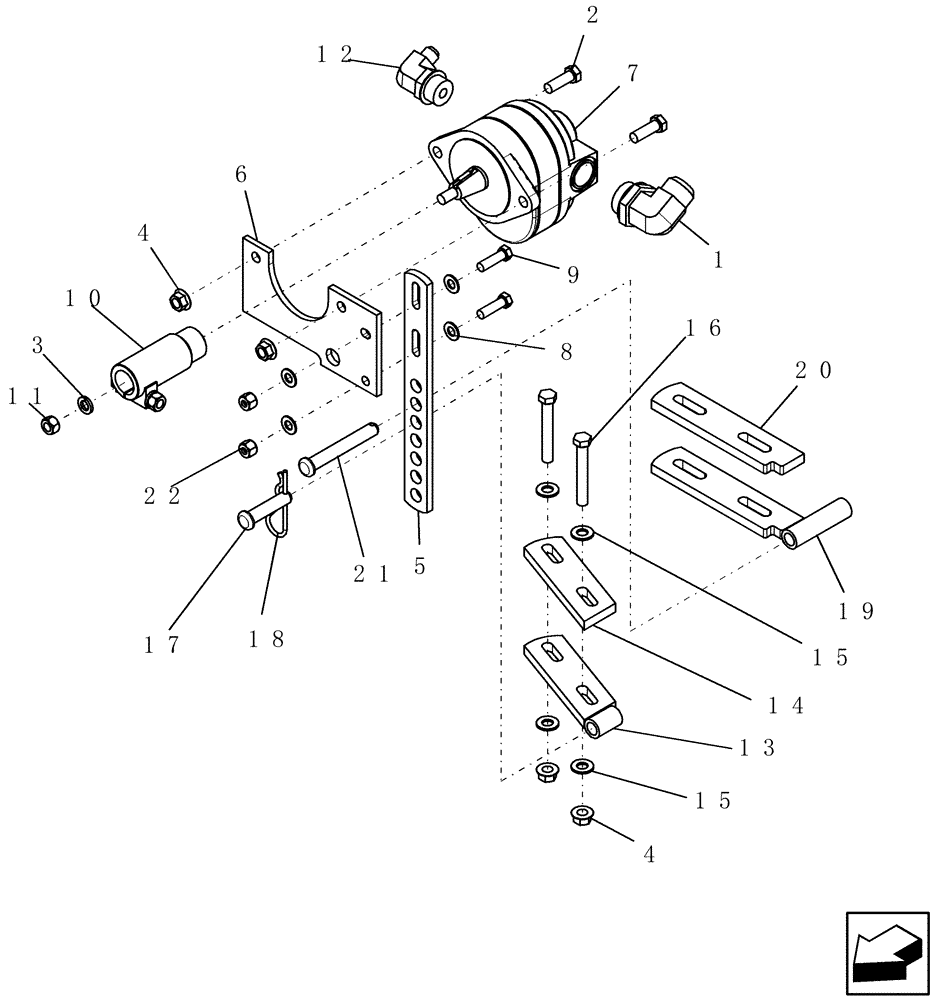

Запчасти Case IH 1200PT (L.10.D[08]) - BULK FILL - PTO 12 ROW & 16 ROW - PTO PUMP DETAIL (BSN CBJ022057) L - Field Processing

1

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

86512371

SERRATED NUT,Flg, USR, 1/2"-13

6шт.

5

437631A1

BRACKET

adjusting

1шт.

6

437630A1

PLATE

pump mounting

1шт.

7

398126A1

HYDRAULIC PUMP,63.6 CC

63.6 cm3 (3.88 in3) displacement

1шт.

398126A1R

REMAN-HYD PUMP

1200PT BSN CBJ022057 (11/01-7/08)

1шт.

398126A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

Not Shown

1шт.

7

D149152

PACKAGE, REPAIR

minor

1шт.

Not Shown

1шт.

8

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

9

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

10

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

1 3/8"

1шт.

For Tractors with 1-3/8" PTO shaft

1шт.

10

1958268C1

COUPLING

1 3/4"

1шт.

For Tractors with 1-3/4" PTO shaft

1шт.

11

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

12

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

1шт.

13

437633A1

STRAP

assembly

1шт.

14

437632A1

STRAP

1шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

16

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

17

86624085

HEADED PIN,15.88mm OD x 69.85mm L

1шт.

18

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

19

87402771

STRAP

assembly retaining magnum

1шт.

20

87402770

STRAP

retaining - magnum

1шт.

21

87024323

HEADED PIN,15.88mm OD x 114.3mm L

1шт.

22

86637736

NUT,7/16"-14, GB

2шт.
