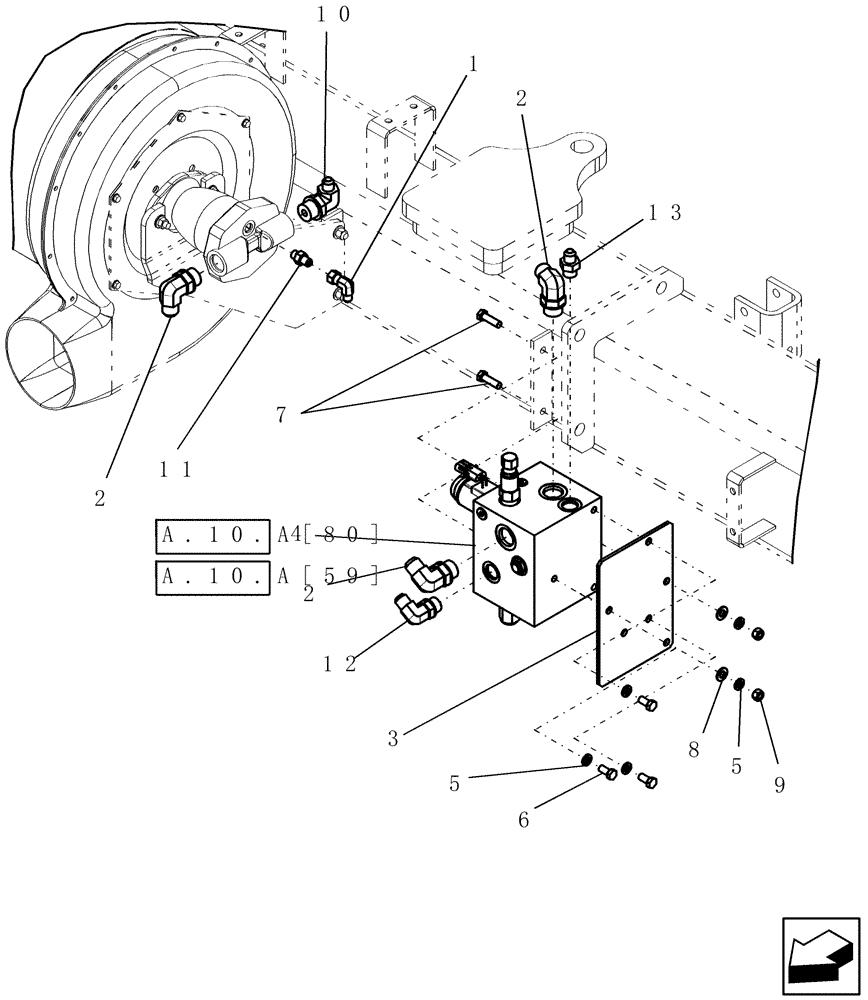

Запчасти Case IH 1200PT (L.10.D[07]) - BULK FILL - PTO 12 ROW & 16 ROW - VALVE BLOCK AND FAN MOTOR DETAIL L - Field Processing

1

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

6шт.

Includes O-Ring

1шт.

3

433900A1

BRACKET

bulk fill valve

1шт.

4

431468A1

VALVE

assembly bulk fill

1шт.

PTO drive

1шт.

4

87438424

VALVE

assembly bulk fill PTO with plugs

1шт.

Direct Drive

1шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

6

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

7

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

9

9628503

NUT,3/8"-16, G5

2шт.

10

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

11

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

12

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

13

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.
