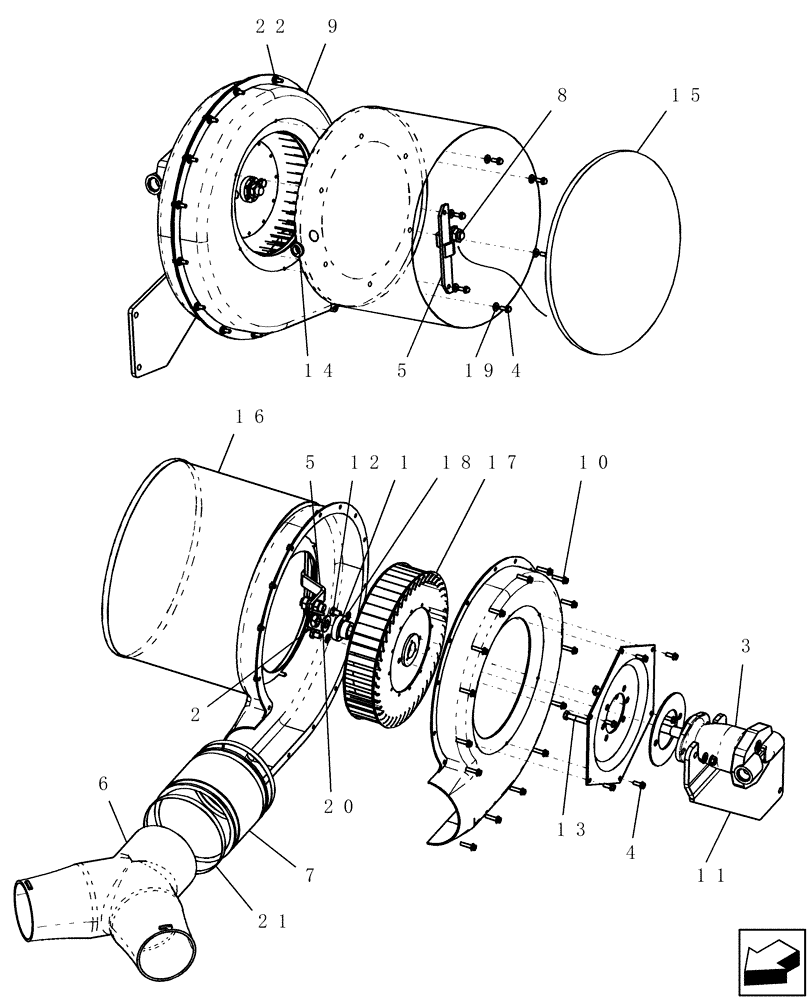

Запчасти Case IH 1200PT (L.10.D[06]) - BULK FILL - BLOWER L - Field Processing

1

87500050

BUSHING

JA 7/8" taper

1шт.

2

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

3

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

3

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

3

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

3

55555C1

KEY

1/4" square

1шт.

3

D63349

SEAL

motor shaft

1шт.

3

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

3

271429

SNAP RING,1.625", Int, #162

1шт.

4

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

12шт.

5

290952A1

BRACKET

fan speed sensor mount

1шт.

6

312284A1

TUBE,123.8 mm ID, 130.2 - 152.4 mm OD

air divider

1шт.

7

312340A1

ADAPTER

Rubber With Clamps

1шт.

7

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

8

324049A1

SENSOR

speed hall

1шт.

9

355135A1

FAN

bulk fill 6"

1шт.

10

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

15шт.

11

433937A1

MOUNTING PLATE

blower

1шт.

12 row and 16 row planters

1шт.

11

86988858

BRACKET

blower mount

1шт.

Not Shown

1шт.

12 row, 16 row, 12/23 row and 16/31 row planters

1шт.

12

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

13

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

14

435810A1

GROMMET,5/8" ID x 1-1/8" OD x 3/8" Thk

1 1/8"od 5/8"id 3/8"thk

1шт.

15

447241A1

CAP

BF fan screen

1шт.

16

447242A1

SCREEN

BF fan

1шт.

17

447243A1

ROTOR

bulk fill aluminum

1шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

19

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

20

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

21

87019669

HOSE CLAMP,174.1mm - 196.8mm

2шт.

22

523282

SERRATED NUT,Flg, USR, 1/4"-20

15шт.

23

440132A1

AIR HOSE,5.00" ID x 57.00"

Cut from 306385A1

2шт.

Not Shown

1шт.

24

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.

Not Shown

1шт.

25

86990466

SUPPORT

air hose

2шт.

Not Shown

1шт.

26

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
