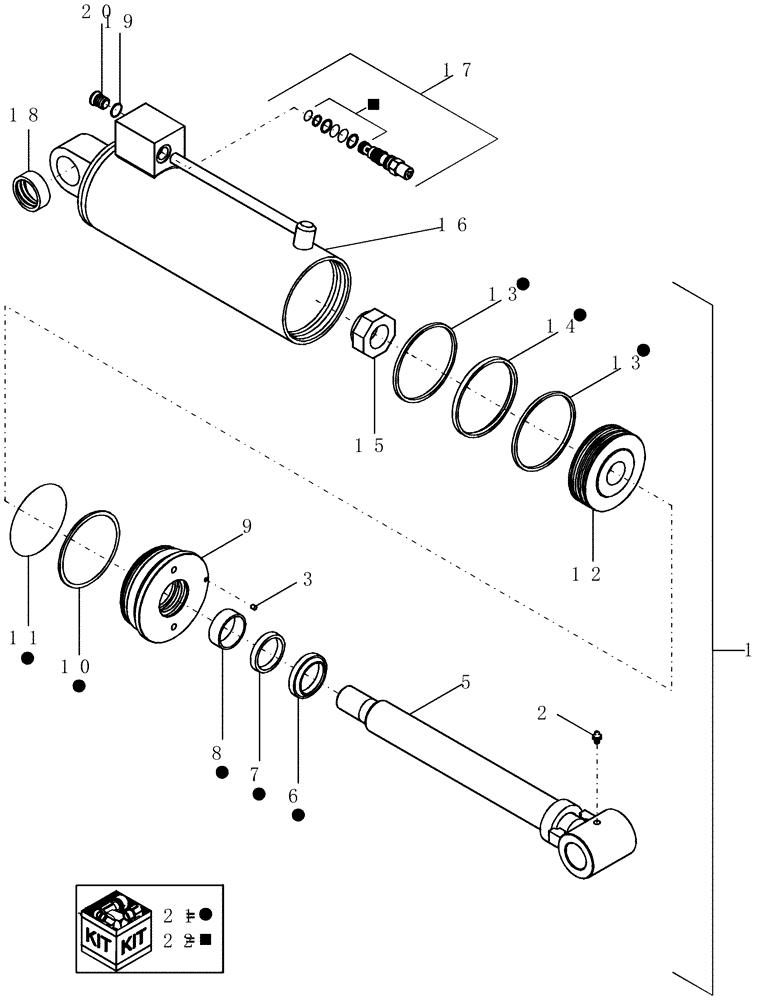

Запчасти Case IH 1200PT (A.10.A[13]) - HYDRAULIC CYLINDER - 87414319 A - Distribution Systems

1

87414319

HYDRAULIC CYLINDER

5 1/2" x 12" 3000 psi

1шт.

1

84227100R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, 3000 psi (11/01-7/08), Reman for New PN 87414319

1шт.

1

84227100C

CORE-HYD CYLINDER

Return Number

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

3

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1шт.

5

87437044

ROD

piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 87418434

1шт.

7

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 87418434

1шт.

8

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87418434

1шт.

9

87418435

HEAD

cylinder front

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER BACKUP

1шт.

Included in repair kit 87418434

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87418434

1шт.

12

87418436

PISTON

5 1/2" dia cyl

1шт.

13

NSS

NOT SOLD SEPARAT

NYLON WEAR RING

2шт.

Included in repair kit 87418434

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, PISTON

1шт.

Included in repair kit 87418434

1шт.

15

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

16

NSS

NOT SOLD SEPARAT

TUBE, HYD CYLINDER W/CLEVIS

1шт.

17

384836A1

BALANCE VALVE

assembly counterbalance

1шт.

18

87437043

BUSHING

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

Includes O-Ring

1шт.

21

87418434

SEAL KIT

lift cyl

1шт.

22

384837A1

SEAL KIT

counterbalance valve for use with sun

1шт.
