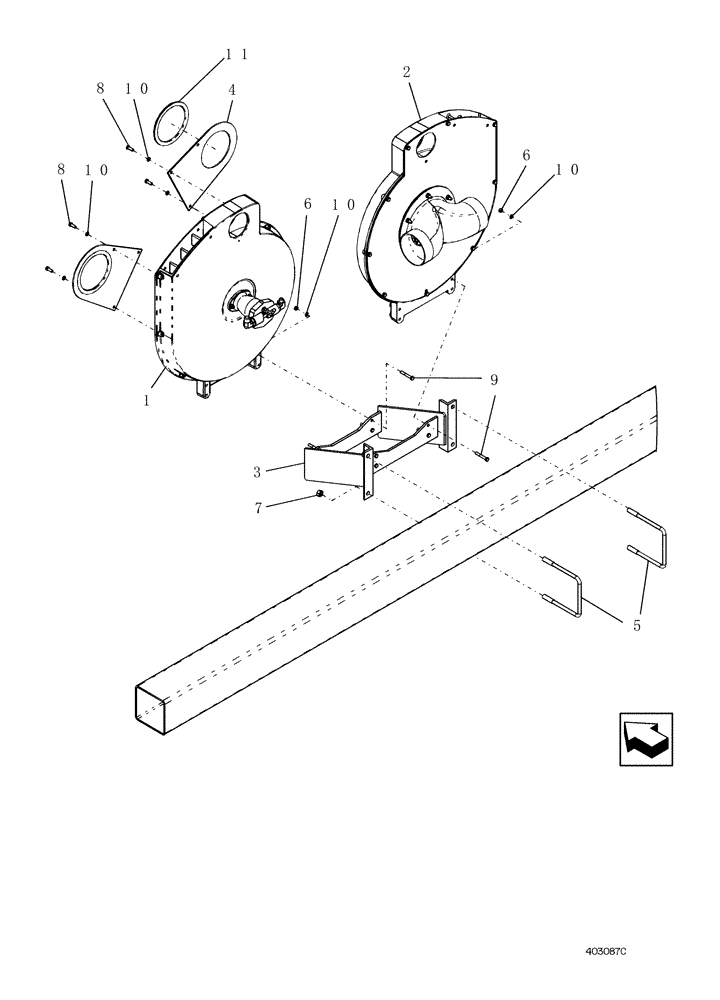

Запчасти Case IH 1200PT (L.10.D[03]) - FAN ASSEMBLY MOUNTING, 12/23 ROW (BSN CBJ026002) L - Field Processing

1

REF

INSTRUCTION

FAN, ASM VACUUM, 6" INLET

1шт.

2

REF

INSTRUCTION

FAN, ASM VACUUM, 6" INLET

1шт.

3

86991571

BRACKET

dual fan

1шт.

4

86991572

BRACKET

6" hose

2шт.

5

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

6

9628503

NUT,3/8"-16, G5

8шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

11

NSS

NOT SOLD SEPARAT

TRIM, VINYL - 22.5IN

2шт.

Cut from 1330108CX

1шт.

11

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.
