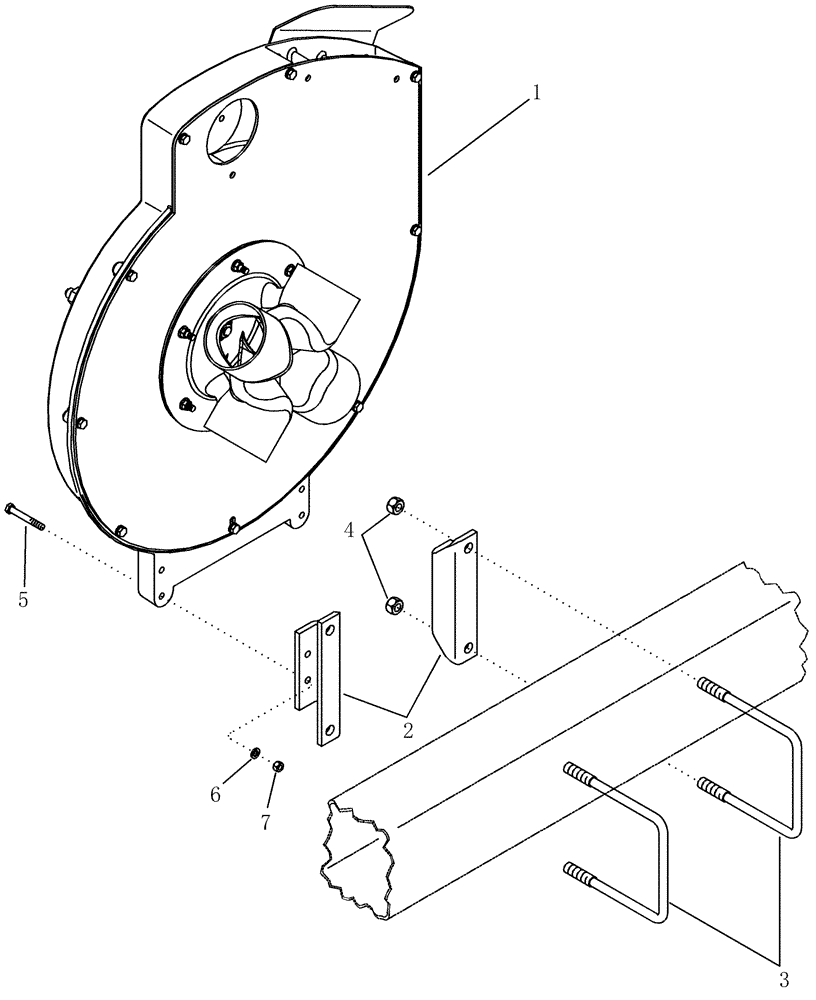

Запчасти Case IH 1200PT (L.10.D[02]) - FAN ASSEMBLY MOUNTING, 12 ROW & 16 ROW (BSN CBJ026002) L - Field Processing

1

REF

INSTRUCTION

FAN ASSY.

1шт.

2

427743A1

BRACKET

fan mounting

2шт.

3

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

5

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

4шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

7

9628503

NUT,3/8"-16, G5

4шт.
