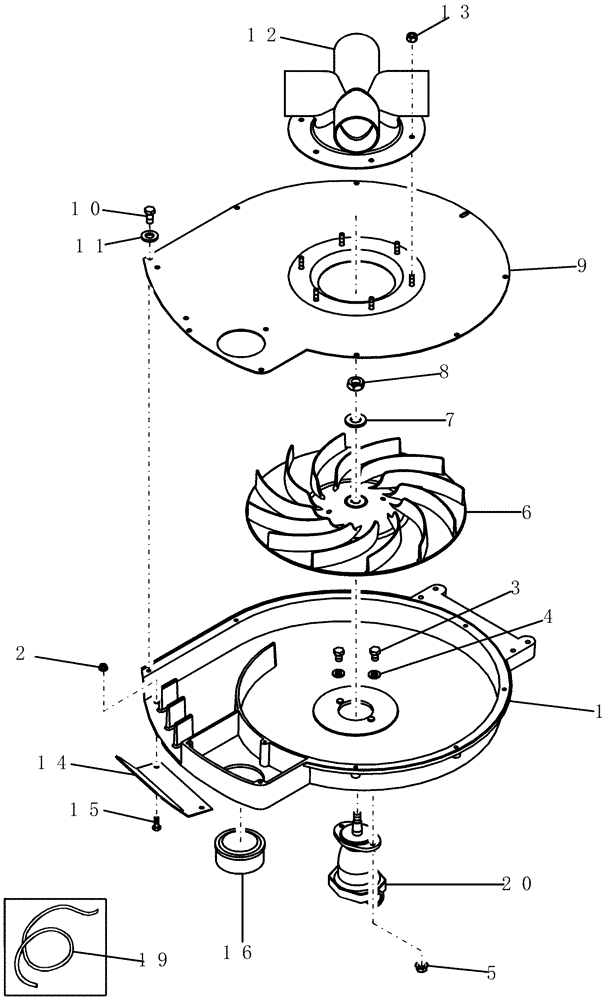

Запчасти Case IH 1200PT (L.10.D[01]) - FAN ASSEMBLY L - Field Processing

0

341452A3

FAN

stacker - Bamal Supply, Years: -31-DEC-02

1шт.

12 row and 16 row planters

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

1

323944A2

HOUSING

impeller

1шт.

2

247780

SERRATED NUT,Flg, USR, 3/8"-16

, Serial Range: -CBJ0001643

2шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

6

241856A2

FAN

21" curved blade

1шт.

7

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

8

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

9

87606562

PLATE

Front 21" With Decal

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

9шт.

12

327076A3

MANIFOLD

four inlet, 4 1/2" od stacker bar

1шт.

12 row and 16 row planters

1шт.

12

446490A1

VENT MANIFOLD

2 inlet 6"

1шт.

12/23 row and 16/31 row planters

1шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

14

412445A1

DEFLECTOR

fan outlet, Serial Range: -CBJ0001643

1шт.

12 row and 16 row planters

1шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Serial Range: -CBJ0001643

2шт.

12 row and 16 row planters

1шт.

16

238599A2

VACUUM GAUGE

Attaching Hardware NSS, Serial Range: -CBJ0018297

1шт.

12 row and 16 row planters

1шт.

16

240788A1

ELBOW

1/8" npt filter vent (brass)

1шт.

Not Shown

1шт.

16

86624128

FITTING,1/4" Hose x 1/8" NPTF, Barbed

1шт.

Not Shown

1шт.

19

238600A3

HOSE,6.35 mm ID x 1730.00 mm

, Serial Range: -CBJ0001643

1шт.

12 row and 16 row planters

1шт.

20

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

20

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

20

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

20

55555C1

KEY

1/4" square

1шт.

Not Shown

1шт.

20

D63349

SEAL

motor shaft

1шт.

Not Shown

1шт.

20

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

Not Shown

1шт.

20

271429

SNAP RING,1.625", Int, #162

1шт.

Not Shown

1шт.

0

341453A3

FAN

planter assembly, Start Year: 01-JAN-03

1шт.

0

86988187

FAN

assembly vacuum 6" inlet, Start Year: 01-JAN-03

1шт.
