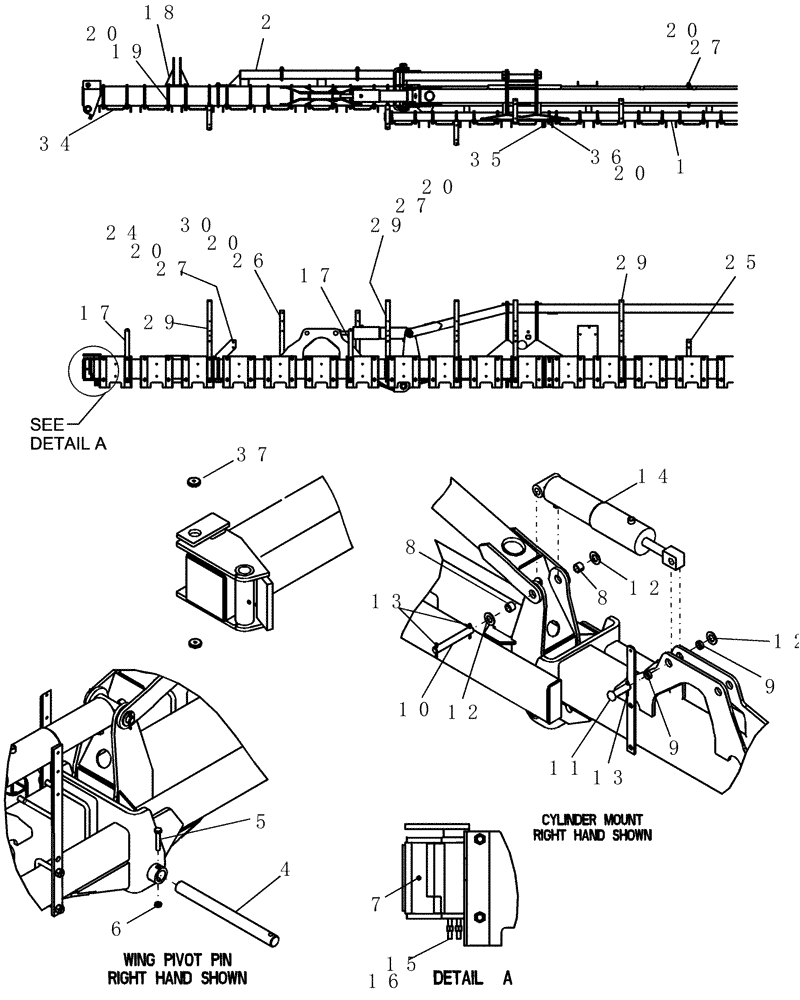

Запчасти Case IH 1200PT (L.10.C[06]) - FRAME - TOOLBAR 16/31 ROW & 24 ROW (BTW CBJ022252 AND CBJ026002) L - Field Processing

1

87460801

TUBE,5835 mm L

assembly, 31R15 center

1шт.

16/31 row planter

1шт.

1

87461693

TUBE

24R20 sub center with decals, Start Serial: CBJ022252

1шт.

24 row planter

1шт.

2

87461706

TUBE

31R15 wing with decal LH

1шт.

16/31 row planter

1шт.

2

87401766

TUBE

assembly, 24R20 wing LH, Start Serial: CBJ022252

1шт.

24 row planter

1шт.

3

87461708

TUBE

31R15 wing with decal RH

1шт.

16/31 row planter

1шт.

3

87460571

TUBE

wing, 24R20 RH, Start Serial: CBJ022252

1шт.

24 row planter

1шт.

4

441197A1

PIVOT PIN

31R15

2шт.

16/31 row planter

1шт.

4

87401673

PIN

24R20 wing pivot, Start Serial: CBJ022252

2шт.

24 row planter

1шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

16/31 row planter

1шт.

5

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

, Start Serial: CBJ022252

2шт.

24 row planter

1шт.

6

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

16/31 row planter

1шт.

6

87530607

NUT

1/2"-13, GB, Start Serial: CBJ022252

2шт.

24 row planter

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long, Serial Range: -CBJ022323

4шт.

8

87459486

BUSHING

tension 1 1/4" x 1 x 1/8" lg, Start Serial: CBJ022324

4шт.

9

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

4шт.

10

441198A1

PIN

cylinder anchor

2шт.

16/31 row planter

1шт.

10

87422738

PIN

24R20 wing cylinder, Start Serial: CBJ022252

2шт.

24 row planter

1шт.

11

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

12

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

6шт.

13

88182

COTTER PIN,1/4" OD x 2" L

6шт.

14

87441307

HYDRAULIC CYLINDER

3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: -CBJ022483

2шт.

14

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, TOOLBAR 16/31 ROW & 24 ROW, BTW CBJ022252 AND CBJ026002, 3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: -CBJ022483 (11/01-7/08), Reman for New PN 87441307

2шт.

14

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

14

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, wing 3 7/8" x 4 3/4" 3000 PSI SA, Start Serial: CBJ022484, TOOLBAR 16/31 ROW & 24 ROW, BTW CBJ022252 AND CBJ026002 (11/01-7/08), Start Serial: CBJ022484

2шт.

14

87439451R

REMAN-HYD CYLINDER

1200PT FRAME - TOOLBAR 16/31 ROW & 24 ROW BTW CBJ022252 AND CBJ026002 Start Serial: CBJ022484 (11/01-7/08)

2шт.

14

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

15

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

16/31 row planter

1шт.

15

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

, Start Serial: CBJ022252

4шт.

24 row planter

1шт.

16

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16/31 row planter

1шт.

16

86050277

NUT,5/16"-18, GB

, Start Serial: CBJ022252

4шт.

24 row planter

1шт.

17

87447161

BRACKET

hose routing

4шт.

18

427733A1

BRACKET

wheel mounting

2шт.

19

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

8шт.

20

280374

NUT,Hex, 5/8" - 11, Gr 5

144шт.

24

141728C4

CHANNEL

bracket head

2шт.

25

127475A2

ANGLE

row unit mounting extension

2шт.

26

87424162

BRACKET

6" hose

4шт.

27

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

30шт.

29

427745A2

BAR

vacuum support

10шт.

30

817740C1

U-BOLT

us 5/8"-11 5"w 4 7/32"d G5 1 1/2" thread

4шт.

34

141728C4

CHANNEL

bracket head

31шт.

35

127475A2

ANGLE

row unit mounting extension

2шт.

36

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

34шт.

37

401411A1

BUSHING

breakaway 1/2" thk 1 1/2" od 3/8" id hardened

4шт.
