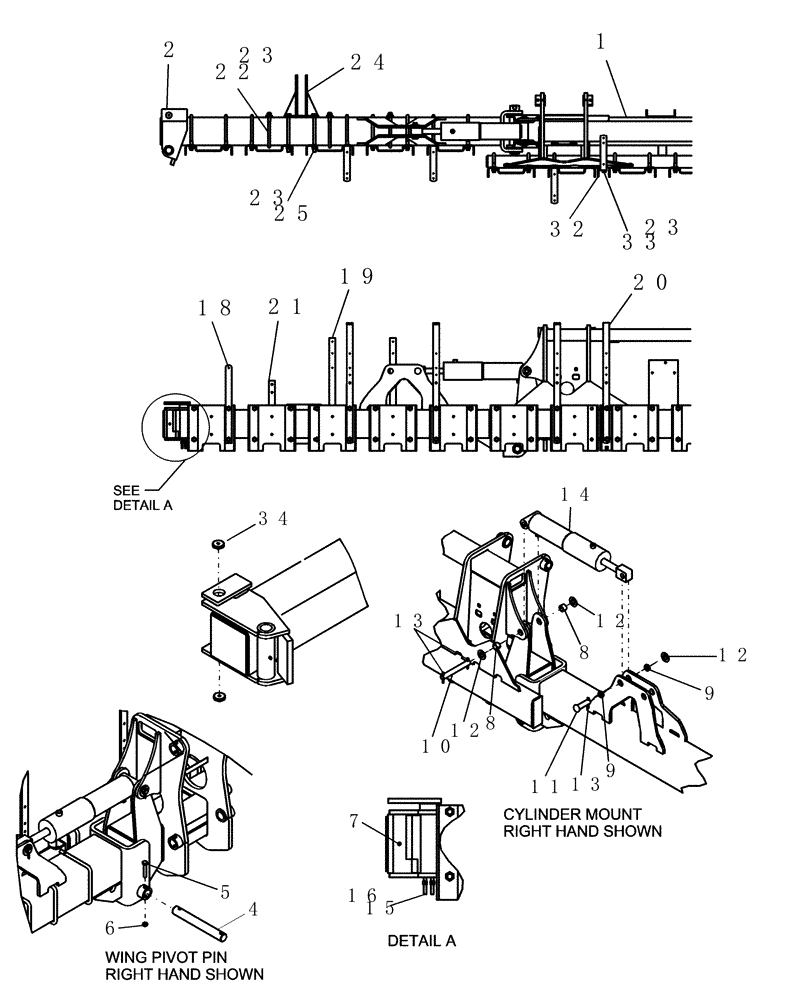

Запчасти Case IH 1200PT (L.10.C[04]) - FRAME - TOOLBAR 12/23 ROW (BTW CBJ022252 AND CBJ026002) L - Field Processing

1

87460890

TUBE,4147.3, 188 mm L

assembly, 23R15 center

1шт.

2

87461702

TUBE

assembly, 23R15 wing with decal LH

1шт.

2

87461704

TUBE

assembly, 23R15 wing with decal RH

1шт.

4

401442A1

PIVOT PIN

1 1/2" od x 12" fl

2шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

6

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.

9

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

4шт.

10

441198A1

PIN

cylinder anchor

2шт.

11

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

12

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

6шт.

13

88182

COTTER PIN,1/4" OD x 2" L

6шт.

14

87441307

HYDRAULIC CYLINDER

3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: -CBJ022483

2шт.

14

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, TOOLBAR 12/23 ROW, BTW CBJ022252 AND CBJ026002, 3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: -CBJ022483 (11/01-7/08), Reman for New PN 87441307

2шт.

14

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

14

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

wing 3 7/8" x 4 3/4" 3000 PSI SA, Start Serial: CBJ022484

2шт.

14

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, wing 3 7/8" x 4 3/4" 3000 PSI SA, Start Serial: CBJ022484, TOOLBAR 12/23 ROW, BTW CBJ022252 AND CBJ026002 (11/01-7/08)

2шт.

14

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

15

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

16

86050277

NUT,5/16"-18, GB

4шт.

18

87447161

BRACKET

hose routing

2шт.

19

87424162

BRACKET

6" hose

4шт.

20

427745A2

BAR

vacuum support

10шт.

21

86991575

BRACKET

4-way tee mounting

4шт.

22

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

24шт.

23

280374

NUT,Hex, 5/8" - 11, Gr 5

108шт.

24

427733A1

BRACKET

wheel mounting

2шт.

25

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

8шт.

31

141728C4

CHANNEL

bracket head

23шт.

32

127475A2

ANGLE

row unit mounting extension

1шт.

33

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

26шт.

34

410979A1

BUSHING

1.5" od .323" id .5" lg

4шт.
