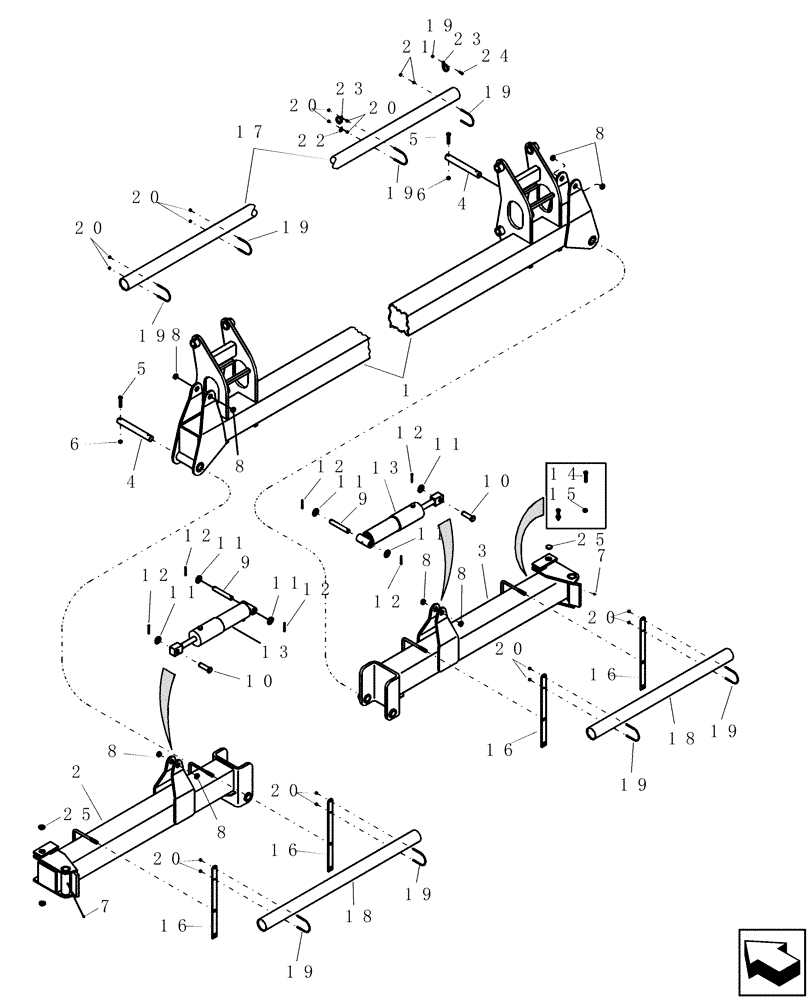

Запчасти Case IH 1200PT (L.10.C[01]) - FRAME - TOOLBAR (BSN CBJ022251) L - Field Processing

1

427721A1

TUBE

assembly center 7 x 7

1шт.

12 row planter

1шт.

1

427727A1

TUBE

assembly center 7 x 7

1шт.

16 row planter

1шт.

2

427723A1

TUBE

assembly 30' wing LH

1шт.

12 row planter

1шт.

2

427729A1

TUBE

40' wing LH

1шт.

16 row planter

1шт.

3

427725A1

TUBE

assembly 30' wing RH

1шт.

12 row planter

1шт.

3

427731A1

TUBE

40' wing RH

1шт.

16 row planter

1шт.

4

401442A1

PIVOT PIN

1 1/2" od x 12" fl

2шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

6

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

8шт.

9

395611A1

PIN

cylinder anchor

2шт.

10

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

11

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

6шт.

12

88182

COTTER PIN,1/4" OD x 2" L

6шт.

13

396137A2

HYDRAULIC CYLINDER

wing lift, Serial Range: -CBJ0018183

2шт.

13

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, TOOLBAR, BSN CBJ022251, wing lift, Serial Range: -CBJ0018183 (11/01-7/08), Reman for New PN 396137A2

2шт.

13

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

13

87441307

HYDRAULIC CYLINDER

3 7/8" x 4 3/4" 3000 PSI SA, wing, Start Serial: CBJ0018184

2шт.

13

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, TOOLBAR, BSN CBJ022251, 3 7/8" x 4 3/4" 3000 PSI SA, wing, Start Serial: CBJ0018184 (11/01-7/08), Reman for New PN 87441307

2шт.

13

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

14

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

12 row planter

1шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

16 row planter

1шт.

15

86050277

NUT,5/16"-18, GB

4шт.

12 row planter

1шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16 row planter

1шт.

16

427829A1

BRACKET

hose routing

4шт.

12 row planter

1шт.

16

427829A1

BRACKET

hose routing

7шт.

16 row planter

1шт.

17

436201A1

HYD TUBE

hose routing

1шт.

12 row planter

1шт.

17

436199A1

HYD TUBE

hose routing

1шт.

16 row planter

1шт.

18

436202A1

HYD TUBE

hose routing

2шт.

12 row planter

1шт.

18

436200A1

HYD TUBE

hose routing

2шт.

16 row planter

1шт.

19

436288A1

U-BOLT

BOLT "U" ur 1/4"-20 3 11/32"w 4 13/32"d 1 21/32" thread - vacuum sys

7шт.

12 row planter

1шт.

19

436288A1

U-BOLT

BOLT "U" ur 1/4"-20 3 11/32"w 4 13/32"d 1 21/32" thread - vacuum sys

11шт.

16 row planter

1шт.

20

280129

NUT,1/4"-20

17шт.

12 row planter

1шт.

20

280129

NUT,1/4"-20

20шт.

16 row planter

1шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

16 row planter

1шт.

22

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

23

87023168

CLAMP,44.4mm, Coat, 7.1mm Bolt Hole, P Type

1 3/4", Insul, 1/4" Bolt

2шт.

12 row planter

1шт.

23

87023168

CLAMP,44.4mm, Coat, 7.1mm Bolt Hole, P Type

1 3/4", Insul, 1/4" Bolt

1шт.

16 row planter

1шт.

24

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

12 row planter

1шт.

25

410979A1

BUSHING

1.5" od .323" id .5" lg

4шт.
