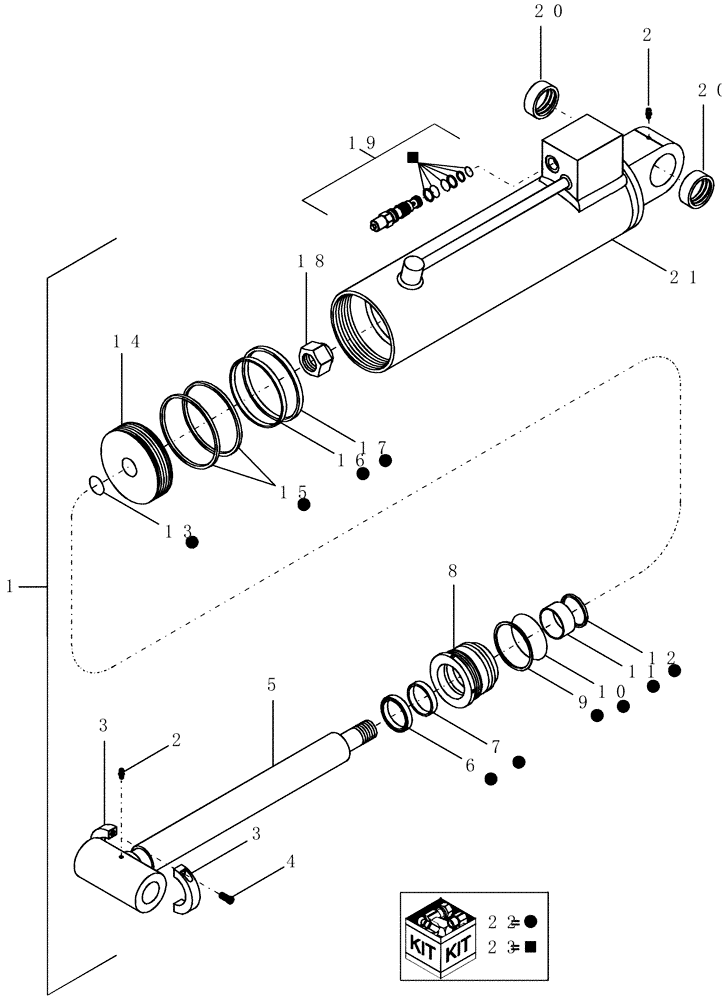

Запчасти Case IH 1200PT (A.10.A[11]) - HYDRAULIC CYLINDER - 418976A1 A - Distribution Systems

1

418976A1

HYDRAULIC CYLINDER

5"x12" hti, Serial Range: -CBJ0018394

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

2шт.

3

431522A1

COLLAR

piston rod

1шт.

4

86977870

HEX SOC SCREW,3/8" - 16 x 2"

2шт.

5

386990A1

PISTON ROD

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 386991A1

1шт.

7

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 386991A1

1шт.

8

386992A1

CYLINDER END CAP

head, front

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER BACKUP

1шт.

Included in repair kit 386991A1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 386991A1

1шт.

11

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 386991A1

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINING RING

1шт.

Included in repair kit 386991A1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, PISTON ROD

1шт.

Included in repair kit 386991A1

1шт.

14

1978009C1

PISTON

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 386991A1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING, PISTON

1шт.

Included in repair kit 386991A1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, PISTON

1шт.

Included in repair kit 386991A1

1шт.

18

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

19

384836A1

BALANCE VALVE

assembly counterbalance

1шт.

20

414178A1

BUSHING

47.6 mm od x 38.3 id x 22.4 mm heat treated; helical groove

2шт.

21

NSS

NOT SOLD SEPARAT

CYLINDER TUBE ASSY

1шт.

22

386991A1

SEAL KIT

kit

1шт.

23

384837A1

SEAL KIT

counterbalance valve for use with sun

1шт.
