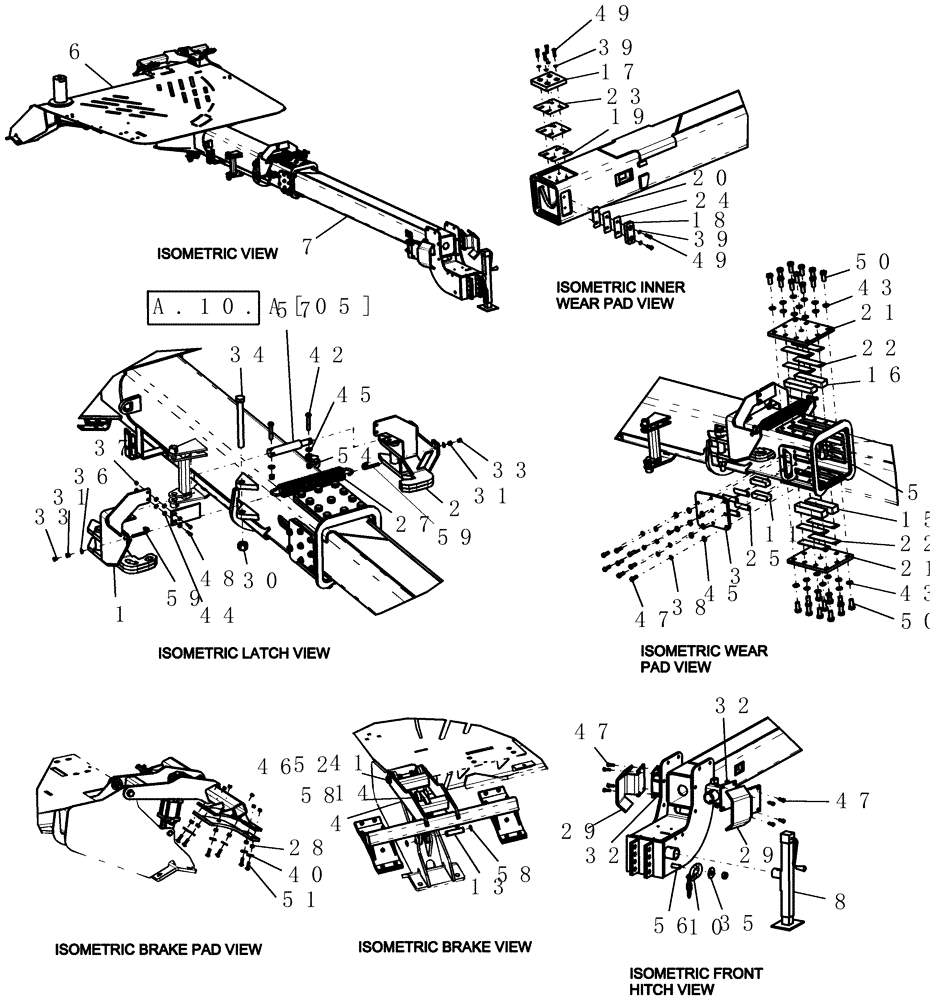

Запчасти Case IH 1200PT (F.10.G[24]) - 12/23 ROW & 16/31 ROW TWO STAGE MECHANICAL CARRIER FRAME HITCH ASSEMBLY F - Frame Positioning

1

87462870

LATCH HOOK

PT hitch RH

1шт.

2

87462874

LATCH HOOK

PT hitch LH

1шт.

Includes decal 432589A1

1шт.

2

432589A1

DECAL

reflector amber 2.9" x 4.3"

1шт.

3

87462887

COVER

plate 12 x 12 side

1шт.

4

87460983

BRAKE

PT telescoping hitch

1шт.

5

87460985

PLATE

cover 12 x 12 LH

1шт.

6

87501987

FRAME

12/23 carrier

1шт.

12/23 row planter

1шт.

6

87505230

FRAME

base assembly 16/31

1шт.

16/31 row planter

1шт.

7

87502726

TONGUE

10 x 10 - 30' 2 sect hitch

1шт.

12/23 row planter

1шт.

7

87461100

TONGUE

PT 40' hitch

1шт.

16/31 row planter

1шт.

8

385338A1

JACK

assembly 7000 lb sidewind 5" stroke

1шт.

9

427861A1

BLOCK

stop

2шт.

10

PCC8607191

CHAIN

30,400 lb safety

1шт.

11

87461072

WEAR PAD

5.8 x 1.8 x 1.38

4шт.

12

84256352

PAD

Rubber, Brake

2шт.

13

87461081

HEADLESS PIN

brake cylinder

1шт.

14

87461082

HEADLESS PIN

brake cylinder

1шт.

15

87461092

WEAR PAD

12 x 12 bottom

2шт.

16

87502401

WEAR PAD

12 x 12 top

2шт.

17

87502406

WEAR PAD

10 x 10 top

2шт.

18

87502414

WEAR PAD

10 x 10 side

2шт.

19

87505234

SHIM

10 x 10 top thick

2шт.

20

87505245

SHIM

10 x 10 side thick

2шт.

21

87462898

COVER

plate 12 x 12 top

2шт.

22

87506176

SHIM

12 x 12 top / bot

8шт.

23

87505235

SHIM

10 x 10 top thin

4шт.

24

87505253

SHIM

10 x 10 side thin

4шт.

25

87506157

SHIM

PT hitch side

8шт.

26

87461093

PLATE

cover

1шт.

27

87506152

SPRING

E 3/8"wr 2 1/2"od 17 3/32"lg

1шт.

28

87505200

SPACER

PT Hitch Brake

12шт.

29

87559018

BRACKET

wheel bumper, 30"

2шт.

30

86755

NUT,1"-8, GB

2шт.

31

231-1446

NUT,3/8" - 16, Gr 5

2шт.

32

87530607

NUT

1/2"-13, GB

8шт.

33

86632697

CAP

poly sleeve cap 3/8" red

2шт.

34

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

2шт.

35

495-81080

WASHER,1 1/32" x 3" x .240"

1шт.

36

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

37

280129

NUT,1/4"-20

2шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

39

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

40

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

41

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

42

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

43

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

22шт.

44

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

45

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

20шт.

46

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

47

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

24шт.

48

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

49

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

12шт.

50

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

22шт.

51

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

12шт.

52

280375

NUT,3/4"-10, GC

2шт.

53

9628503

NUT,3/8"-16, G5

12шт.

54

86992215

LOCK NUT,1/2"-13, GC

2шт.

55

86511609

NUT,1"-8, G8

1шт.

56

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

57

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA

1шт.

58

87348940

SNAP RING

ext .925" id .042" tk

4шт.

59

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

2шт.
