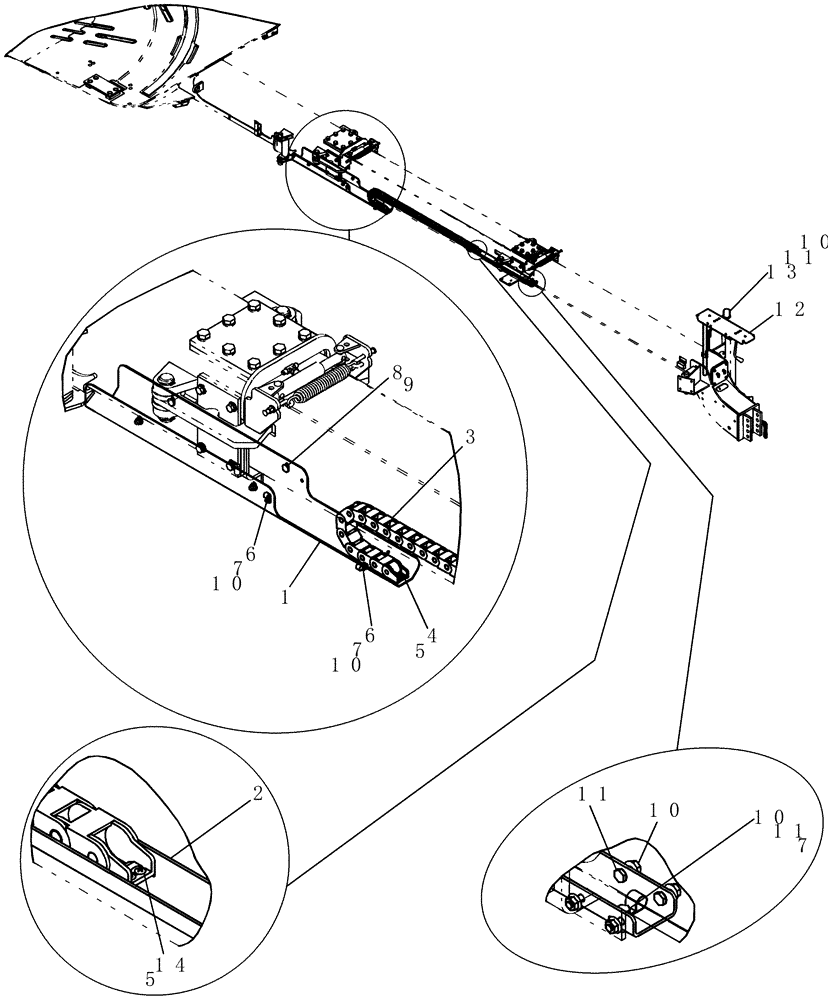

Запчасти Case IH 1200PT (F.10.G[21]) - TAKE-UP CARRIER DETAILS (ASN CBJ022252) F - Frame Positioning

1

87408402

TRAY

hose carrier angled

1шт.

2

87408404

CENTRAL RAIL

tray hose carrier support

1шт.

3

87433314

CARRIER

tongue latch reel

1шт.

4

9672387

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

2шт.

5

87304

NUT,#10-24

4шт.

6

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

2шт.

7

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

3шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

10

523282

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

11

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

7шт.

12

427941A4

SUPPORT

hose holder

1шт.

13

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

14

87023135

SCREW,Oval HD, #10 - 24 x 3/4"

2шт.
