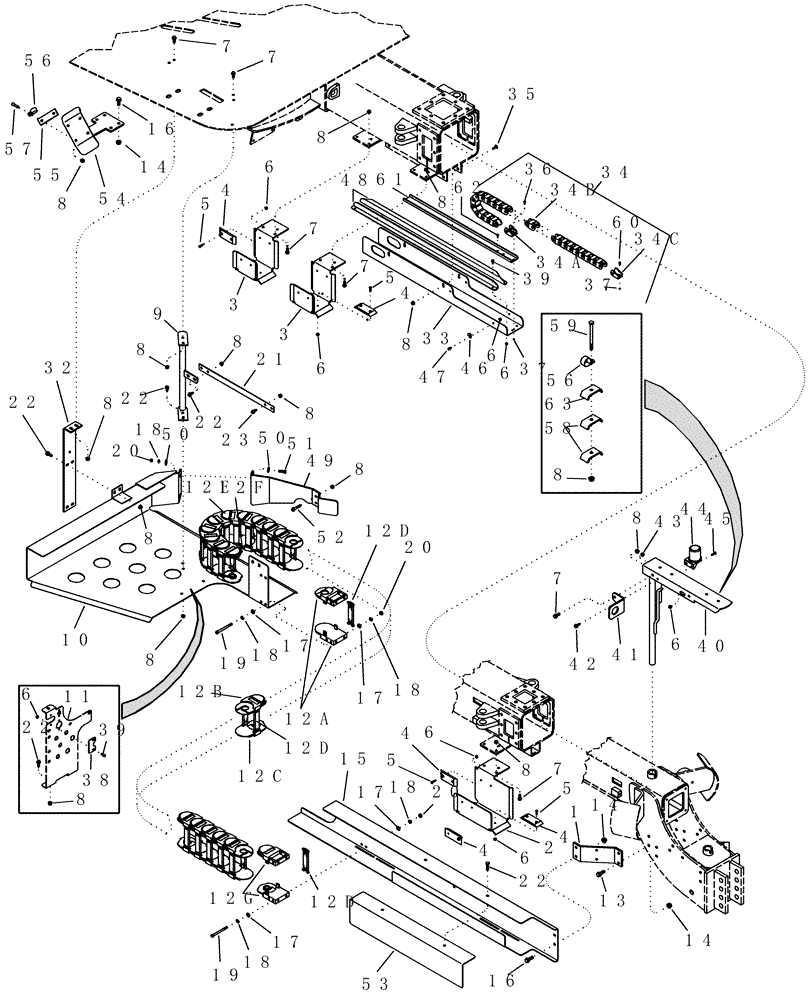

Запчасти Case IH 1200PT (F.10.G[18]) - TAKE-UP CARRIER 12 ROW, 12/23 ROW, 16 ROW, & 16/31 ROW (BSN CBJ022251) F - Frame Positioning

1

427919A1

BRACKET

hose carrier trough

1шт.

12 row and 16 row planters

1шт.

1

441109A1

BRACKET

hose carrier trough

1шт.

12/23 row and 16/31 row planters

1шт.

2

427921A1

SUPPORT

hose carrier 10 x 10

1шт.

12 row planter

1шт.

2

427947A1

SUPPORT

hose carrier 10 x 10

1шт.

16 row planter

1шт.

2

441049A1

SUPPORT

hose carrier 10x10

1шт.

12/23 row planter

1шт.

2

441075A1

SUPPORT

hose carrier 10x10

1шт.

16/31 row planter

1шт.

3

427923A1

SUPPORT

hose carrier 12 x 12

2шт.

12 row and 16 row planters

1шт.

3

441059A1

SUPPORT

hose carrier 12x12

2шт.

12/23 row and 16/31 row planters

1шт.

4

408609A1

PAD

wear - hose carrier

9шт.

5

86632573

SCREW,Phillips Drive, Flat HD, 1/4" - 20 x 1"

18шт.

6

523282

SERRATED NUT,Flg, USR, 1/4"-20

28шт.

7

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

15шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

42шт.

9

427925A1

SUPPORT

hose carrier tray

1шт.

12 row and 16 row planters

1шт.

9

441053A1

SUPPORT

carrier tray

1шт.

12/23 row and 16/31 row planters

1шт.

10

427927A1

TRAY

assembly hose carrier

1шт.

12 row and 16 row planters

1шт.

10

441093A1

TRAY

hose carrier

1шт.

12/23 row and 16/31 row planters

1шт.

11

427961A1

PANEL

bulkhead interface

1шт.

12 row and 16 row planters

1шт.

11

444315A1

PANEL

bulkhead interface

1шт.

12/23 row and 16/31 row planters

1шт.

12

406093A1

CARRIER

main hose and cable reel assembly

1шт.

16 row planter

1шт.

12

441050A1

HOSE REEL

carrier main cable assembly 30'

1шт.

12/23 row planter

1шт.

12

441076A1

HOSE REEL

carrier main cable assembly

1шт.

16/31 row planter

1шт.

12a

427020A1

BRACKET

mount 5050 series chain

2шт.

12b

414672A1

PLATE

link 5050 series chain

36шт.

12 row planter

1шт.

12b

414672A1

PLATE

link 5050 series chain

39шт.

16 row planter

1шт.

12c

414673A1

PLATE

link 5050 series chain

36шт.

12 row planter

1шт.

12c

414673A1

PLATE

link 5050 series chain

39шт.

16 row planter

1шт.

12d

427019A1

SUPPORT ASSY.

crossbar 450-15

86шт.

12 row planter

1шт.

12d

427019A1

SUPPORT ASSY.

crossbar 450-15

92шт.

16 row planter

1шт.

12d

444281A1

SUPPORT

crossbar 5050 series chain (450-18)

86шт.

12/23 row planter

1шт.

12d

444281A1

SUPPORT

crossbar 5050 series chain (450-18)

92шт.

16/31 row planter

1шт.

12e

427017A1

LINK

5050 series chain

5шт.

12f

427018A1

LINK

5050 series chain

5шт.

12g

427021A1

BRACKET

mount 5050 series chain

2шт.

13

86512179

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/2"

2шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

8шт.

15

433923A1

TROUGH

hose carrier - 30'

1шт.

12 row planter

1шт.

15

433925A1

TROUGH

hose carrier - 40'

1шт.

16 row planter

1шт.

15

441065A1

TROUGH

hose carrier 30'

1шт.

12/23 row planter

1шт.

15

441085A1

TROUGH

hose carrier 40'

1шт.

16/31 row planter

1шт.

16

84209

BOLT,Hex Serr Flg, 1/2" x 1 1/4"

6шт.

17

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

16шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

19

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

8шт.

20

9628503

NUT,3/8"-16, G5

10шт.

21

427933A1

STRIP

hose carrier tray support

1шт.

22

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

14шт.

23

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

2шт.

32

427935A1

BRACKET

hose carrier tray support

1шт.

12 row and 16 row planters

1шт.

32

444313A1

STRAP

hose carrier tray support

1шт.

12/23 row and 16/31 row planters

1шт.

33

427937A1

TRAY

hose carrier

1шт.

34

406095A1

CARRIER

tongue latch reel assembly

1шт.

12 row planter

1шт.

34

406094A1

CARRIER

tongue latch reel assembly

1шт.

16 row planter

1шт.

34a

427072A1

LINK

bracket, mount

1шт.

34b

427071A1

LINK

energy chain 200-02-055

44шт.

12 row planter

1шт.

34b

427071A1

LINK

energy chain 200-02-055

49шт.

16 row planter

1шт.

34c

427073A1

LINK

bracket, mount

1шт.

35

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

36

9672387

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

2шт.

37

87304

NUT,#10-24

4шт.

38

427939A1

BRACKET

wire harness support

1шт.

39

523292

BOLT,1/4" - 20 x 1.03" OAL

6шт.

40

427941A4

SUPPORT

hose holder

1шт.

41

427943A1

BRACKET

harness connector

1шт.

42

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

43

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

44

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

45

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

46

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

47

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

2шт.

48

433493A1

ANGLE

hose carrier guide

2шт.

49

434185A1

DEFLECTOR

hose carrier

1шт.

50

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

4шт.

51

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

52

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

2шт.

53

427993A1

COVER ASSY

hose carrier 30'

1шт.

12 row planter

1шт.

53

427991A1

COVER ASSY

hose carrier 40'

1шт.

16 row planter

1шт.

54

435795A1

SUPPORT

assembly, hose holder

1шт.

55

436047A1

BRACKET

hose holder

2шт.

56

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

5шт.

57

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

58

427781A1

HOSE CLAMP

2 hose

6шт.

59

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3шт.

60

87023135

SCREW,Oval HD, #10 - 24 x 3/4"

2шт.

61

442481A1

CENTRAL RAIL

hose carrier support

1шт.

62

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

63

427779A1

CLAMP

2 hose

3шт.
