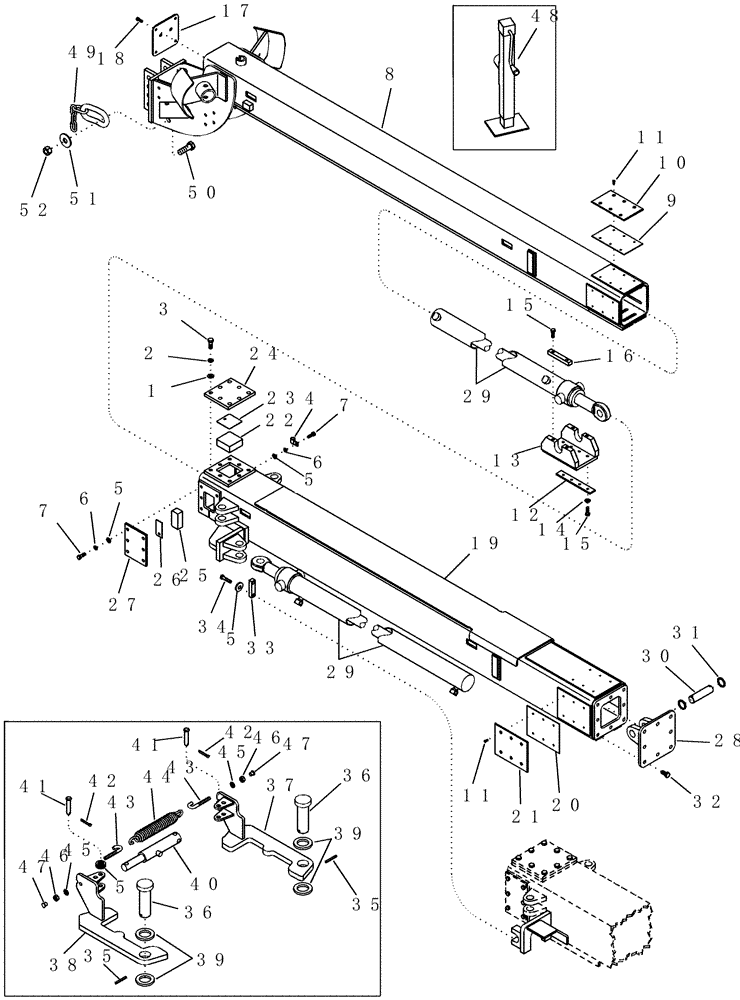

Запчасти Case IH 1200PT (F.10.G[16]) - TELESCOPING TONGUE AND HITCH, 12/23 ROW & 16/31 ROW (BSN CBJ022251) F - Frame Positioning

1

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

2

12034871

WASHER

5/8"

8шт.

3

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

4

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

5

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531" x 1.062" x .095" HTS

16шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

7

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

12шт.

8

87447195

TUBE

Assembly 8 x 8 - 30' With Decals

1шт.

12/23 row planter

1шт.

Includes decals 413672A1 and 414152A1

1шт.

8

87447193

TUBE

Assembly 8 x 8 - 40' With Decals

1шт.

Includes decals 413672A1 and 414152A1

1шт.

16/31 row planter

1шт.

8

414152A1

WARNING DECAL

Misuse Hazard

1шт.

8

87527148

WARNING DECAL

Misuse Hazard French

1шт.

8

413672A1

WARNING DECAL

Machine Tipping Hazard

1шт.

8

87527146

WARNING DECAL

Machine Tipping Hazard French

1шт.

9

86991686

SHIM

inner wear - 8 x 8 tube

1шт.

10

427873A1

WEAR PAD

inner - 8x8 tube

3шт.

11

86511975

SCREW,Flat, 1/4" - 20 x 3/4"

36шт.

12

427875A1

SPACER

bar tongue cylinder mount

2шт.

13

427877A1

SUPPORT

tongue cylinder

1шт.

14

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

8шт.

15

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

12шт.

16

427879A1

SPACER

bar cylinder mount lock

2шт.

17

427881A1

PLATE

hitch

1шт.

18

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

4шт.

19

87418387

TUBE

assembly 10 x 10 - 30' frame

1шт.

12/23 row planter

1шт.

19

87417863

TUBE

assembly 10 x 10 - 44' frame (narrow)

1шт.

16/31 row planter

1шт.

20

86991685

SHIM

inner wear - 10 x 10 tube

1шт.

21

427887A1

WEAR PAD

inner - 10 x 10 tube

3шт.

22

395398A1

WEAR PAD

top 10x10 tube

1шт.

23

86991687

SHIM

top wear - 10 x 10 tube

1шт.

24

427891A1

PLATE

top cover - 10x10 tube

1шт.

25

395401A1

WEAR PAD

side 10x10 tube

2шт.

26

86991688

SHIM

side wear - 10 x 10 tube

1шт.

27

87414381

COVER ASSY

side tongue - 10 x 10 with reflector

2шт.

Includes reflector 1284365C2

1шт.

27

1284365C2

REFLECTOR

amber 1.97" x 4.3"

2шт.

28

427897A1

SUPPORT

tongue cylinder

1шт.

29

86991010

HYDRAULIC CYLINDER

3 1/4" x 80" 3000 PSI no pins, Serial Range: -CBJ022483

2шт.

29

87439452

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 2032mm Stroke

tongue, Start Serial: CBJ022492

2шт.

30

87423924

HEADLESS PIN

1 1/2" x 4 21/32", Start Serial: CBJ0018532

1шт.

31

86632531

SNAP RING,#150, Ext

2шт.

32

281047

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8, Full Thd

8шт.

33

427899A1

SPACER

bar cylinder mount lock

2шт.

34

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

4шт.

35

86624088

PIN,6.35mm OD x 50.8mm L

2шт.

36

87415979

CLEVIS PIN

1 15/32" x 4 1/4'" ul, Start Serial: CBJ0018532

2шт.

37

427905A1

ARM

assembly latch - right

1шт.

38

427907A1

ARM

assembly latch - left

1шт.

39

427909A1

SPACER

latch arm lock

4шт.

40

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA, Start Serial: CBJ0018184

1шт.

41

86632571

HEADED PIN,1/2" x 2 1/2"

2шт.

42

394818

COTTER PIN,M5 x 25

2шт.

43

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

2шт.

44

427911A1

TENSION SPRING

1/4"wr 1 1/2"od 8 1/2" lg

1шт.

45

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

46

231-1446

NUT,3/8" - 16, Gr 5

2шт.

47

86632697

CAP

poly sleeve cap 3/8" red

2шт.

48

385338A1

JACK

assembly 7000 lb sidewind 5" stroke

1шт.

48

22139

PIN

pull, 3/4"

1шт.

Not Shown

1шт.

49

PCC8607191

CHAIN

30,400 lb safety

1шт.

50

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

51

495-81080

WASHER,1 1/32" x 3" x .240"

1шт.

52

86511609

NUT,1"-8, G8

1шт.
