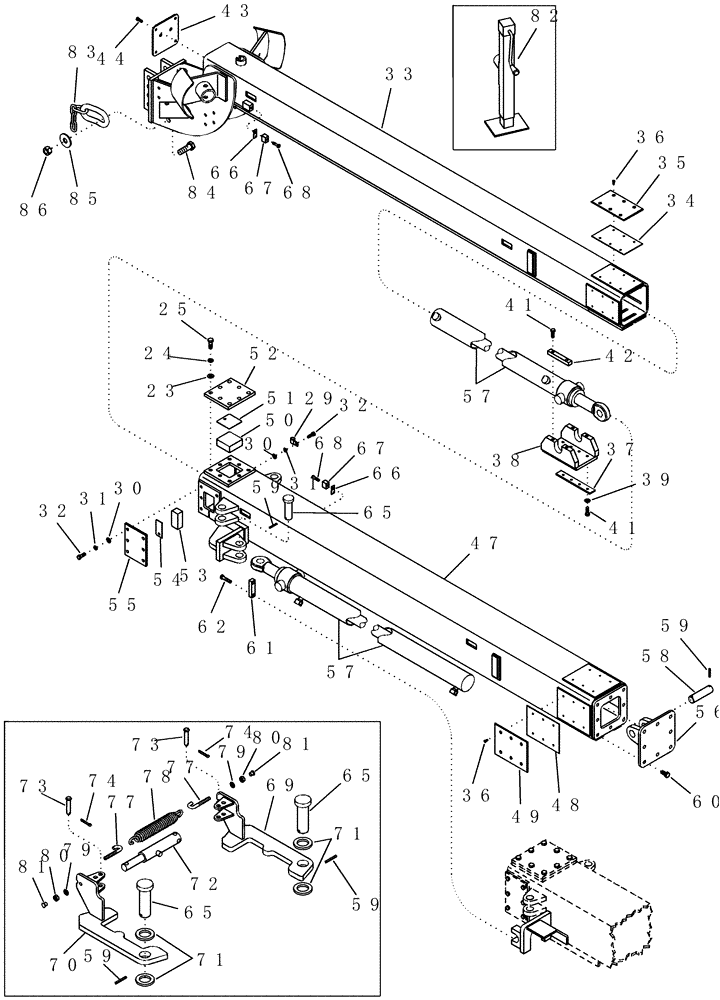

Запчасти Case IH 1200PT (F.10.G[15]) - TELESCOPING TONGUE AND HITCH, 12 ROW & 16 ROW (BSN CBJ022251) F - Frame Positioning

23

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

24

12034871

WASHER

5/8"

8шт.

25

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

29

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

30

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531" x 1.062" x .095" HTS

19шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

32

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

12шт.

33

87447195

TUBE

Assembly 8 x 8 - 30' With Decals

1шт.

12 row planter

1шт.

Includes decals 413672A1 and 414152A1

1шт.

33

87447193

TUBE

Assembly 8 x 8 - 40' With Decals

1шт.

16 row planter

1шт.

Includes decals 413672A1 and 414152A1

1шт.

33

413672A1

WARNING DECAL

Machine Tipping Hazard

1шт.

Part of Tube Assembly P/N 87414369 and P/N 87414367

1шт.

33

87527146

WARNING DECAL

Machine Tipping Hazard French

1шт.

33

414152A1

WARNING DECAL

Misuse Hazard

1шт.

Part of Tube Assembly P/N 87414369 and P/N 87414367

1шт.

33

87527148

WARNING DECAL

Misuse Hazard French

1шт.

34

86991686

SHIM

inner wear - 8 x 8 tube

1шт.

35

427873A1

WEAR PAD

inner - 8x8 tube

3шт.

36

86511975

SCREW,Flat, 1/4" - 20 x 3/4"

36шт.

37

427875A1

SPACER

bar tongue cylinder mount

2шт.

38

427877A1

SUPPORT

tongue cylinder

1шт.

39

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

8шт.

41

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

16шт.

42

427879A1

SPACER

bar cylinder mount lock

2шт.

43

427881A1

PLATE

hitch

1шт.

44

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

4шт.

47

427883A2

TUBE

assembly 10 x 10 - 30' frame

1шт.

12 row planter

1шт.

47

427917A2

TUBE

assembly 10 x 10 - 40' frame

1шт.

16 row planter

1шт.

48

86991685

SHIM

inner wear - 10 x 10 tube

1шт.

49

427887A1

WEAR PAD

inner - 10 x 10 tube

3шт.

50

395398A1

WEAR PAD

top 10x10 tube

1шт.

51

86991687

SHIM

top wear - 10 x 10 tube

1шт.

52

427891A1

PLATE

top cover - 10x10 tube

1шт.

53

395401A1

WEAR PAD

side 10x10 tube

2шт.

54

86991688

SHIM

side wear - 10 x 10 tube

1шт.

55

87414381

COVER ASSY

side tongue - 10 x 10 with reflector

2шт.

Includes reflector 1284365C2

1шт.

55

1284365C2

REFLECTOR

amber 1.97" x 4.3"

1шт.

Part of Side Tongue Cover Assembly P/N 87414381

1шт.

56

427897A1

SUPPORT

tongue cylinder

1шт.

57

395272A2

HYDRAULIC CYLINDER

telescoping tongue, Serial Range: -CBJ0018183

2шт.

57

86991010

HYDRAULIC CYLINDER

3 1/4" x 80" 3000 PSI no pins, Serial Range: CBJ0018184-CBJ022405

2шт.

57

87439452

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 2032mm Stroke

tongue, Start Serial: CBJ022492

2шт.

58

397663A1

HEADLESS PIN

1 1/2" x 4 25/32" ul, Serial Range: -CBJ0018531

1шт.

58

87423924

HEADLESS PIN

1 1/2" x 4 21/32", Start Serial: CBJ0018532

1шт.

59

86624088

PIN,6.35mm OD x 50.8mm L

, Serial Range: -CBJ0018531

12шт.

59

86632531

SNAP RING,#150, Ext

, Start Serial: CBJ0018532

12шт.

60

281047

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8, Full Thd

8шт.

61

427899A1

SPACER

bar cylinder mount lock

2шт.

65

398209A1

CLEVIS PIN

1 15/32" od x 4 7/32" ul, Serial Range: -CBJ0018531

5шт.

65

87415979

CLEVIS PIN

1 15/32" x 4 1/4'" ul, Start Serial: CBJ0018532

5шт.

66

427901A1

SHIM

tongue stop

1шт.

67

427903A1

BLOCK

tongue stop

3шт.

68

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

69

427905A1

ARM

assembly latch - right

1шт.

70

427907A1

ARM

assembly latch - left

1шт.

71

427909A1

SPACER

latch arm lock

4шт.

72

429834A1

HYDRAULIC CYLINDER

1" x 4", Serial Range: -CBJ0018183

1шт.

72

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA, Start Serial: CBJ0018184

1шт.

73

86632571

HEADED PIN,1/2" x 2 1/2"

2шт.

74

394818

COTTER PIN,M5 x 25

2шт.

77

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

2шт.

78

427911A1

TENSION SPRING

1/4"wr 1 1/2"od 8 1/2" lg

1шт.

79

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

80

86632559

NUT,3/8"-16, G5, Hvy

2шт.

81

86632697

CAP

poly sleeve cap 3/8" red

2шт.

82

385338A1

JACK

assembly 7000 lb sidewind 5" stroke

1шт.

82

22139

PIN

pull, 3/4"

1шт.

Not Shown

1шт.

83

PCC8607191

CHAIN

30,400 lb safety

1шт.

84

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

85

495-81080

WASHER,1 1/32" x 3" x .240"

1шт.

86

86511609

NUT,1"-8, G8

1шт.
