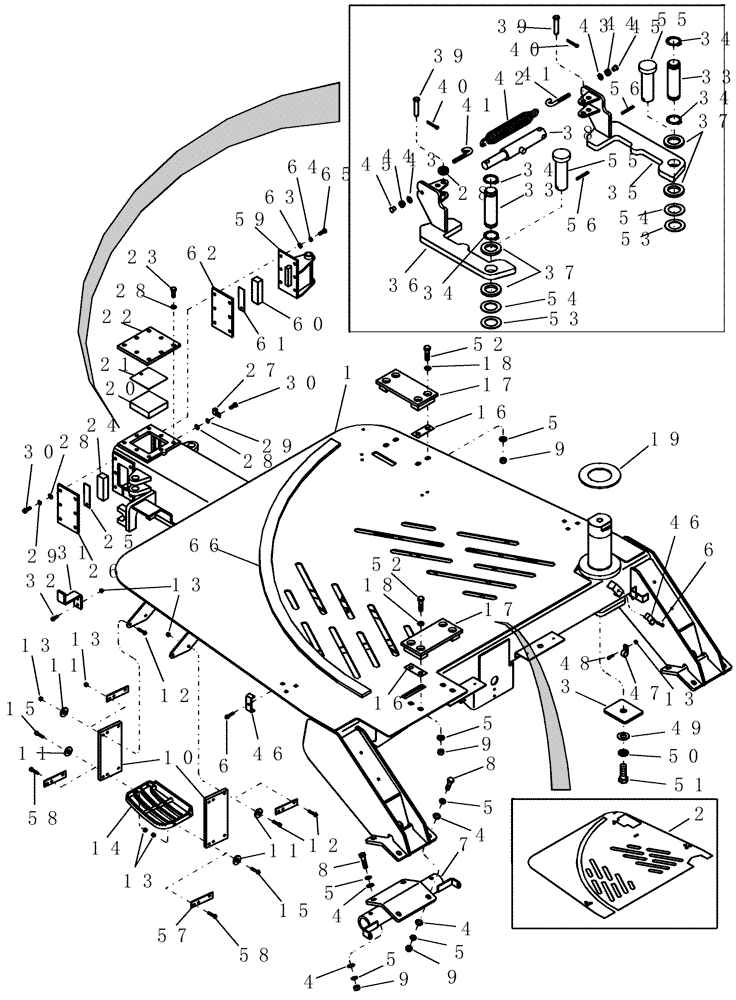

Запчасти Case IH 1200PT (F.10.G[13]) - MAIN FRAME AND HITCH 12 ROW, 16 ROW, 12/23 ROW, 16/31 ROW & 24 ROW (BSN CBJ025653) F - Frame Positioning

1

87436592

FRAME

carrier 30' with reflectors, Serial Range: -CBJ022251

1шт.

12/23 row planter

1шт.

1

87500899

FRAME

carrier 12/23 with reflectors, Start Serial: CBJ022252

1шт.

12/23 row planter

1шт.

1

87436595

FRAME

carrier 40' with reflectors, Serial Range: -CBJ022251

1шт.

16/31 row planter

1шт.

1

87500497

FRAME

carrier 16/31 with reflectors, Start Serial: CBJ022252

1шт.

16/31 row planter

1шт.

1

87414383

FRAME

carrier, 30' with reflectors, Serial Range: -CBJ022251

1шт.

12 row planter

1шт.

1

87500897

FRAME

carrier 12R30 with reflectors

1шт.

12 row planter

1шт.

1

87414385

FRAME

carrier, 40' with reflectors, Serial Range: -CBJ022251

1шт.

16 row planter

1шт.

1

87500476

FRAME

carrier 40' 16R30 with reflectors, Start Serial: CBJ022252

1шт.

16 row planter

1шт.

1

87415815

FRAME

40' 24R20

1шт.

24 row planter

1шт.

1

87459688

FRAME

24R carrier with decals

1шт.

1

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

1шт.

Part of 24 row Carrier Frame Assembly P/N 87459688

1шт.

Part of 30' Carrier Frame Assembly P/N 87500897 and 40' Carrier Frame Assembly P/N 87500476

1шт.

Part of 30' Carrier Frame Assembly P/N 8741483 and 40' Carrier Frame Assembly P/N 87414385

1шт.

1

419481A1

DECAL

crush danger

1шт.

Part of 24 row Carrier Frame Assembly P/N 87459688

1шт.

Part of 30' Carrier Frame Assembly P/N 87500897 and 40' Carrier Frame Assembly P/N 87500476

1шт.

Part of 30' Carrier Frame Assembly P/N 8741483 and 40' Carrier Frame Assembly P/N 87414385

1шт.

2

87401429

SHEET

non-skid platform, Serial Range: -CBJ0001756

1шт.

12 row and 16 row planters

1шт.

2

87406739

PLATFORM

sheet non-skid, Serial Range: CBJ0001757-CBJ0018305

1шт.

12 row and 16 row planters

1шт.

2

87401429

SHEET

non-skid platform, Start Serial: CBJ0018306

1шт.

12 row and 16 row planters

1шт.

2

87401429

SHEET

non-skid platform

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

3

427853A1

PLATE

retaining cap

1шт.

4

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

16шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

24шт.

6

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

5шт.

7

427855A1

MOUNTING PARTS

assembly wheel spindle

2шт.

7

87414636

MOUNTING PARTS

wheel spindle - 20"

2шт.

24 row planter

1шт.

8

280344

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

8шт.

9

86518194

NUT,3/4"-10, G8

16шт.

10

322425A1

SUPPORT

rubber hanger with holes 3/4" thk

2шт.

11

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

, Start Serial: CBJ0018325

8шт.

12 row and 16 row planters

1шт.

11

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

, Serial Range: -CBJ022251

8шт.

12/23 row and 16/31 row planters

1шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

, Start Serial: CBJ022252

8шт.

12/23 row, 16/31 row and 24 row planters

1шт.

12

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

12/23 row and 16/31 row planters

1шт.

12

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

9шт.

12 row and 16 row planters

1шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

14

97050C3

STEP

cast alum 14 29/32" x 8 19/32" x 1"

1шт.

15

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

, Serial Range: -CBJ0018731

4шт.

15

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

, Start Serial: CBJ0018730

8шт.

16

427859A1

SHIM

stop block

1шт.

17

404089A1

BLOCK

stop

2шт.

18

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

8шт.

19

441100A1

WASHER,144.3mm ID x 264mm OD x 9.53mm Thk

carrier rotating bar

1шт.

19

398208A2

WASHER,128.5mm ID x 264mm OD x 9.53mm Thk

poly 10 19/32"od x 3/8" thk

1шт.

12 row and 16 row planters

1шт.

20

87417939

PAD

top wear - 12 x 12 tube (narrow row)

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

20

395405A1

WEAR PAD

top - 12" x 12" tube 148.0 mm x 148.0 mm

1шт.

12 row and 16 row planters

1шт.

21

86991689

SHIM

top wear - 12 x 12 tube

1шт.

22

427963A1

PLATE

top cover - 12 x 12 tube, Serial Range: -CBJ0018305

1шт.

22

87419421

PLATE

top cover 12 x 12 tube, Start Serial: CBJ0018306

1шт.

23

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

8шт.

24

395409A1

WEAR PAD

5 27/32" x 1 25/32" x 1 3/8"

2шт.

25

86991690

SHIM

side wear - 12 x 12 tube

1шт.

26

87414387

COVER ASSY

side tongue - 12 x 12 with reflector

2шт.

Includes reflector 1284365C2

1шт.

16 row, 16/31 row and 24 row planters

1шт.

26

87414387

COVER ASSY

side tongue - 12 x 12 with reflector

1шт.

Includes reflector 1284365C2

1шт.

12 row and 12/23 row planters

1шт.

26

1284365C2

REFLECTOR

amber 1.97" x 4.3"

2шт.

27

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

3шт.

28

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531" x 1.062" x .095" HTS

34шт.

28

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

12 row and 16 row planters

1шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

24шт.

30

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

24шт.

31

432827A1

BRACKET

tongue cylinder support

1шт.

32

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

2шт.

33

87415979

CLEVIS PIN

1 15/32" x 4 1/4'" ul, Start Serial: CBJ0018532

2шт.

34

86624088

PIN,6.35mm OD x 50.8mm L

, Serial Range: -CBJ0018386

2шт.

34

86632531

SNAP RING,#150, Ext

, Start Serial: CBJ0018387

4шт.

35

427905A1

ARM

assembly latch - right

1шт.

36

427907A1

ARM

assembly latch - left

1шт.

37

427909A1

SPACER

latch arm lock

4шт.

38

429834A1

HYDRAULIC CYLINDER

1" x 4", Serial Range: -CBJ0018183

1шт.

38

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA, Start Serial: CBJ0018184

1шт.

39

86632571

HEADED PIN,1/2" x 2 1/2"

2шт.

40

394818

COTTER PIN,M5 x 25

2шт.

41

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

4шт.

42

427911A1

TENSION SPRING

1/4"wr 1 1/2"od 8 1/2" lg

2шт.

43

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

12шт.

44

231-1446

NUT,3/8" - 16, Gr 5

4шт.

44

86632559

NUT,3/8"-16, G5, Hvy

2шт.

12 row and 16 row planters

1шт.

45

86632697

CAP

poly sleeve cap 3/8" red

4шт.

46

427781A1

HOSE CLAMP

2 hose

6шт.

47

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

47

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

12 row and 16 row planters

1шт.

48

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

49

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

1шт.

Not required for 24 row planter

1шт.

50

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

Not required for 24 row planter

1шт.

51

87023127

BOLT,Hex, 1 1/4" - 7 x 2", Gr 8, Full Thd

1шт.

Not required for 24 row planter

1шт.

52

280128

BOLT,Hex, 3/4" - 10 x 3", Gr 8

8шт.

53

441115A1

WASHER

tongue latch shim, Start Serial: CBJ022252

1шт.

54

441116A1

WASHER

tongue latch shim, Start Serial: CBJ022252

1шт.

55

398209A1

CLEVIS PIN

1 15/32" od x 4 7/32" ul, Serial Range: -CBJ0018531

2шт.

56

86624088

PIN,6.35mm OD x 50.8mm L

, Serial Range: -CBJ0018531

2шт.

57

427857A1

PLATE

belting support, Serial Range: -CBJ0018324

4шт.

12 row and 16 row planters

1шт.

58

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

4шт.

12 row and 16 row planters

1шт.

59

87500384

PIVOT

mount, rear 30'

1шт.

30 foot models only

1шт.

60

395409A1

WEAR PAD

5 27/32" x 1 25/32" x 1 3/8"

1шт.

30 foot models only

1шт.

61

86991690

SHIM

side wear - 12 x 12 tube

1шт.

30 foot models only

1шт.

62

87414387

COVER ASSY

side tongue - 12 x 12 with reflector

1шт.

Includes reflector 1284365C2

1шт.

30 foot models only

1шт.

63

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531" x 1.062" x .095" HTS

6шт.

30 foot models only

1шт.

64

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

30 foot models only

1шт.

65

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

30 foot models only

1шт.

66

87420688

PLATE

roller reinforcement

1шт.
