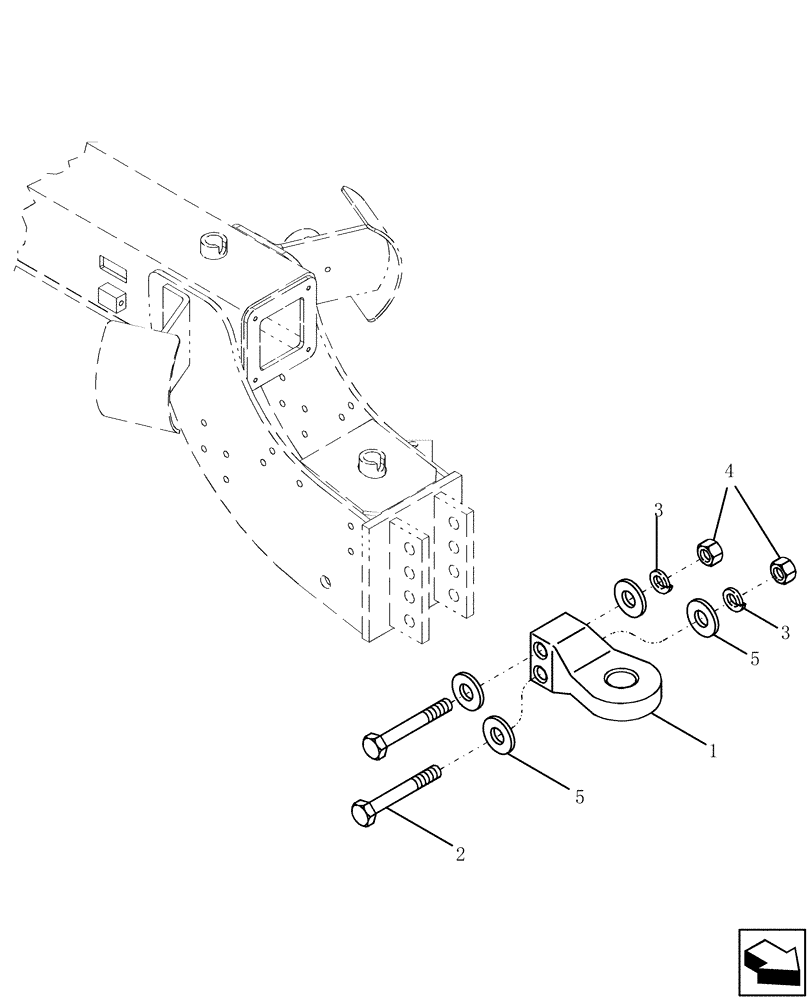

Запчасти Case IH 1200PT (F.10.G[12]) - HITCH F - Frame Positioning

1

427981A1

TOW BAR

hitch cat IV

1шт.

2

426-16112

BOLT,Hex, 1" - 8 x 7", Gr 8

, Serial Range: -CBJ0018352

2шт.

2

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

, Start Serial: CBJ0018353

2шт.

3

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

4

86511609

NUT,1"-8, G8

2шт.

5

87024780

WASHER,26.98mm ID x 50.8mm OD x 5.56mm Thk

1 1/16" x 2" x .219", HDN, Start Serial: CBJ0018353

4шт.
