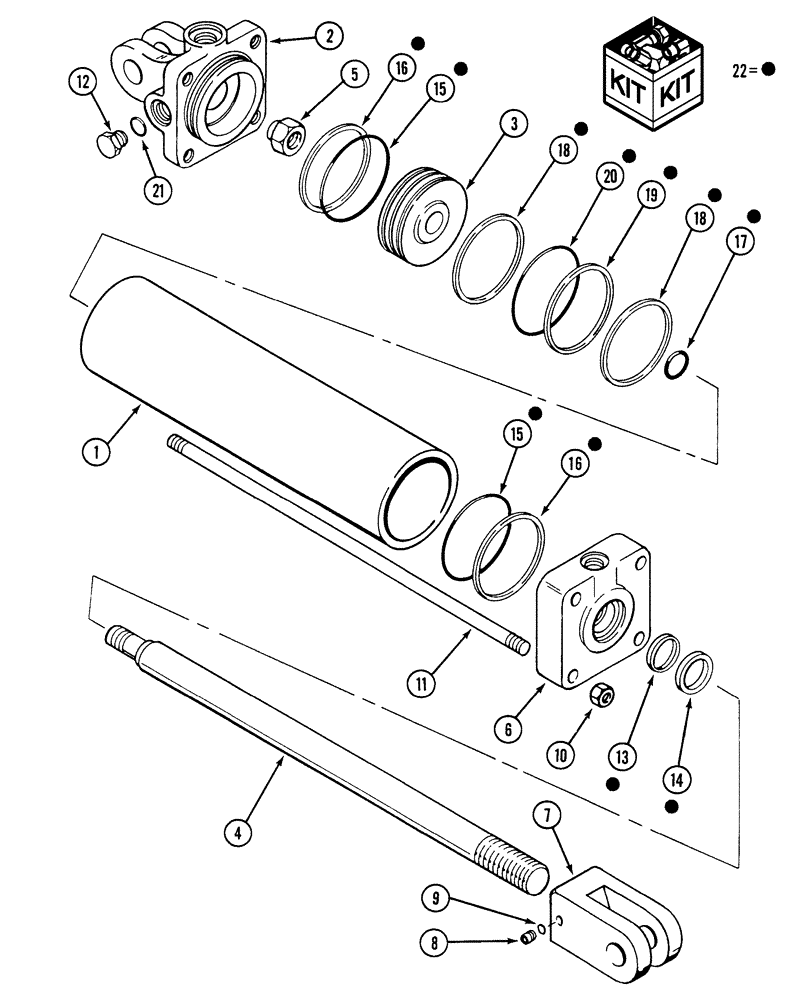

Запчасти Case IH 1200PT (A.10.A[09]) - HYDRAULIC CYLINDER - 380311A2 A - Distribution Systems

0

380311A2

HYDRAULIC CYLINDER

4x18 hti, Serial Range: -CBJ0018184

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE CYLINDER

1шт.

2

1282336C1

HEAD

cylinder clevis cap 4" Iowa

1шт.

3

92521C1

PISTON

hyd cylinder

1шт.

4

386999A1

PISTON ROD

1шт.

5

281010

LOCK NUT,7/8"-14, GC

1шт.

6

386998A1

CYLINDER END CAP

head, front

1шт.

7

80558C1

CLEVIS,1 -3/4" - 12

hyd cylinder piston rod

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

11

387000A1

BOLT

tie

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 143205A1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 143205A1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 143205A1

1шт.

16

NSS

NOT SOLD SEPARAT

BACK UP

2шт.

Included in repair kit 143205A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 143205A1

1шт.

18

NSS

NOT SOLD SEPARAT

RING Wear

2шт.

Included in repair kit 143205A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 143205A1

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL PISTON

1шт.

Included in repair kit 143205A1

1шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

143205A1

SEAL KIT

kit

1шт.
