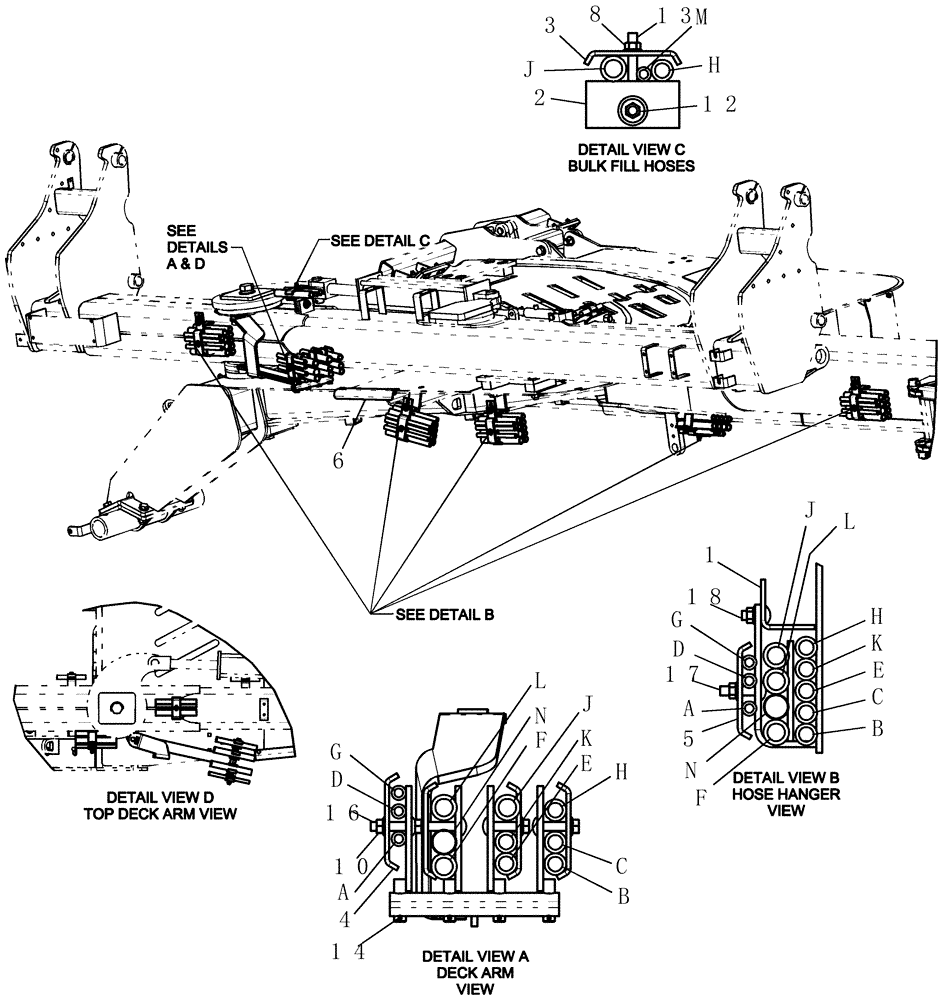

Запчасти Case IH 1200PT (F.10.G[10]) - LAYOUT - TWO STAGE HOSE CARRIER HOSE ROUTING - BRACKETS F - Frame Positioning

1

87500022

BRACKET

hose retainer

1шт.

2

87500020

SUPPORT

hose holder

1шт.

3

87500057

HOSE CLAMP

1шт.

4

87500057

HOSE CLAMP

4шт.

5

87500057

HOSE CLAMP

1шт.

6

87500061

GUARD

hose protector

1шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

11

88902

NUT,3/8"-16

1шт.

12

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

13

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

14

80755

COTTER PIN,1/8" OD x 1" L

4шт.

15

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

16

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

4шт.

17

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

18

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

20

495-81182

WASHER,21/32" x 1 1/4" x .060"

1шт.

a

1264171C1

HYDRAULIC HOSE,6.40 mm ID x 5590.00 mm, SAE 100R1

1/4" x 215" fl

1шт.

12 row and 12/23 row planters

1шт.

Tongue latch cylinder - base end

1шт.

a

87501984

HYDRAULIC HOSE

1/4" x 240" fl, 3/8" fjic x 3/8" fjic

1шт.

16 row, 16/31 row and 24 row planters

1шт.

Tongue latch cylinder - base end

1шт.

b

87454638

HYDRAULIC HOSE,16mm ID x 11560mm L, SAE 100R17

5/8" x 455" fl

1шт.

Lift and fold raise - supply

1шт.

12 row and 12/23 row planters

1шт.

b

87448894

HYDRAULIC HOSE,16mm ID x 12825mm L, SAE 100R17

5/8" x 505" fl

1шт.

Lift and fold raise - supply

1шт.

16 row, 16/31 row and 24 row planters

1шт.

c

87454629

HYDRAULIC HOSE

5/8" x 450" fl

1шт.

12 row and 12/23 row planters

1шт.

Lift and fold lower - return

1шт.

c

87448893

HYDRAULIC HOSE,16mm ID x 12700mm L, SAE 100R17

5/8" x 500" fl

1шт.

Lift and fold lower - return

1шт.

16 row, 16/31 row and 24 row planters

1шт.

d

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill and RH fan - case drain

1шт.

d

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

Bulk fill and RH fan - case drain

1шт.

16 row, 16/31 row and 24 row planters

1шт.

e

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12 row planter

1шт.

RH multivalve - supply

1шт.

e

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

12/23 row planter

1шт.

RH multivalve - supply

1шт.

e

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

16 row planter

1шт.

RH multivalve - supply

1шт.

e

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

RH multivalve - supply

1шт.

16/31 row and 24 row planters

1шт.

f

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12 row planter

1шт.

RH multivalve - return

1шт.

f

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

12/23 row planter

1шт.

RH multivalve - return

1шт.

f

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

16 row planter

1шт.

RH multivalve - return

1шт.

f

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

RH multivalve - return

1шт.

16/31 row and 24 row planters

1шт.

g

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12/23 row planter

1шт.

LH fan - case drain

1шт.

g

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

16/31 row and 24 row planters

1шт.

LH fan - case drain

1шт.

h

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill - supply

1шт.

h

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

Bulk fill - supply

1шт.

16 row, 16/31 row and 24 row planters

1шт.

j

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill - return

1шт.

j

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

Bulk fill - return

1шт.

16 row, 16/31 row and 24 row planters

1шт.

k

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12/23 row planter

1шт.

LH multivalve - supply

1шт.

k

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

LH multivalve - supply

1шт.

16/31 row and 24 row planters

1шт.

l

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12/23 row planter

1шт.

LH multivalve - return

1шт.

l

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

LH multivalve - return

1шт.

16/31 row and 24 row planters

1шт.

m

813006C2

HYDRAULIC HOSE

3/8" x 85" fl

1шт.

Bulk fill - case drain

1шт.

12 row, 16 row, 12/23 row, 16/31 row and 24 row planters

1шт.

n

87454180

HARNESS

30' power

1шт.

12 row and 12/23 row planters

1шт.

Main power supply harness

1шт.

n

87454181

HARNESS

40' power

1шт.

16 row, 16/31 row and 24 row planters

1шт.

Main power supply harness

1шт.
