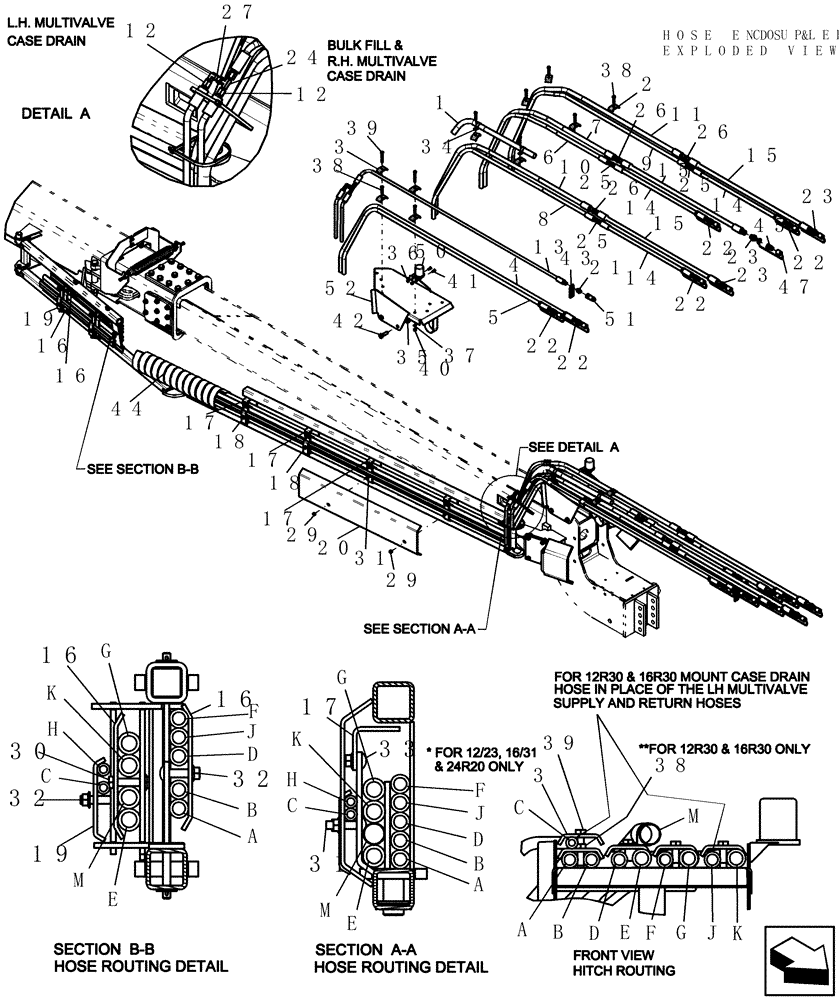

Запчасти Case IH 1200PT (F.10.G[09]) - LAYOUT TWO STAGE HOSE CARRIER ROUTING ALL SIZES (ASN CBJ025654) F - Frame Positioning

1

87454181

HARNESS

40' power

1шт.

2

CC-105

HOSE CLAMP

for 2 hoses

8шт.

3

CC-105

HOSE CLAMP

for 2 hoses

2шт.

4

87448893

HYDRAULIC HOSE,16mm ID x 12700mm L, SAE 100R17

5/8" x 500" fl

1шт.

5

87448894

HYDRAULIC HOSE,16mm ID x 12825mm L, SAE 100R17

5/8" x 505" fl

1шт.

6

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

7

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

8

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

9

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

10

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

11

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

12

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

2шт.

13

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

14

451592A1

HOSE,16mm ID x 680mm L

extension press

3шт.

15

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

3шт.

16

87500063

HOSE CLAMP

hyd

4шт.

17

87500022

BRACKET

hose retainer

4шт.

18

87500057

HOSE CLAMP

2шт.

19

87500057

HOSE CLAMP

2шт.

20

87501803

TRAY

shield hose with reflector

1шт.

21

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

22

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

5шт.

23

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

3шт.

24

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

25

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

3шт.

26

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

3шт.

27

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

28

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

30

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

31

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

4шт.

32

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

4шт.

33

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

34

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

35

85700693

NUT,5/8" - 11, Gr C

4шт.

36

280129

NUT,1/4"-20

2шт.

37

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

38

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

39

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

40

9628503

NUT,3/8"-16, G5

8шт.

41

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

42

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

43

86984798

TAG

warning, case drain

1шт.

43

87527165

WARNING DECAL

Case Drain French

1шт.

44

87500093

HOSE

sleeve wrap 762 mm

1шт.

45

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

8шт.

46

333717A1

CAP

female qc blue

2шт.

47

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

48

333721A1

CAP

female quick coupler red

2шт.

49

333722A1

CAP

female quick coupler green

2шт.

50

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

51

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

52

87461078

STAND

direct drive hose

1шт.

a

87454638

HYDRAULIC HOSE,16mm ID x 11560mm L, SAE 100R17

5/8" x 455" fl

1шт.

Lift and fold raise - supply

1шт.

12 row and 12/23 row planters

1шт.

a

87448894

HYDRAULIC HOSE,16mm ID x 12825mm L, SAE 100R17

5/8" x 505" fl

1шт.

Lift and fold raise - supply

1шт.

16 row, 16/31 row and 24 row planters

1шт.

b

87454629

HYDRAULIC HOSE

5/8" x 450" fl

1шт.

12 row and 12/23 row planters

1шт.

Lift and fold lower - return

1шт.

b

87448893

HYDRAULIC HOSE,16mm ID x 12700mm L, SAE 100R17

5/8" x 500" fl

1шт.

Lift and fold lower - return

1шт.

16 row, 16/31 row and 24 row planters

1шт.

c

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill and RH fan - case drain

1шт.

c

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

Bulk fill and RH fan - case drain

1шт.

16 row, 16/31 row and 24 row planters

1шт.

c & h

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

Direct drive case drain extension

1шт.

12 row, 16 row, 12/23 row, 16/31 row and 24 row planters

1шт.

d

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12 row planter

1шт.

RH multivalve - supply

1шт.

d

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

16 row planter

1шт.

RH multivalve - supply

1шт.

d

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

12/23 row planter

1шт.

RH multivalve - supply

1шт.

d

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

RH multivalve - supply

1шт.

16/31 row and 24 row planters

1шт.

d

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

12 row and 16 row planters

1шт.

RH multivalve - supply extension

1шт.

e

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12 row planter

1шт.

RH multivalve - return

1шт.

e

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

16 row planter

1шт.

RH multivalve - return

1шт.

e

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

12/23 row planter

1шт.

RH multivalve - return

1шт.

e

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

RH multivalve - return

1шт.

16/31 row and 24 row planters

1шт.

e

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

12 row and 16 row planters

1шт.

RH multivalve - return extension

1шт.

f

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill - supply

1шт.

f

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

Bulk fill - supply

1шт.

16 row, 16/31 row and 24 row planters

1шт.

f

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

Bulk fill - supply extension

1шт.

12 row, 16 row, 12/23 row, 16/31 row and 24 row planters

1шт.

g

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill - return

1шт.

g

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

Bulk fill - return

1шт.

16 row, 16/31 row and 24 row planters

1шт.

g

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

Bulk fill - return extension

1шт.

12 row, 16 row, 12/23 row, 16/31 row and 24 row planters

1шт.

h

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12/23 row planter

1шт.

LH fan - case drain

1шт.

h

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

16/31 row and 24 row planters

1шт.

LH fan - case drain

1шт.

j

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12/23 row planter

1шт.

LH multivalve - supply

1шт.

j

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

LH multivalve - supply

1шт.

16/31 row and 24 row planters

1шт.

j

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

LH multivalve - supply extension

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

k

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12/23 row planter

1шт.

LH multivalve - return

1шт.

k

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

LH multivalve - return

1шт.

16/31 row and 24 row planters

1шт.

k

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

LH multivalve - return extension

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

m

87454180

HARNESS

30' power

1шт.

12 row and 12/23 row planters

1шт.

m

87454181

HARNESS

40' power

1шт.

16 row, 16/31 row and 24 row planters

1шт.
