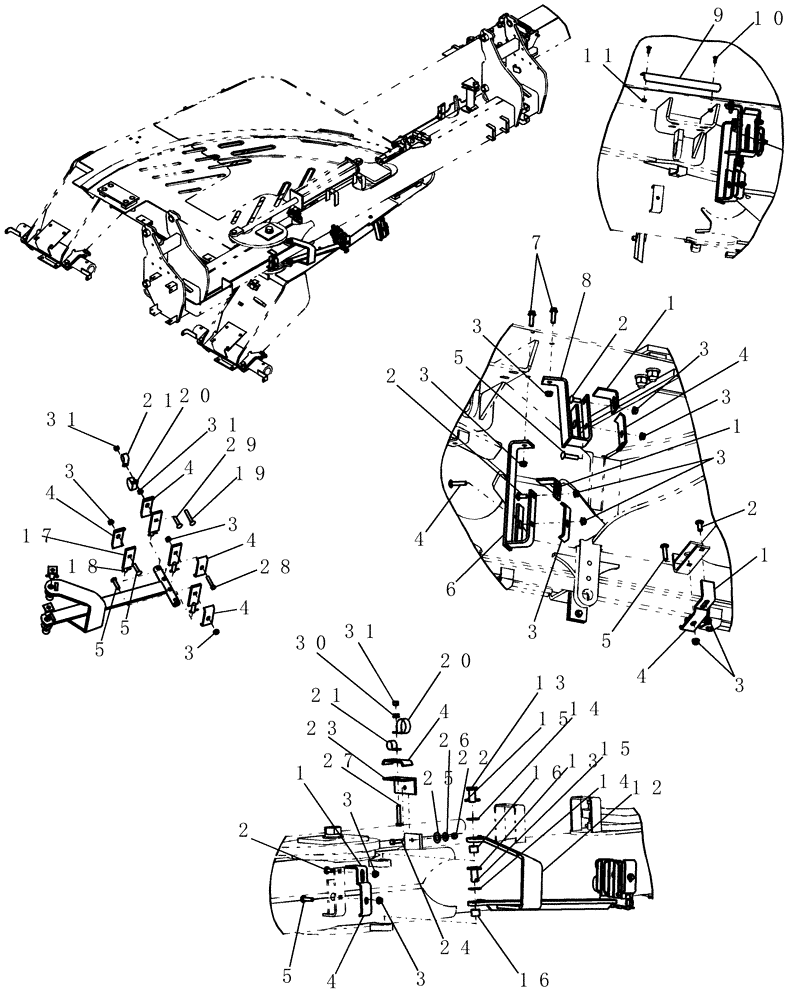

Запчасти Case IH 1200PT (F.10.G[08]) - LAYOUT HOSE CARRIER ROUTING 30 AND 40 (ASN CBJ022252) F - Frame Positioning

1

87500022

BRACKET

hose retainer

4шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

14шт.

4

87500057

HOSE CLAMP

9шт.

5

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

7шт.

6

87445084

HANGER

hose mount

1шт.

7

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

2шт.

8

87500067

BRACKET

mount hose holder

1шт.

9

87500061

GUARD

hose protector

1шт.

10

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

12

87504779

SUPPORT

link hose

1шт.

13

87447975

PIN

hose support

2шт.

14

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

2шт.

15

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

16

87500085

BUSHING

Nylatron* 1" x 3/4" x 3/4" long

2шт.

17

87500065

MOUNTING PLATE

hose swivel

4шт.

18

80755

COTTER PIN,1/8" OD x 1" L

4шт.

19

280722

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

1шт.

20

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

21

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

22

88902

NUT,3/8"-16

1шт.

23

87500020

SUPPORT

hose holder

1шт.

24

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

25

86624155

WASHER,0.66" ID x 1.25" OD x 0.06" Thk

1шт.

26

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

27

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

28

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

30

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

31

88902

NUT,3/8"-16

2шт.
