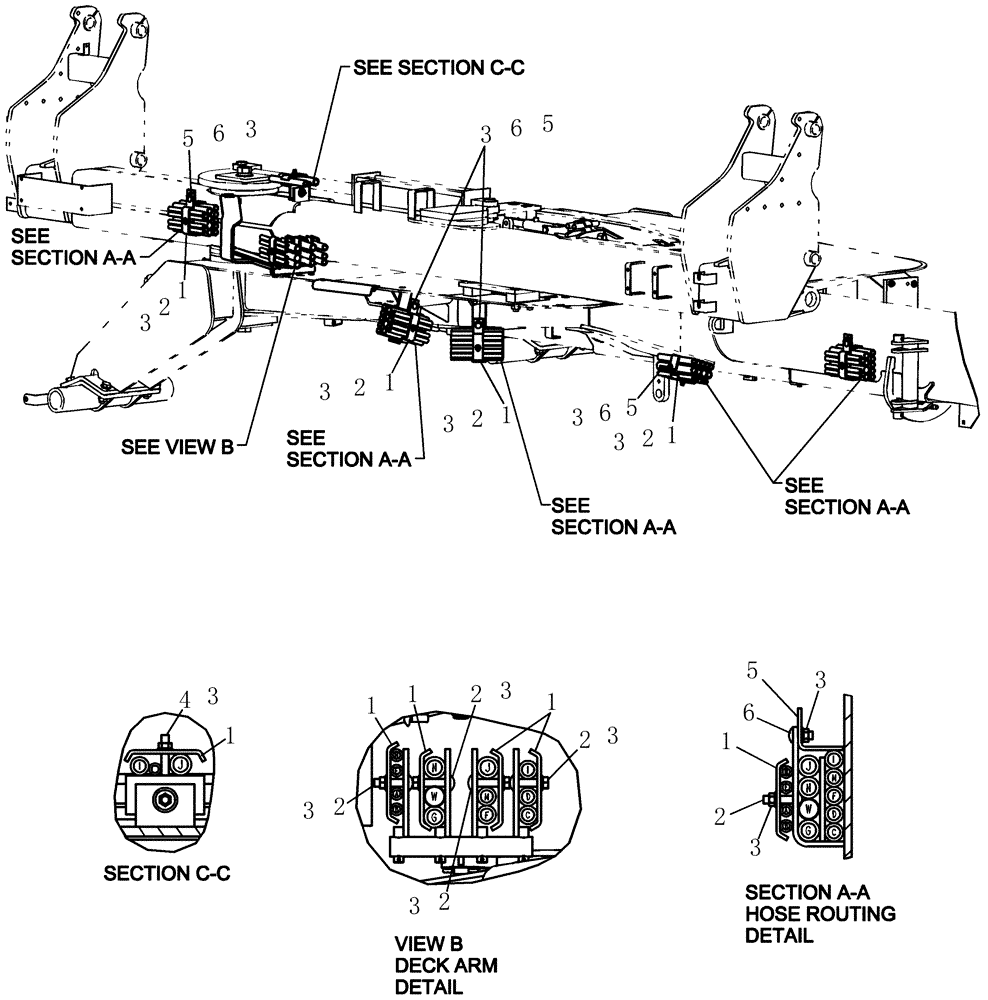

Запчасти Case IH 1200PT (F.10.G[07]) - LAYOUT HOSE CARRIER HOSE ROUTING 16/31 ROW & 24 ROW - REAR (ASN CBJ022252) F - Frame Positioning

1

87500057

HOSE CLAMP

10шт.

2

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

9шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

15шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

5

87500022

BRACKET

hose retainer

5шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

a

135411A1

HYDRAULIC HOSE

3/8" x 410" fl

1шт.

Inner tongue cylinder - rod end

1шт.

b

135411A1

HYDRAULIC HOSE

3/8" x 410" fl

1шт.

Inner tongue cylinder - base end

1шт.

c

87448894

HYDRAULIC HOSE,16mm ID x 12825mm L, SAE 100R17

5/8" x 505" fl

1шт.

Lift and fold raise - supply

1шт.

d

87448893

HYDRAULIC HOSE,16mm ID x 12700mm L, SAE 100R17

5/8" x 500" fl

1шт.

Lift and fold lower - return

1шт.

e

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

Bulk fill and RH fan - case drain

1шт.

f

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

RH multivalve - supply

1шт.

g

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

RH multivalve - return

1шт.

h

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

Front Fan Case Drain

1шт.

i

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

Bulk fill - supply

1шт.

j

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

Bulk fill - return

1шт.

m

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

LH multivalve - supply

1шт.

n

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

LH multivalve - return

1шт.

w

87454181

HARNESS

40' power

1шт.

Harness - Main Power Supply

1шт.
