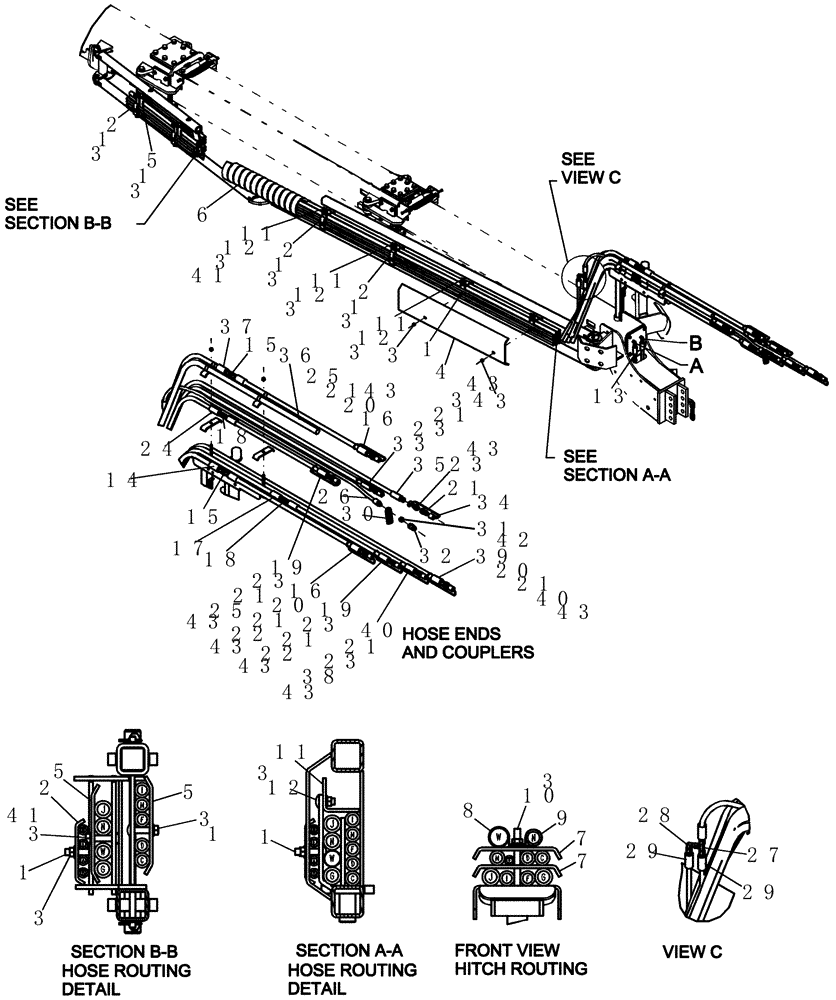

Запчасти Case IH 1200PT (F.10.G[06]) - LAYOUT HOSE CARRIER HOSE ROUTING 16/31 ROW & 24 ROW - FRONT (ASN CBJ022252) F - Frame Positioning

1

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

8шт.

2

87500057

HOSE CLAMP

4шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

16шт.

4

87501803

TRAY

shield hose with reflector

1шт.

5

87500063

HOSE CLAMP

hyd

4шт.

6

87500093

HOSE

sleeve wrap 762 mm

1шт.

7

444317A1

CLAMP

4 hoses

4шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

9

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

10

84192885

BOLT

Hex, 3/8"-16 x 3 3/4", G5

2шт.

11

87500022

BRACKET

hose retainer

4шт.

12

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

135411A1

HYDRAULIC HOSE

3/8" x 410" fl

2шт.

14

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

15

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

16

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

2шт.

17

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

18

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

19

451592A1

HOSE,16mm ID x 680mm L

extension press

2шт.

20

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

3шт.

Includes O-Ring

1шт.

21

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

8шт.

22

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

23

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

5шт.

Includes O-Ring

1шт.

24

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

25

333717A1

CAP

female qc blue

2шт.

26

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

27

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

28

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

29

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

2шт.

30

86984798

TAG

warning, case drain

1шт.

30

87527165

WARNING DECAL

Case Drain French

1шт.

31

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Includes O-Ring

1шт.

32

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

33

87448893

HYDRAULIC HOSE,16mm ID x 12700mm L, SAE 100R17

5/8" x 500" fl

1шт.

34

333721A1

CAP

female quick coupler red

2шт.

35

87448894

HYDRAULIC HOSE,16mm ID x 12825mm L, SAE 100R17

5/8" x 505" fl

1шт.

36

87454181

HARNESS

40' power

1шт.

37

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

38

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

39

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

40

333722A1

CAP

female quick coupler green

2шт.

41

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

42

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

a

135411A1

HYDRAULIC HOSE

3/8" x 410" fl

1шт.

Inner tongue cylinder - rod end

1шт.

b

135411A1

HYDRAULIC HOSE

3/8" x 410" fl

1шт.

Inner tongue cylinder - base end

1шт.

c

87448894

HYDRAULIC HOSE,16mm ID x 12825mm L, SAE 100R17

5/8" x 505" fl

1шт.

Lift and fold raise - supply

1шт.

d

87448893

HYDRAULIC HOSE,16mm ID x 12700mm L, SAE 100R17

5/8" x 500" fl

1шт.

Lift and fold lower - return

1шт.

e

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

Bulk fill and RH fan - case drain

1шт.

f

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

RH multivalve - supply

1шт.

g

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

RH multivalve - return

1шт.

h

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

Front Fan Case Drain

1шт.

e,h

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

Direct Drive Case Drain Extension

1шт.

i

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

Bulk fill - supply

1шт.

i

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

Bulk fill - supply extension

1шт.

j

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

Bulk fill - return

1шт.

j

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

Bulk fill - return extension

1шт.

m

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

LH multivalve - supply

1шт.

m

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

LH multivalve - supply extension

1шт.

n

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

LH multivalve - return

1шт.

n

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

LH multivalve - return extension

1шт.

w

87454181

HARNESS

40' power

1шт.

Harness - Main Power Supply

1шт.
