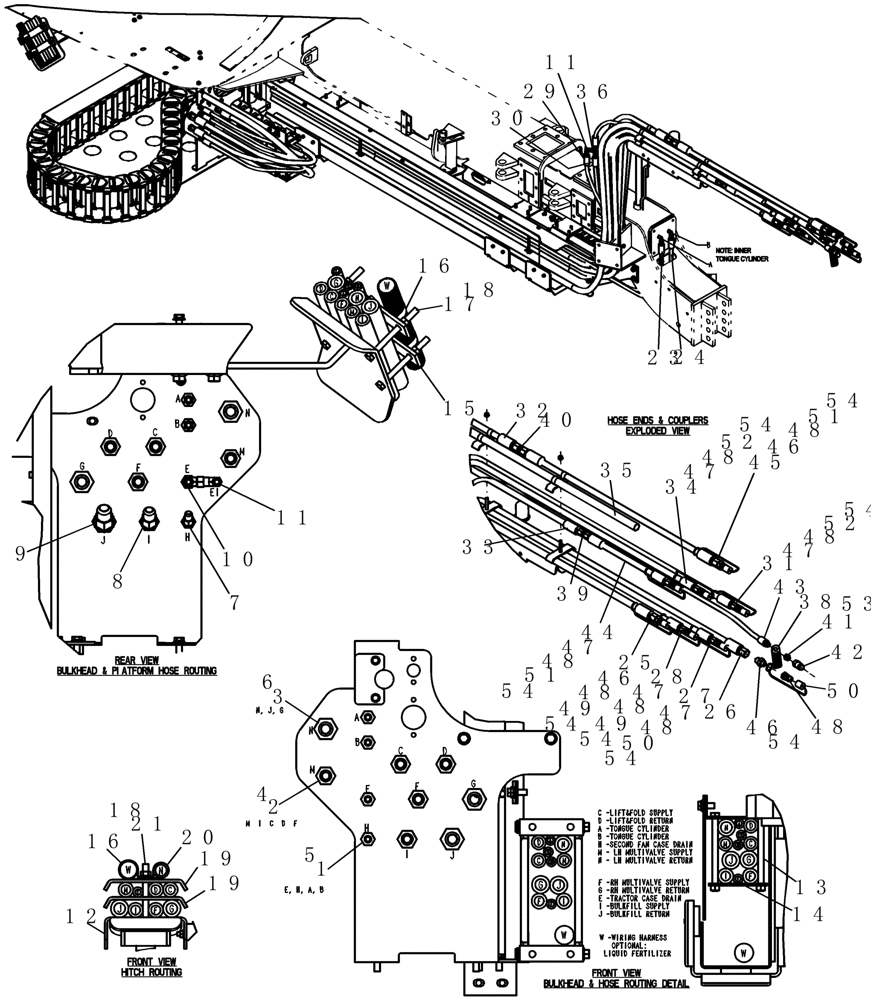

Запчасти Case IH 1200PT (F.10.G[05]) - LAYOUT TAKE UP CARRIER HOSE ROUTING 16/31 ROW (BTW CBJ0011171 AND CBJ022251) F - Frame Positioning

1

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

4шт.

2

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

5шт.

3

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

3шт.

4

595460

BHD LOCK NUT,7/8" - 14

5шт.

5

86525

LOCK NUT,Blkhd, 9/16"-18

4шт.

6

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

3шт.

7

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

8

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

10

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

11

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

12

427941A4

SUPPORT

hose holder

1шт.

13

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

14

87422464

CLAMP BRACKET

hose holder

4шт.

15

444333A1

BRACKET

hose holder

2шт.

16

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

17

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

4шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

7шт.

19

444317A1

CLAMP

4 hoses

6шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

21

84192885

BOLT

Hex, 3/8"-16 x 3 3/4", G5

2шт.

22

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

1шт.

23

193225A1

HYDRAULIC HOSE

3/8" x 325" fl

1шт.

24

193225A1

HYDRAULIC HOSE

3/8" x 325" fl

1шт.

25

426732A1

HYDRAULIC HOSE,19mm ID x 9400mm L

3/4" x 370" fl

1шт.

26

410542A1

HYDRAULIC HOSE

3/4" x 432" fl

1шт.

27

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

1шт.

28

426728A1

HYDRAULIC HOSE,16mm ID x 10300mm L

5/8" x 405" fl

1шт.

29

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

1шт.

30

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

1шт.

31

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

1шт.

32

426732A1

HYDRAULIC HOSE,19mm ID x 9400mm L

3/4" x 370" fl

1шт.

33

426728A1

HYDRAULIC HOSE,16mm ID x 10300mm L

5/8" x 405" fl

1шт.

34

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

1шт.

35

398137A1

HARNESS

40' power

1шт.

36

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

37

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

38

86984798

TAG

warning, case drain

1шт.

39

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

38

87527165

WARNING DECAL

Case Drain French

1шт.

40

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

41

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Includes O-Ring

1шт.

42

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

43

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

44

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

45

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

46

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

3шт.

Includes O-Ring

1шт.

47

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

5шт.

Includes O-Ring

1шт.

48

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

8шт.

49

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

50

333722A1

CAP

female quick coupler green

2шт.

51

333717A1

CAP

female qc blue

2шт.

52

333721A1

CAP

female quick coupler red

2шт.

53

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

54

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

a

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

Inner tongue cylinder - rod end

1шт.

a

193225A1

HYDRAULIC HOSE

3/8" x 325" fl

1шт.

Inner tongue cylinder - rod end

1шт.

b

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

Inner tongue cylinder - base end

1шт.

b

193225A1

HYDRAULIC HOSE

3/8" x 325" fl

1шт.

Inner tongue cylinder - base end

1шт.

c

410535A2

HYDRAULIC HOSE

5/8" x 119" fl

1шт.

Lift and fold raise - supply

1шт.

c

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

1шт.

Lift and fold raise - supply

1шт.

c

333721A1

CAP

female quick coupler red

1шт.

Lift and fold raise - supply

1шт.

d

410536A2

HYDRAULIC HOSE

5/8" x 114" fl

1шт.

Lift and fold lower - return

1шт.

d

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

1шт.

Lift and fold lower - return

1шт.

d

333721A1

CAP

female quick coupler red

1шт.

Lift and fold lower - return

1шт.

e

139519C2

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

Bulk fill - case drain

1шт.

e

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

1шт.

Bulk fill - case drain

1шт.

e

1284292C1

HYDRAULIC HOSE

3/8" x 245" fl

1шт.

Tractor Case Drain

1шт.

e

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

1шт.

Tractor Case Drain

1шт.

f

87424845

HYDRAULIC HOSE

5/8" x 180" fl

1шт.

RH multivalve - supply

1шт.

f

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

1шт.

RH multivalve - supply

1шт.

f

333722A1

CAP

female quick coupler green

1шт.

RH multivalve - supply

1шт.

g

87424846

HYDRAULIC HOSE

3/4" x 182" fl

1шт.

RH multivalve - return

1шт.

g

410542A1

HYDRAULIC HOSE

3/4" x 432" fl

1шт.

RH multivalve - return

1шт.

g

333722A1

CAP

female quick coupler green

1шт.

RH multivalve - return

1шт.

h

1284292C1

HYDRAULIC HOSE

3/8" x 245" fl

1шт.

Second Fan Case Drain

1шт.

h

1284268C1

HYDRAULIC HOSE

3/8" x 340" fl

1шт.

Second Fan Case Drain

1шт.

e & h

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

Direct Drive Case Drain Extension

1шт.

i

426726A1

HYDRAULIC HOSE,16.00 mm ID x 3450.00 mm, SAE 100R17

5/8" x 135" fl

1шт.

Bulk fill - supply

1шт.

i

426728A1

HYDRAULIC HOSE,16mm ID x 10300mm L

5/8" x 405" fl

1шт.

Bulk fill - supply

1шт.

i

333719A1

CAP

hydraulic quick coupler female, yellow

1шт.

Bulk fill - supply

1шт.

j

426725A1

HYDRAULIC HOSE,19.00 mm ID x 3450.00 mm, SAE 100R17

3/4" x 135" fl

1шт.

Bulk fill - return

1шт.

j

436732A1

GUIDE

tube assembly spring

1шт.

Bulk fill - return

1шт.

j

333719A1

CAP

hydraulic quick coupler female, yellow

1шт.

Bulk fill - return

1шт.

m

451579A1

HYDRAULIC HOSE

5/8" x 300" fl

1шт.

Second Fan and Seed Drive Supply

1шт.

m

426728A1

HYDRAULIC HOSE,16mm ID x 10300mm L

5/8" x 405" fl

1шт.

Second Fan and Seed Drive Supply

1шт.

m

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

Direct Drive Extension

1шт.

m

333717A1

CAP

female qc blue

1шт.

Direct Drive Extension

1шт.

n

451580A1

HYDRAULIC HOSE

3/4" x 300" fl

1шт.

Second Fan and Seed Drive Return

1шт.

n

426732A1

HYDRAULIC HOSE,19mm ID x 9400mm L

3/4" x 370" fl

1шт.

Second Fan and Seed Drive Return

1шт.

n

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

Direct Drive Extension

1шт.

n

333717A1

CAP

female qc blue

1шт.

Direct Drive Extension

1шт.

w

398137A1

HARNESS

40' power

1шт.

Harness - Main Power Supply

1шт.

w

398137A1

HARNESS

40' power

1шт.

Harness - Main Power Supply

1шт.
