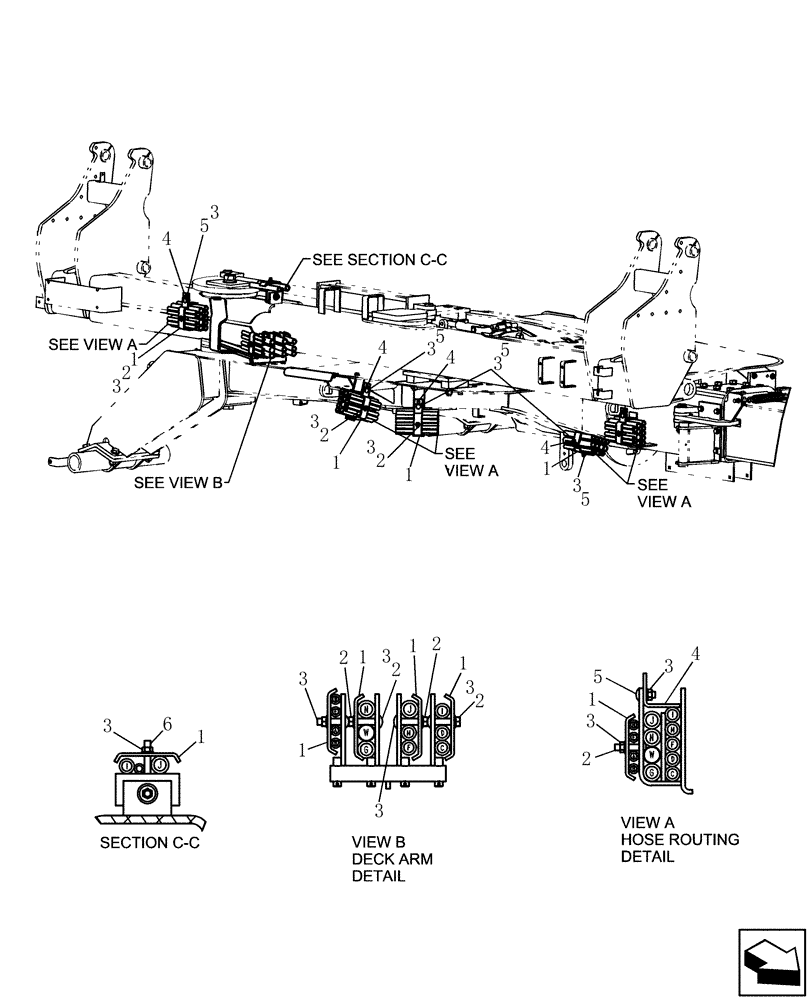

Запчасти Case IH 1200PT (F.10.G[03]) - LAYOUT TAKE UP CARRIER HOSE ROUTING 12/23 ROW (ASN CBJ022252) F - Frame Positioning

1

87500057

HOSE CLAMP

10шт.

2

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

9шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

15шт.

4

87500022

BRACKET

hose retainer

5шт.

5

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

6

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

a

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

b

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

c

87454638

HYDRAULIC HOSE,16mm ID x 11560mm L, SAE 100R17

5/8" x 455" fl

1шт.

d

87454629

HYDRAULIC HOSE

5/8" x 450" fl

1шт.

e

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

f

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

g

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

h

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

i

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

j

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

m

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

n

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

w

87454180

HARNESS

30' power

1шт.
