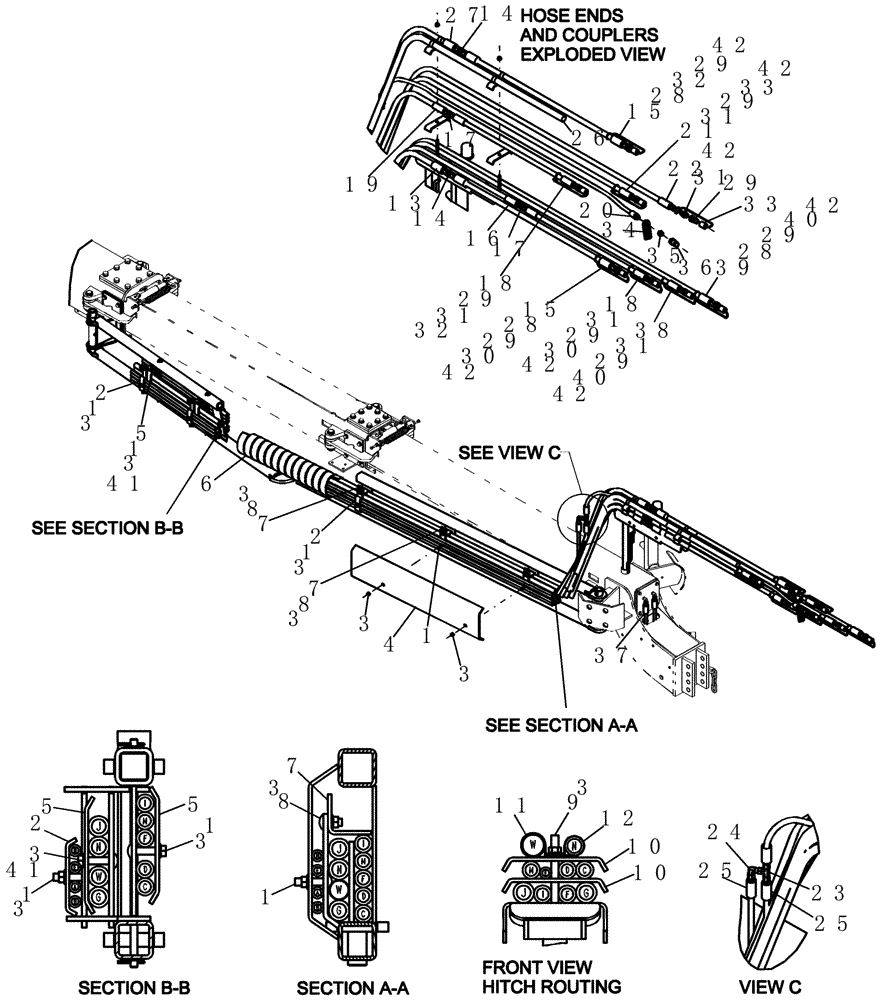

Запчасти Case IH 1200PT (F.10.G[02]) - LAYOUT TAKE UP CARRIER HOSE ROUTING 12/23 ROW (BTW CBJ0011171 AND CBJ022251) F - Frame Positioning

1

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

9шт.

2

87500057

HOSE CLAMP

3шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

14шт.

4

87501803

TRAY

shield hose with reflector

1шт.

5

87500063

HOSE CLAMP

hyd

4шт.

6

87500093

HOSE

sleeve wrap 762 mm

1шт.

7

87500022

BRACKET

hose retainer

4шт.

8

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

9

84192885

BOLT

Hex, 3/8"-16 x 3 3/4", G5

2шт.

10

444317A1

CLAMP

4 hoses

4шт.

11

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

12

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

13

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

14

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

15

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

2шт.

16

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

18

451592A1

HOSE,16mm ID x 680mm L

extension press

2шт.

19

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

20

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

21

87454629

HYDRAULIC HOSE

5/8" x 450" fl

1шт.

22

87454638

HYDRAULIC HOSE,16mm ID x 11560mm L, SAE 100R17

5/8" x 455" fl

1шт.

23

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

24

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

25

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

2шт.

26

87454180

HARNESS

30' power

1шт.

27

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

28

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

3шт.

Includes O-Ring

1шт.

29

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

8шт.

30

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

31

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

5шт.

Includes O-Ring

1шт.

32

333717A1

CAP

female qc blue

2шт.

33

333721A1

CAP

female quick coupler red

2шт.

34

86984798

TAG

warning, case drain

1шт.

34

87527165

WARNING DECAL

Case Drain French

1шт.

35

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Includes O-Ring

1шт.

36

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

37

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

2шт.

38

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

39

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

40

333722A1

CAP

female quick coupler green

2шт.

41

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

42

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

a

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

Inner tongue cylinder - rod end

1шт.

b

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

Inner tongue cylinder - base end

1шт.

c

87454638

HYDRAULIC HOSE,16mm ID x 11560mm L, SAE 100R17

5/8" x 455" fl

1шт.

Lift and fold raise - supply

1шт.

d

87454629

HYDRAULIC HOSE

5/8" x 450" fl

1шт.

Lift and fold lower - return

1шт.

e

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

Bulk fill and RH fan - case drain

1шт.

f

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

RH multivalve - supply

1шт.

g

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

RH multivalve - return

1шт.

h

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

Front Fan Case Drain

1шт.

e,h

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

Direct Drive Case Drain Extension

1шт.

i

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

Bulk fill - supply

1шт.

i

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

Bulk fill - supply extension

1шт.

j

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

Bulk fill - return

1шт.

j

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

Bulk fill - return extension

1шт.

m

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

LH multivalve - supply

1шт.

m

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

LH multivalve - supply extension

1шт.

n

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

LH multivalve - return

1шт.

n

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

LH multivalve - return extension

1шт.

w

87454180

HARNESS

30' power

1шт.

Harness - Main Power Supply

1шт.
