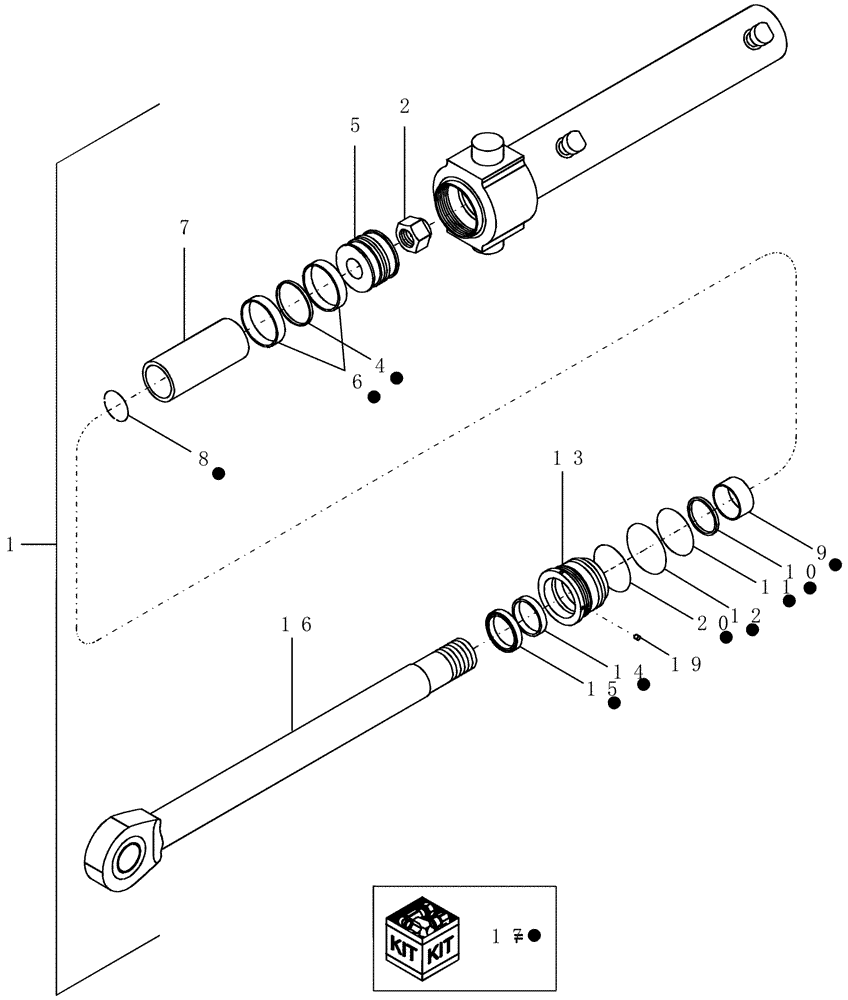

Запчасти Case IH 1200PT (A.10.A[08]) - HYDRAULIC CYLINDER - 87439452 (ASN CBJ0022492) A - Distribution Systems

1

87439452

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 2032mm Stroke

tongue, Start Serial: CBJ022492

1шт.

2

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

Included in repair kit 87439972

1шт.

5

87439967

PISTON

tongue cyl

1шт.

6

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87439972

1шт.

7

87439970

SPACER

tongue cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87439972

1шт.

9

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87439972

1шт.

10

NSS

NOT SOLD SEPARAT

BUFFER SEAL

1шт.

Included in repair kit 87439972

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87439972

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP RING

1шт.

Included in repair kit 87439972

1шт.

13

87439971

PISTON ROD/GLAND

head, front

1шт.

14

NSS

NOT SOLD SEPARAT

ROD SEAL

1шт.

Included in repair kit 87439972

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 87439972

1шт.

16

87439969

ROD

assembly tongue cylinder

1шт.

17

87439972

SEAL KIT

tongue

1шт.

18

NSS

NOT SOLD SEPARAT

BACKUP RING

2шт.

Included in repair kit 87439972

1шт.

19

87447796

INSERT

locking

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING

1шт.

100

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
