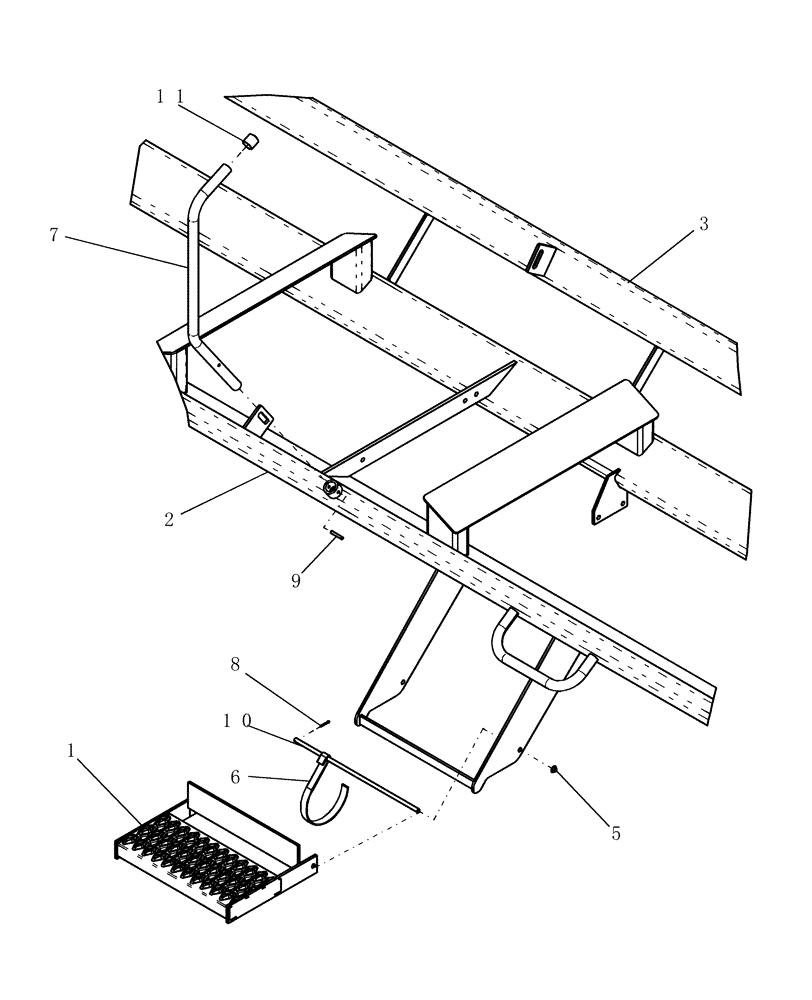

Запчасти Case IH 1200PT (E.30.A[03]) - BULK FILL - STEP AND RAIL (ASN CBJ025654) E - Body and Structure

1

87460239

STEP

bulk fill

2шт.

2

87456942

SUPPORT

front tank assembly

1шт.

3

87460787

SUPPORT

bulk fill main frame

1шт.

5

595787

PUSH-ON NUT

push 3/8" znd

2шт.

6

86990466

SUPPORT

air hose

2шт.

7

87456816

HANDLE

bulk fill grip

2шт.

8

80756

COTTER PIN,1/8" x 3/4"

2шт.

9

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

2шт.

10

87460243

ROD

step pivot

2шт.

11

87455997

CAP

vinyl 1" id x 1" lg

2шт.
