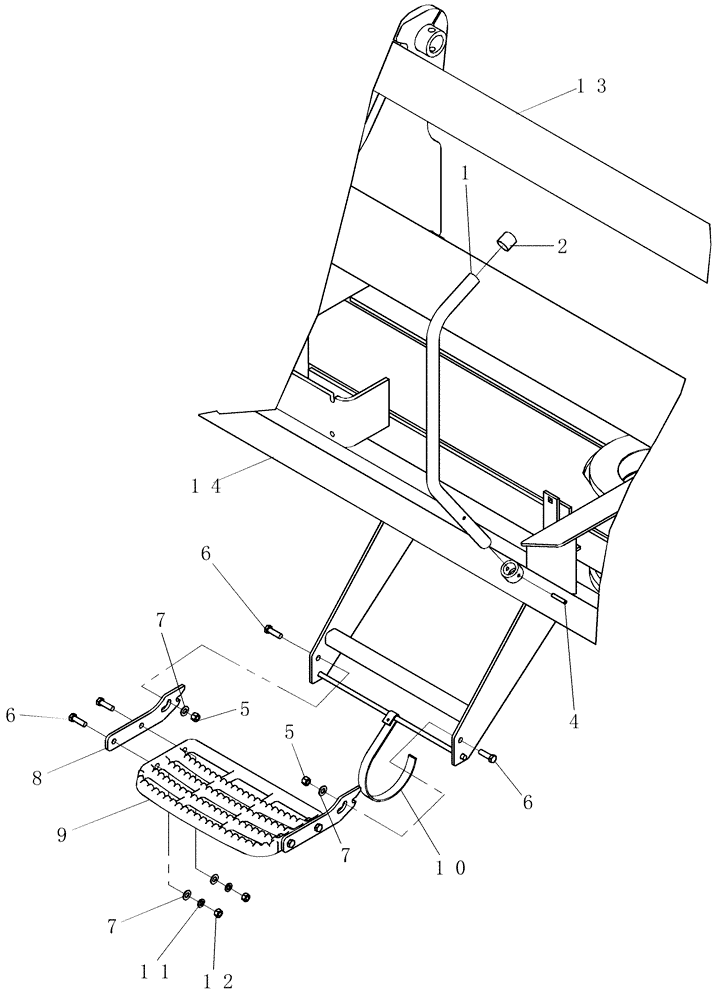

Запчасти Case IH 1200PT (E.30.A[02]) - BULK FILL - STEP AND RAIL (BTW CBJ022252 & CBJ025653) E - Body and Structure

1

87456816

HANDLE

bulk fill grip

2шт.

1

87456708

HANDLE

bulk fill grip

2шт.

2

87455997

CAP

vinyl 1" id x 1" lg

2шт.

4

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

2шт.

5

88902

NUT,3/8"-16

30шт.

6

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

14шт.

7

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

30шт.

8

437546A1

BRACKET

step

4шт.

9

257375A1

STEP

cast alum tractor lower

2шт.

10

86990466

SUPPORT

air hose

2шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

12

9628503

NUT,3/8"-16, G5

8шт.

13

433950A1

SUPPORT

RE tank

1шт.

14

433952A1

SUPPORT

FR tank

1шт.
