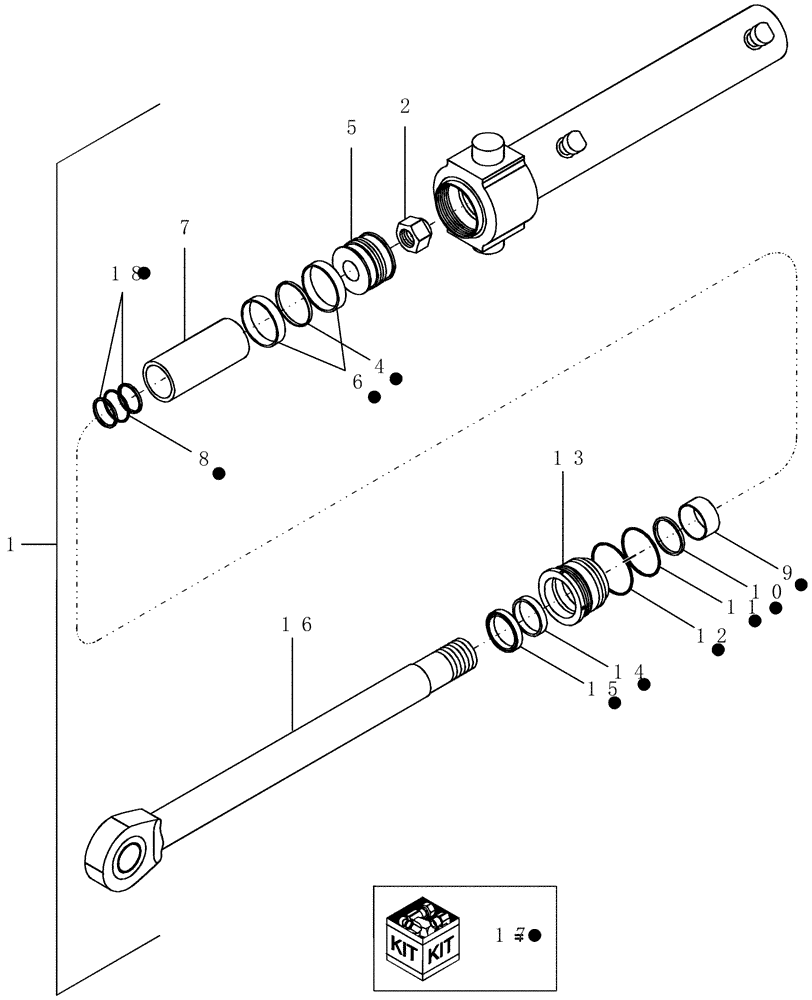

Запчасти Case IH 1200PT (A.10.A[07]) - HYDRAULIC CYLINDER - 86991010 (BSN CBJ0022491) A - Distribution Systems

1

86991010

HYDRAULIC CYLINDER

3 1/4" x 80" 3000 PSI no pins, Serial Range: CBJ0018184-CBJ022483

1шт.

1

87439452

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 2032mm Stroke

tongue, Start Serial: CBJ022492

1шт.

2

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

Included in repair kit 87405840

1шт.

5

87407137

PISTON

3 1/4" bore

1шт.

6

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87405840

1шт.

7

87407139

SPACER

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87405840

1шт.

9

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87405840

1шт.

10

NSS

NOT SOLD SEPARAT

BUFFER SEAL

1шт.

Included in repair kit 87405840

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87405840

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP RING

1шт.

Included in repair kit 87405840

1шт.

13

128770A2

CYLINDER END CAP

packing 3 1/4" bore

1шт.

14

NSS

NOT SOLD SEPARAT

ROD SEAL

1шт.

Included in repair kit 87405840

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 87405840

1шт.

16

87407135

ROD

assembly 2 1/4" diameter Nitrosteel

1шт.

17

87439972

SEAL KIT

hyd cyl service 3 1/4" Hyco 2 1/4" rod

1шт.

18

NSS

NOT SOLD SEPARAT

BACKUP RING

2шт.

Included in repair kit 87405840

1шт.

100

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

Not Shown

1шт.
