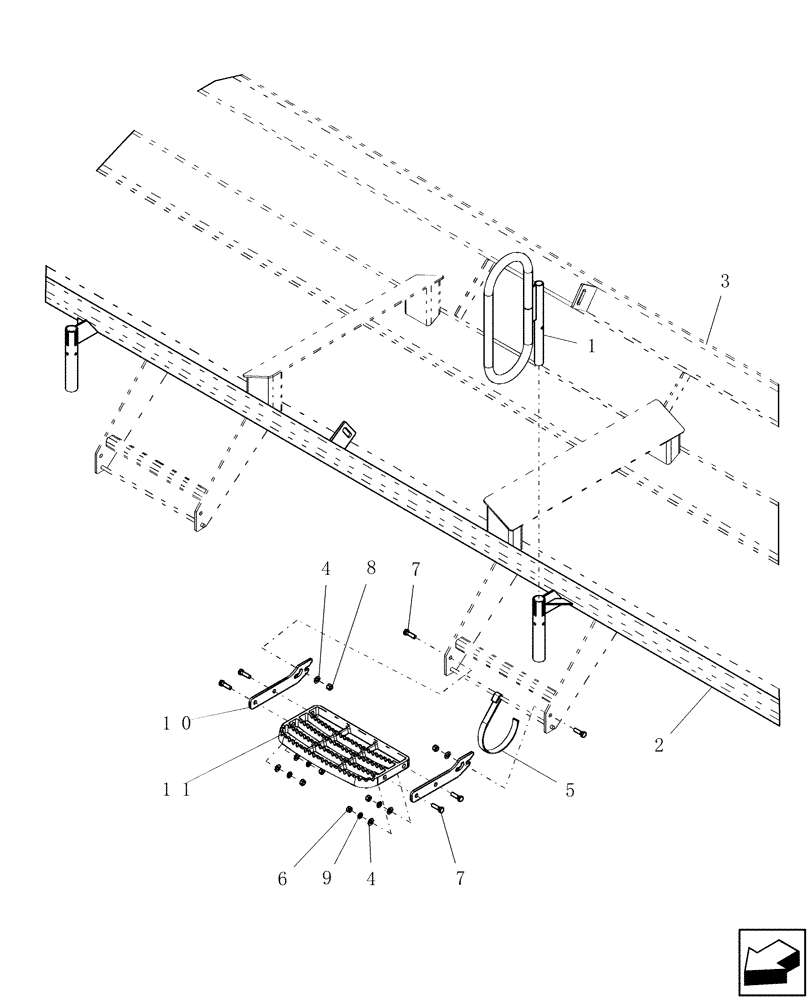

Запчасти Case IH 1200PT (E.30.A[01]) - BULK FILL - STEP AND RAIL (BSN CBJ022251) E - Body and Structure

1

438224A1

HANDLE

bulk fill step assembly

1шт.

2

87409626

SUPPORT

front tank assembly

1шт.

Includes decals

1шт.

2

86983407

DECAL

handle caution

2шт.

Part of FR Tank Support Assembly P/N 87409626

1шт.

2

87423936

DECAL

trip hazard warning

1шт.

Part of FR Tank Support Assembly P/N 87409626

1шт.

2

87527153

DECAL

TRIP HAZARD WARNING French

1шт.

3

433950A1

SUPPORT

RE tank

1шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

5

86990466

SUPPORT

air hose

1шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

8

88902

NUT,3/8"-16

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

437546A1

BRACKET

step

2шт.

11

257375A1

STEP

cast alum tractor lower

1шт.
