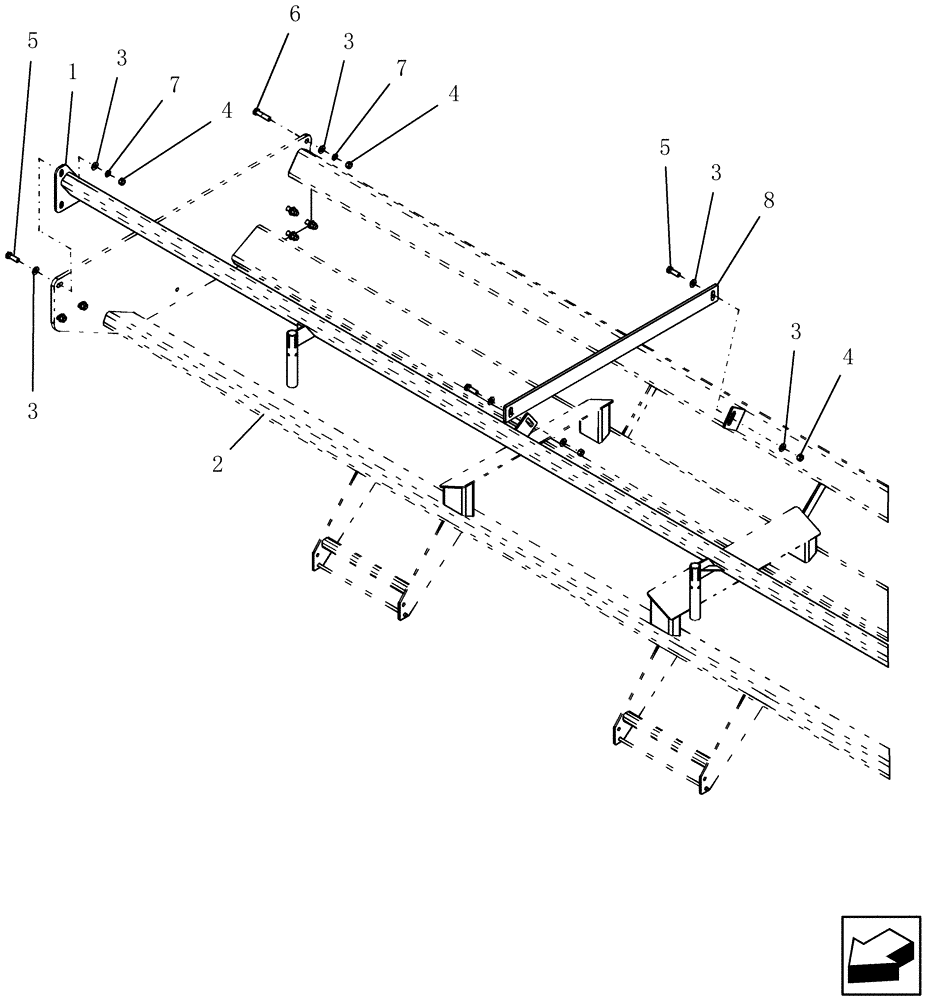

Запчасти Case IH 1200PT (E.10.B[01]) - BULK FILL - STRUCTURE MOUNTING (BSN CBJ022251) E - Body and Structure

1

87409626

SUPPORT

front tank assembly

1шт.

Includes decals

1шт.

1

86983407

DECAL

handle caution

2шт.

Part of FR Tank Support Assembly P/N 87409626

1шт.

1

87423936

DECAL

trip hazard warning

1шт.

Part of FR Tank Support Assembly P/N 87409626

1шт.

1

87527153

DECAL

TRIP HAZARD WARNING French

1шт.

2

433950A1

SUPPORT

RE tank

1шт.

12 row and 16 row planters

1шт.

2

86989665

SUPPORT

tank assembly

1шт.

12/23 row and 16/31 row planters

1шт.

3

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

30шт.

4

280431

NUT,1/2"-13, G5

22шт.

5

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

6

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

14шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

20шт.

8

433939A1

BAR

tank structure front

1шт.
