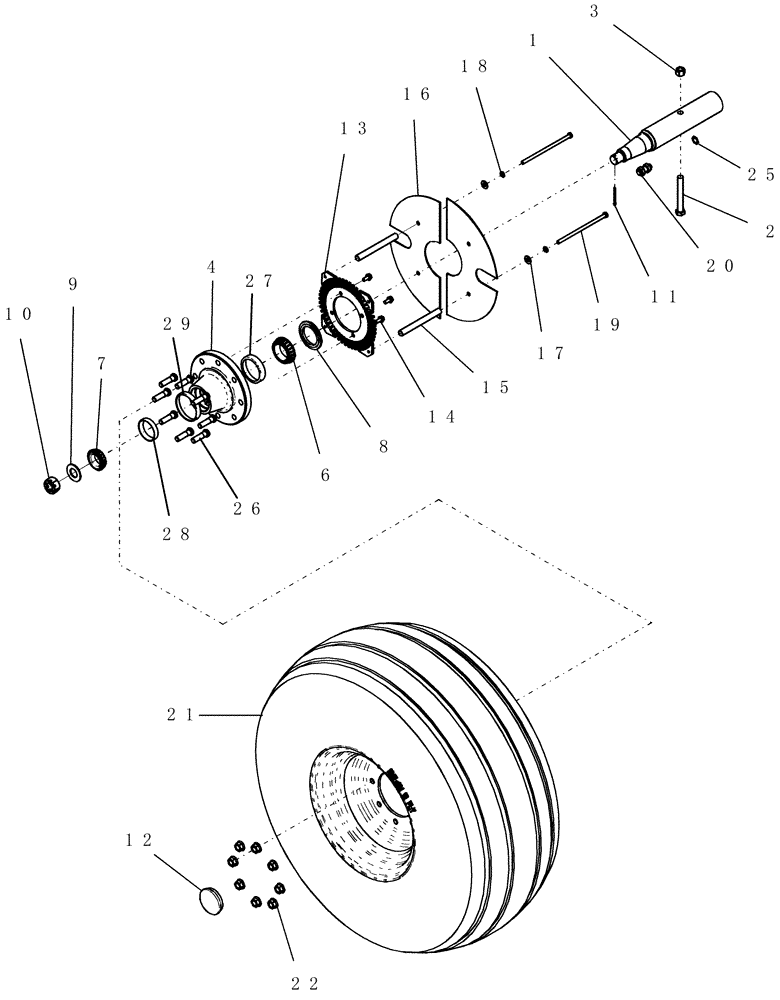

Запчасти Case IH 1200PT (D.13.B[02]) - CARRYING WHEELS - MAIN FRAME, 12 ROW, 16 ROW, 12/23 ROW, 16/31 ROW & 24 ROW (ASN CBJ0001893) D - Travel

1

87454025

STUB AXLE/STEERING S

8 bolt - 2.73" x 17.36"

4шт.

2

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

3

85700693

NUT,5/8" - 11, Gr C

4шт.

4

427953A1

HUB

guide wheel

4шт.

6

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

#JLM506849 NTN

4шт.

7

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

4шт.

8

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

oil 3.77"od x 2.49"id

4шт.

9

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

4шт.

10

86632555

SLOTTED NUT,1 1/8"-12, G5

4шт.

11

87400

COTTER PIN,3/16" x 2"

4шт.

12

560950R1

HUB CAP

dust 3 1/8" od

4шт.

13

87419220

SPROCKET

LC 50 tooth speed sensor

2шт.

14

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

8шт.

15

87424040

SPACER

5/8"id x 23/32"od x 6 5/8"

8шт.

16

427959A1

COVER

wheel

4шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

19

86505981

BOLT,Hex, 3/8" - 16 x 8", Gr 5

8шт.

20

324049A1

SENSOR

speed hall

2шт.

21

PL

PROCURE LOCALLY

TIRE 16.5LX16.1SL 10PR

4шт.

12 row and 16 row planters

1шт.

21

PL

PROCURE LOCALLY

TIRE 16.5LX16.1SL 14PR

4шт.

12/23 row, 16/31 row and 24 row planters

1шт.

21

1270628C1

RIM

W14x16.1 8-hole - 2 9/32'' outset, Serial Range: -CBJ0018541

4шт.

12 row and 16 row planters

1шт.

21

86991475

WHEEL

W14" x 16" 8-hole 2 9/32" outset, Start Serial: CBJ0018542

4шт.

12/23 row, 16/31 row and 24 row planters

1шт.

12 row and 16 row planters

1шт.

21

410703A1

VALVE

tire stem TR/511

4шт.

22

87010568

FLANGE NUT,Flg, 5/8"-18, G5

32шт.

23

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

Not Shown

1шт.

24

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

Not Shown

1шт.

25

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.

26

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

stud 5/8" -18 GR8 2 1/4" long

8шт.

27

625743C1

BEARING CUP,90mm OD x 18.5mm W

#JLM506810 roller taper

1шт.

28

663558R1

BEARING CUP

#LM501310

1шт.

29

169328C1

SLEEVE

wear 3.762" od 3.5" id

1шт.
