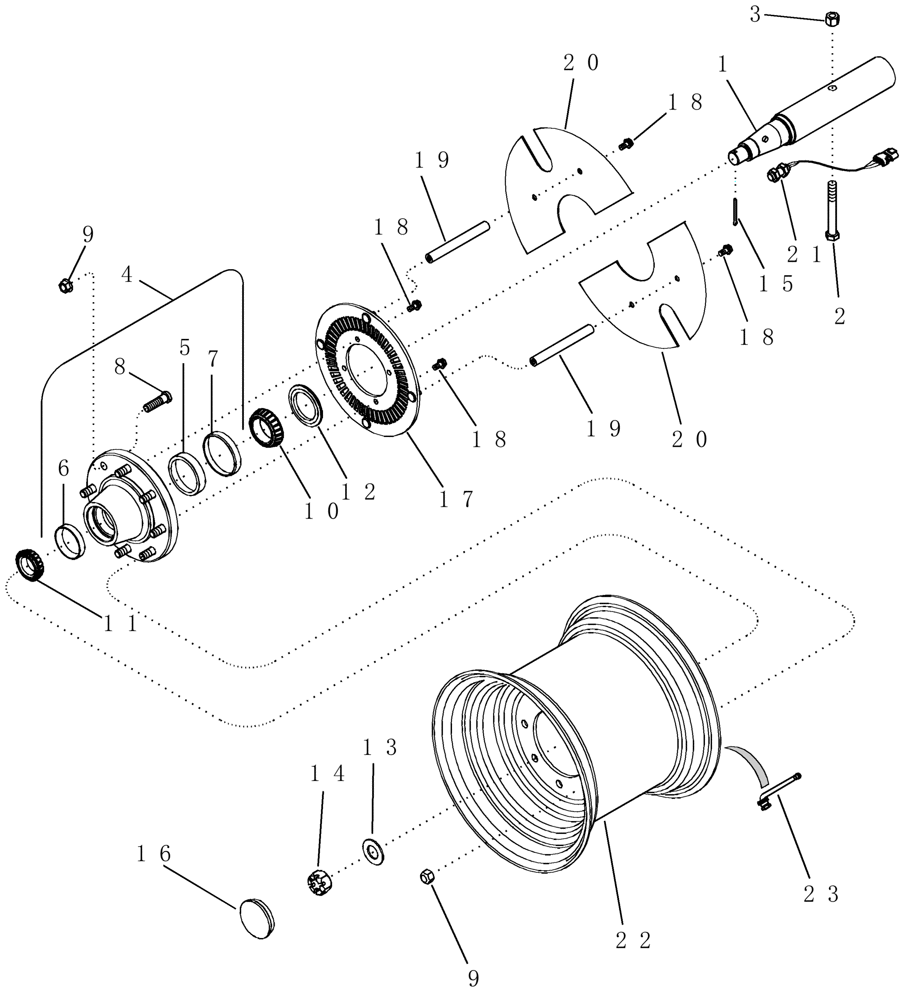

Запчасти Case IH 1200PT (D.13.B[01]) - CARRYING WHEELS - MAIN FRAME, 12 ROW & 16 ROW (BSN CBJ0001892) D - Travel

1

87454025

STUB AXLE/STEERING S

8 bolt - 2.73" x 17.36"

4шт.

2

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

3

85700693

NUT,5/8" - 11, Gr C

4шт.

4

427953A1

HUB

guide wheel

4шт.

5

625743C1

BEARING CUP,90mm OD x 18.5mm W

#JLM506810 roller taper

4шт.

6

663558R1

BEARING CUP

#LM501310

4шт.

7

169328C1

SLEEVE

wear 3.762" od 3.5" id

4шт.

8

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

stud 5/8" -18 GR8 2 1/4" long

32шт.

9

87010568

FLANGE NUT,Flg, 5/8"-18, G5

32шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

#JLM506849 NTN

4шт.

11

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

4шт.

12

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

oil 3.77"od x 2.49"id

4шт.

13

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

4шт.

14

86632555

SLOTTED NUT,1 1/8"-12, G5

4шт.

15

87400

COTTER PIN,3/16" x 2"

4шт.

16

560950R1

HUB CAP

dust 3 1/8" od

4шт.

17

356101A1

SPROCKET

assembly lc 50 tooth speed sensor, Serial Range: -CBJ022007

2шт.

17

87419220

SPROCKET

LC 50 tooth speed sensor, Start Serial: CBJ022008

2шт.

18

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

16шт.

19

427957A1

SPACER

speed sensor

8шт.

20

427959A1

COVER

wheel

4шт.

21

324049A1

SENSOR

speed hall

2шт.

22

1270628C1

RIM

W14x16.1 8-hole - 2 9/32'' outset

4шт.

23

410703A1

VALVE

tire stem TR/511

4шт.

24

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
