(A.50.A[40]) - ELECTRICAL - DUST PLUGS FOR NO MARKER OPTION

Запчасти Case IH 1200PT (A.50.A[40]) - ELECTRICAL - DUST PLUGS FOR NO MARKER OPTION A - Distribution Systems

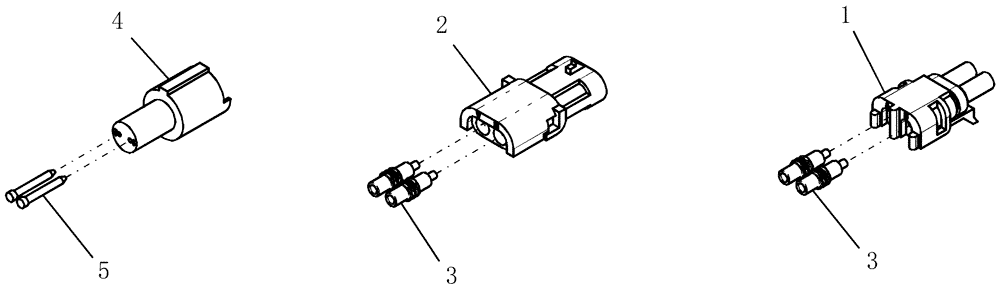

Схема запчастей Case IH 1200PT - (A.50.A[40]) - ELECTRICAL - DUST PLUGS FOR NO MARKER OPTION A - Distribution Systems
3
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

2

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.

3

225127C1

PLUG

cavity, green rubber

8шт.

4

1160577C1

ELEC CONNECTOR,Female, 2 Pin

CONNECTOR 2 contact

1шт.

5

NSS

NOT SOLD SEPARAT

Cavity Plug

2шт.
