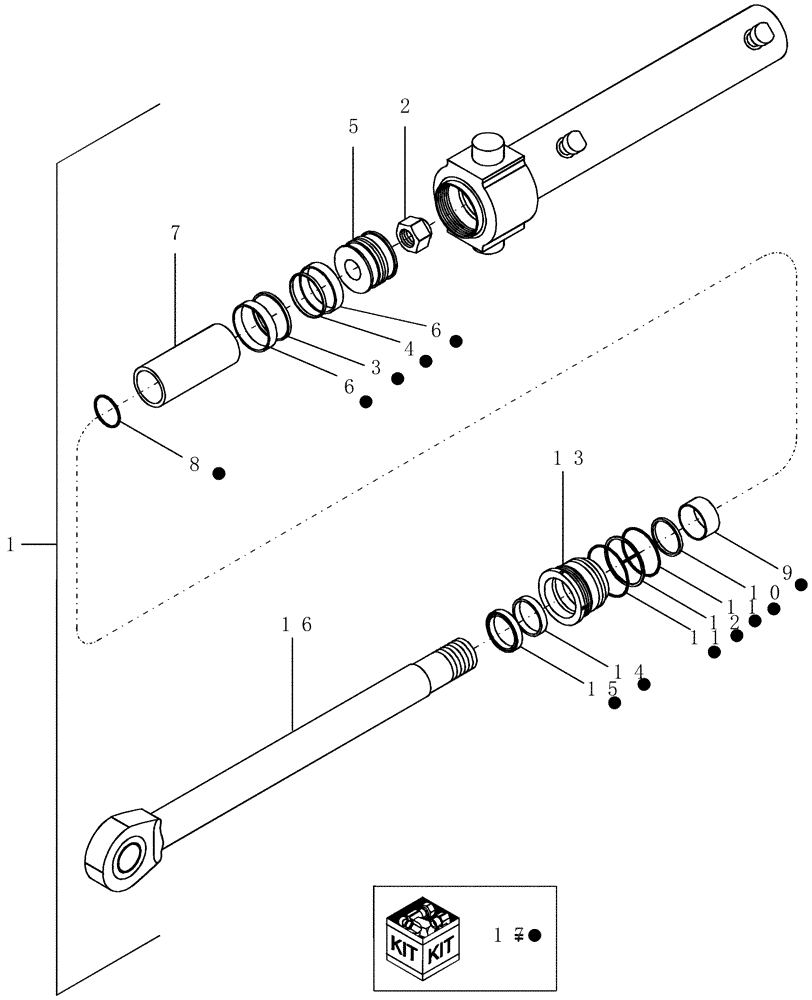

Запчасти Case IH 1200PT (A.10.A[06]) - HYDRAULIC CYLINDER - 395272A2 A - Distribution Systems

1

395272A2

HYDRAULIC CYLINDER

telescoping tongue, Serial Range: -PNL001100

1шт.

2

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON SEAL EXPANDER

1шт.

Included in repair kit 396111A1

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

Included in repair kit 396111A1

1шт.

5

396108A1

PISTON ROD/GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 396111A1

1шт.

7

387102A1

SPACER

cyl rod

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 396111A1

1шт.

9

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 396111A1

1шт.

10

NSS

NOT SOLD SEPARAT

BUFFER SEAL

1шт.

Included in repair kit 396111A1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 396111A1

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP RING

1шт.

Included in repair kit 396111A1

1шт.

13

396109A1

CYLINDER END CAP

head, front

1шт.

14

NSS

NOT SOLD SEPARAT

ROD SEAL

1шт.

Included in repair kit 396111A1

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 396111A1

1шт.

16

396107A1

PISTON ROD

1шт.

17

396111A1

SEAL KIT

kit

1шт.
