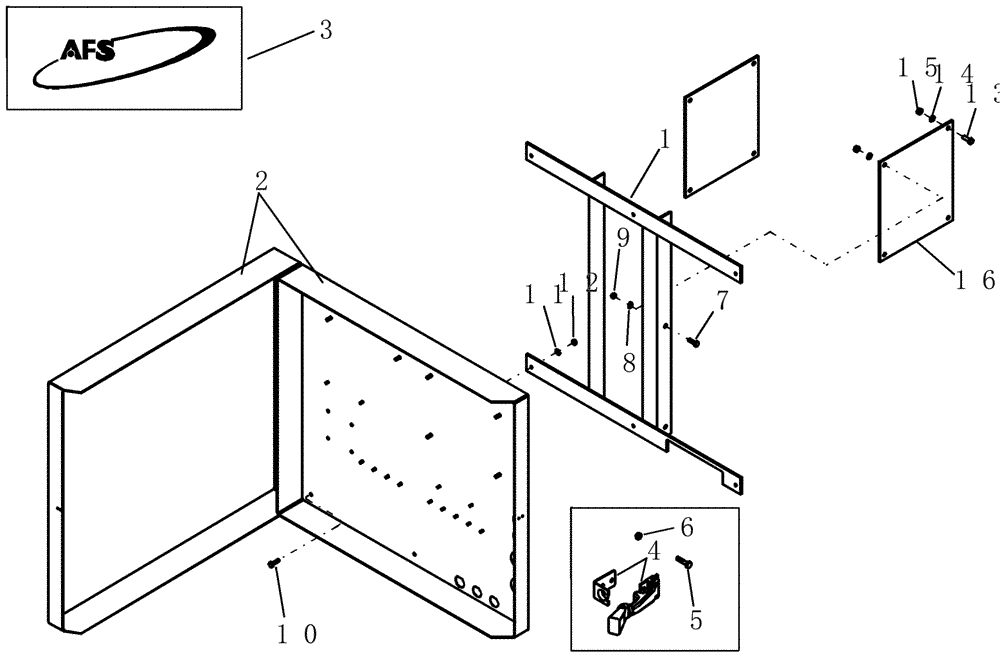

Запчасти Case IH 1200PT (A.50.A[34]) - ELECTRONICS COMPARTMENT A - Distribution Systems

1

427771A1

BRACKET

panel mount

1шт.

2

427769A1

PANEL

electrical AFS controls

1шт.

3

239504A1

DECAL

AFS

1шт.

4

441222A1

LATCH

assembly rubber draw t-handle, SOUTHCO P/N 37-20-07

1шт.

5

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

4шт.

6

88458

NUT,#6 - 32, Gr 5

4шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

9

9628503

NUT,3/8"-16, G5

4шт.

10

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

11

80682

LOCK WASHER,1/4"

6шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

15

9628503

NUT,3/8"-16, G5

8шт.

16

87451584

MOUNTING PLATE

2шт.
