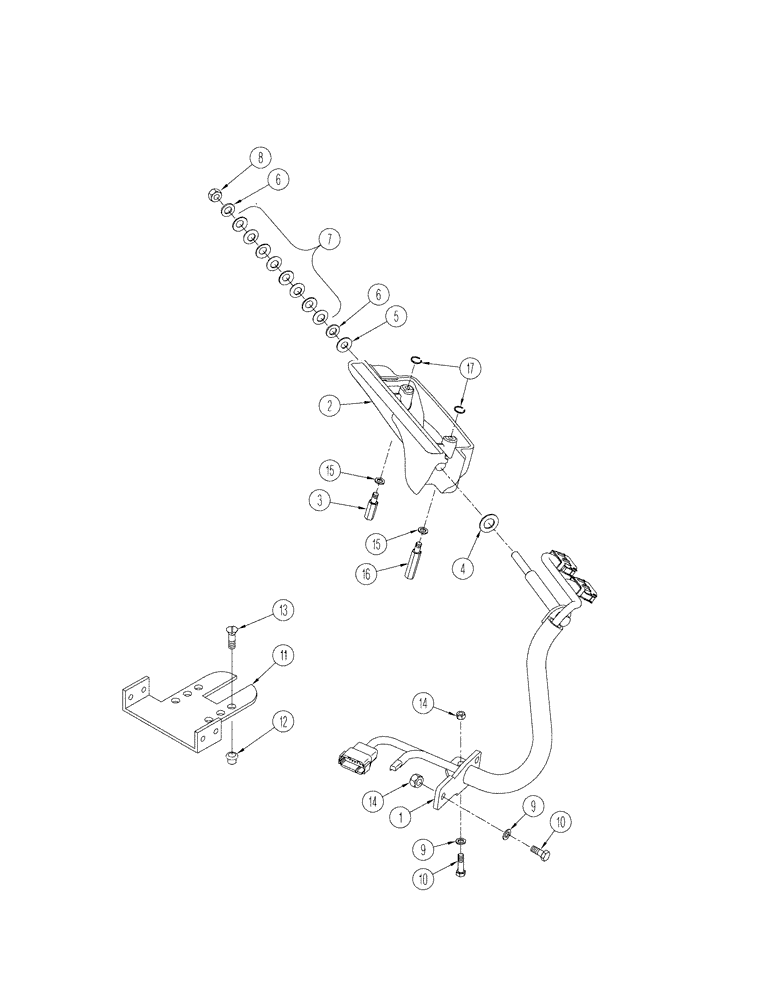

Запчасти Case IH 1200PT (A.50.A[32]) - ADVANCED FARMING SYSTEMS MOUNTING A - Distribution Systems

1

405032A1

TUBE

AFS monitor support

1шт.

2

366774A2

SUPPORT

monitor-machined

1шт.

3

406719A2

SCREW,M5 x 27mm

AFS display/short

1шт.

4

375696A1

WASHER

fibre

1шт.

5

375695A1

WASHER

fibre

1шт.

6

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

7

375697A1

BELLEVILLE WASHER

belleville

8шт.

8

87030549

NUT,M10 x 1.5, Cl 10

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

80043233

SCREW

Hex, M8 x 20, 10.9

3шт.

11

279293A2

SUPPORT

bracket assembly, AFS beacon antenna

1шт.

12

D135342

ISOLATOR

mount

4шт.

13

86511978

SCREW,Phillips Drive, Flat HD, 5/16" x 1"

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

3шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

406720A2

SCREW,M5 x 27mm

AFS display/long

1шт.

17

86632599

CIRCLIP,M5

2шт.
