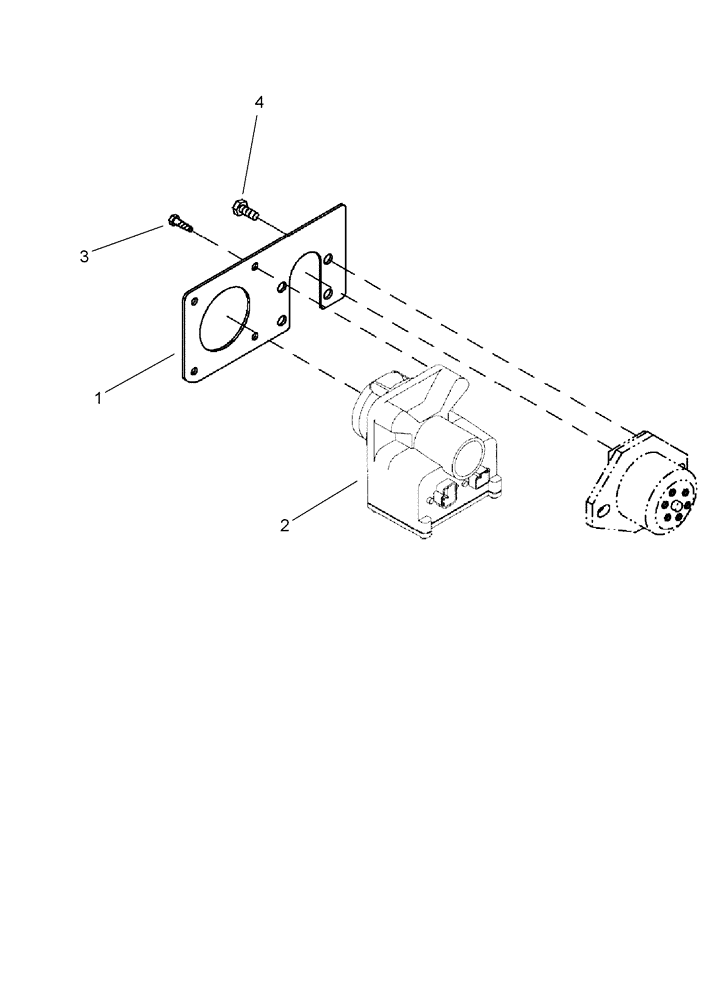

Запчасти Case IH 1200PT (A.50.A[24]) - AFS IMPLEMENT CONNECTOR MOUNTING A - Distribution Systems

1

298617A1

PLATE

mount, implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement jumper board

1шт.

3

86624122

SELF-TAP SCREW,Hex Hd, M6.3 x 16

4шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

Included in the AFS display installation kit, but are not shown

1шт.

6

86632553

BOLT

square head 5/16"-18 x 1 1/2", G2

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

8

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

Included in the AFS display installation kit, but are not shown

1шт.

9

19268

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

Included in the AFS display installation kit, but are not shown

1шт.
