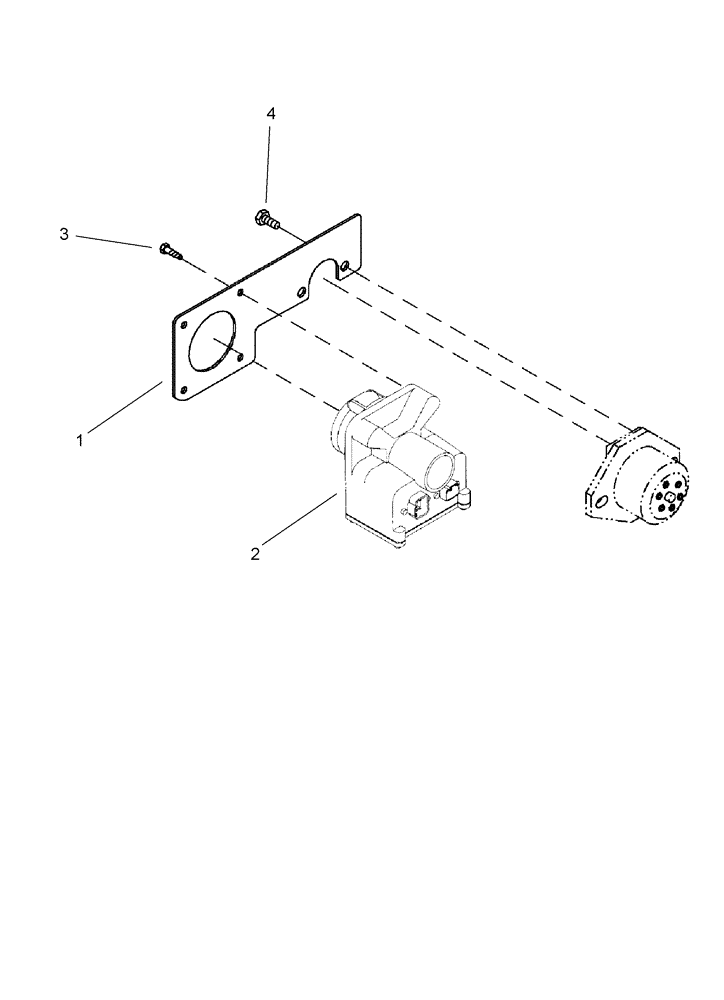

Запчасти Case IH 1200PT (A.50.A[23]) - AFS IMPLEMENT CONNECTOR MOUNTING, 4 WHEEL DRIVE TRACTORS A - Distribution Systems

1

320965A1

SUPPORT

implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement jumper board

1шт.

3

86624122

SELF-TAP SCREW,Hex Hd, M6.3 x 16

4шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

5

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

Included in the AFS display installation kit, but are not shown

1шт.

6

245854A1

CLIP

adhesive

1шт.

Included in the AFS display installation kit, but are not shown

1шт.

7

86632553

BOLT

square head 5/16"-18 x 1 1/2", G2

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

9

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

1шт.

Included in the AFS display installation kit, but are not shown

1шт.

10

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

11

829-1310

NUT,M10, Cl 10

4шт.

Included in the AFS display installation kit, but are not shown

1шт.

12

19268

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

Included in the AFS display installation kit, but are not shown

1шт.
