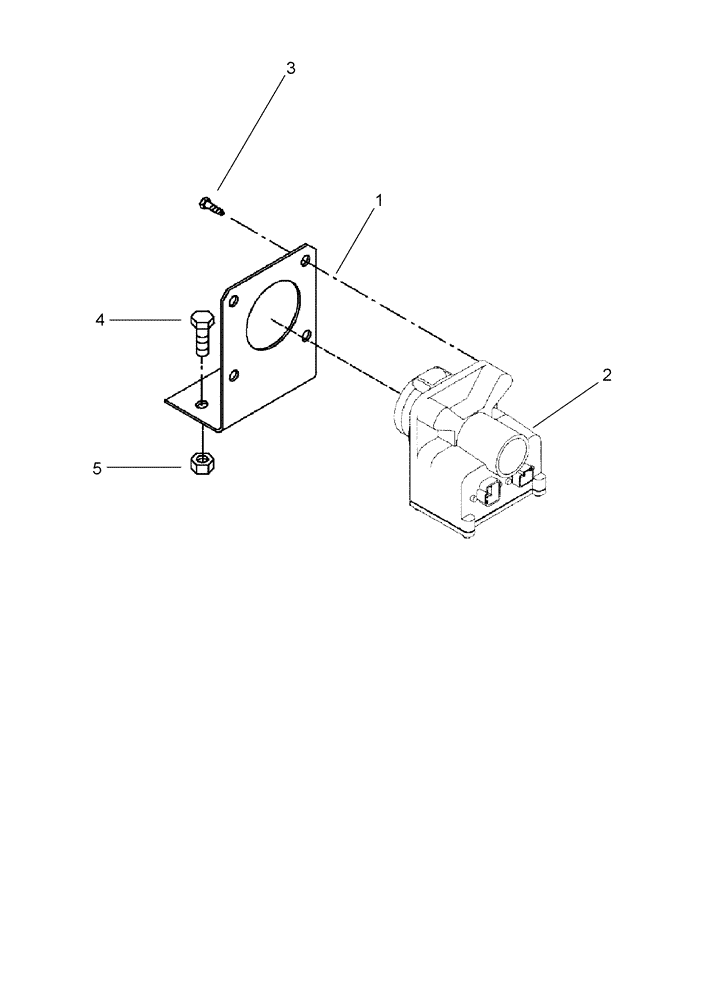

Запчасти Case IH 1200PT (A.50.A[22]) - AFS IMPLEMENT CONNECTOR MOUNTING, ROW CROP TRACTORS A - Distribution Systems

1

311249A1

SUPPORT

implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement jumper board

1шт.

3

86624122

SELF-TAP SCREW,Hex Hd, M6.3 x 16

4шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

5

86500689

NUT,M10 x 1.5, Cl 10

2шт.

6

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

Included in the AFS display installation kit, but are not shown

1шт.

7

86632553

BOLT

square head 5/16"-18 x 1 1/2", G2

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

9

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

Included in the AFS display installation kit, but are not shown

1шт.

10

245854A1

CLIP

adhesive

2шт.

Included in the AFS display installation kit, but are not shown

1шт.

11

19268

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

Included in the AFS display installation kit, but are not shown

1шт.
