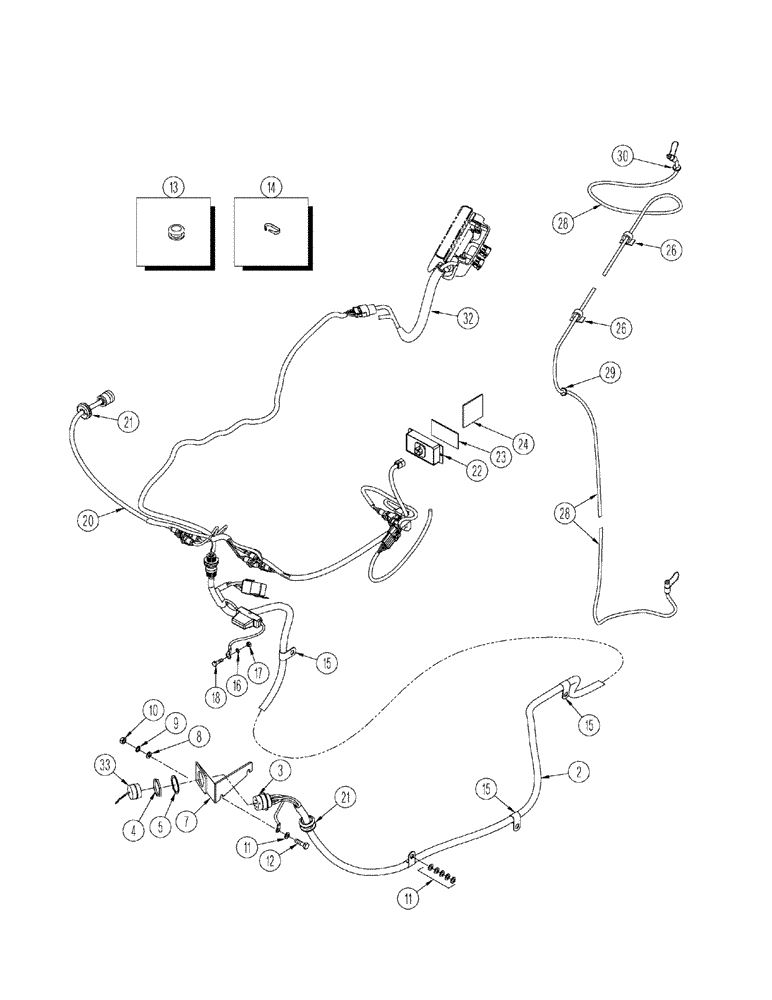

Запчасти Case IH 1200PT (A.50.A[21]) - HARNESS 405029A2 - ADVANCED FARMING SYSTEMS A - Distribution Systems

2

405029A2

HARNESS

AFS chassis

1шт.

3

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

4

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

1шт.

5

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

1шт.

7

405387A2

PLATE

bracket, AFS connector

1шт.

8

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

9

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

10

86500689

NUT,M10 x 1.5, Cl 10

2шт.

11

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

12

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

13

328265A1

GROMMET

1шт.

14

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

12шт.

15

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

2шт.

16

86509828

LOCK WASHER,M5

1шт.

17

86508813

NUT,M5, Cl 8

1шт.

18

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

1шт.

20

405030A2

HARNESS

AFS cab

1шт.

21

86632690

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

1шт.

22

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

23

406450A1

FASTENER

dual lock

2шт.

24

406449A1

FASTENER

velcro/AFS receiver

2шт.

26

245854A1

CLIP

adhesive

2шт.

28

405687A1

CABLE

AFS/GPS antenna receiver

1шт.

29

86624019

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

1шт.

30

86624019

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

1шт.

32

405032A1

TUBE

AFS monitor support

1шт.

33

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

34

GL-521

MOUNTING PARTS

implement receptacle

1шт.

Not Shown

1шт.
